Diagram Information and Instructions
>>
How to Read Wiring Diagrams
>>
Wiring Diagram
Wiring Diagram

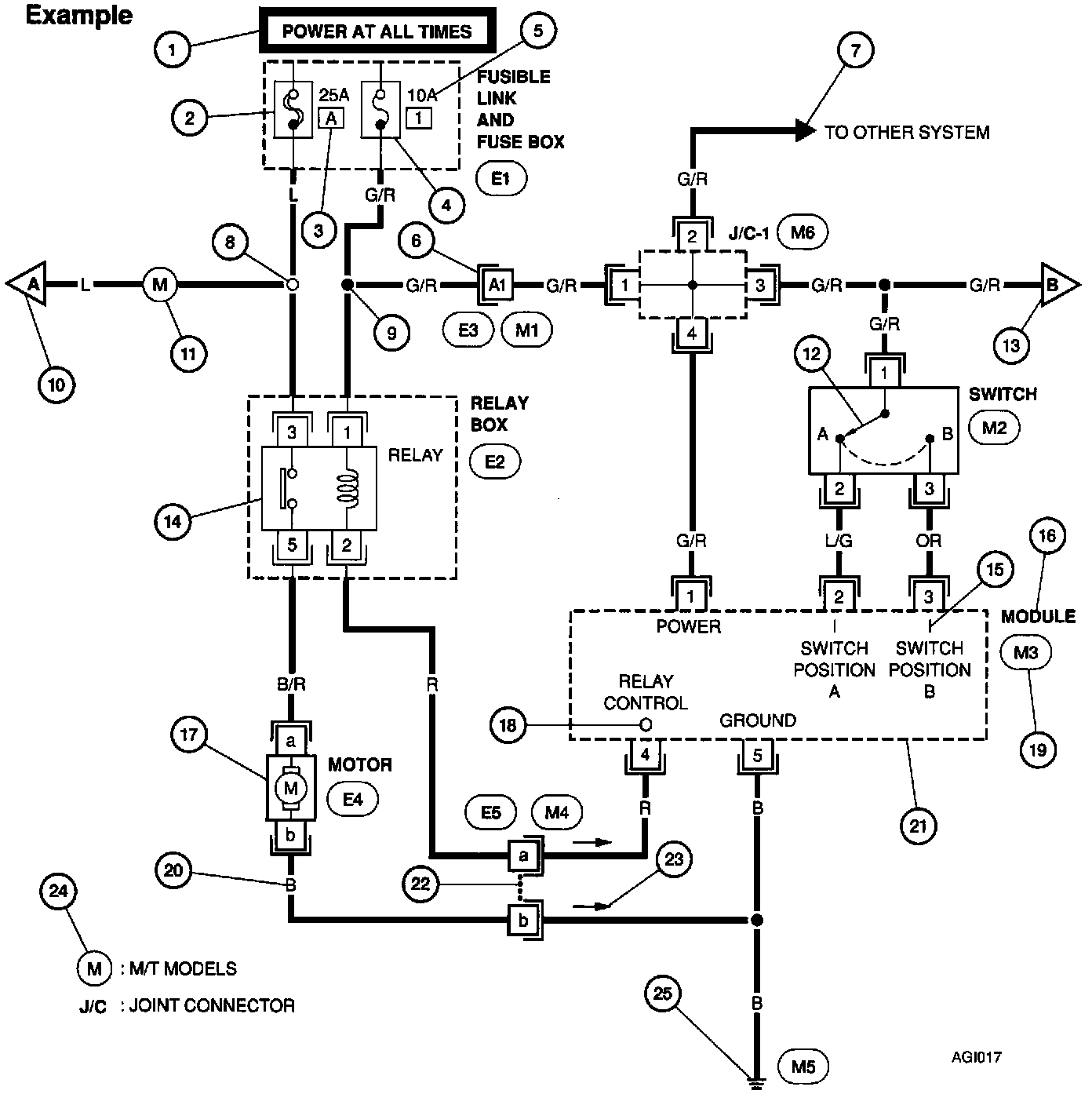

How To Read Wiring Diagrams:
Symbols used in wiring diagram are shown above.

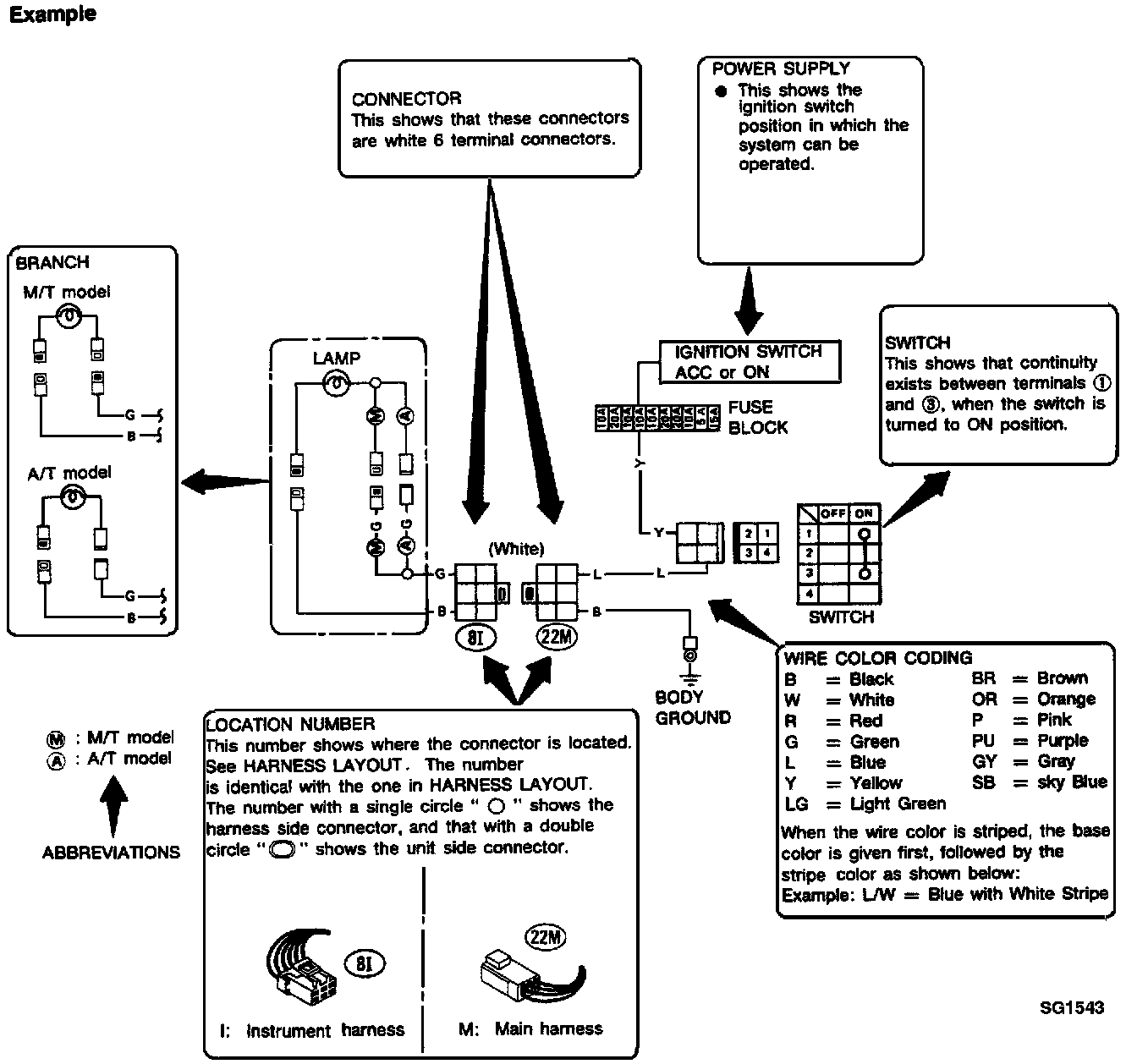

How To Read Wiring Diagrams:

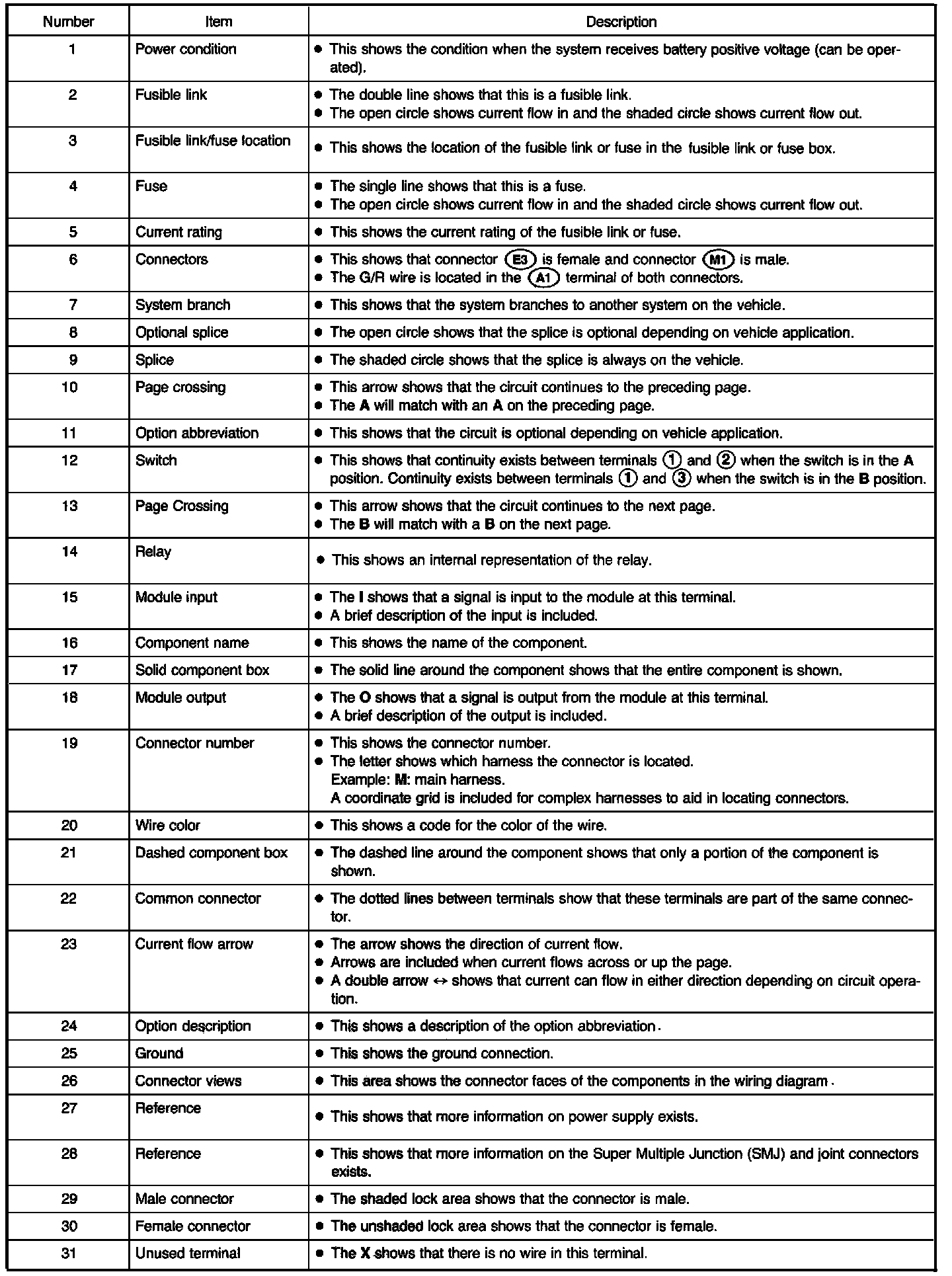

How To Read Wiring Diagrams:
