Diagnostic Troubleshooting Flow

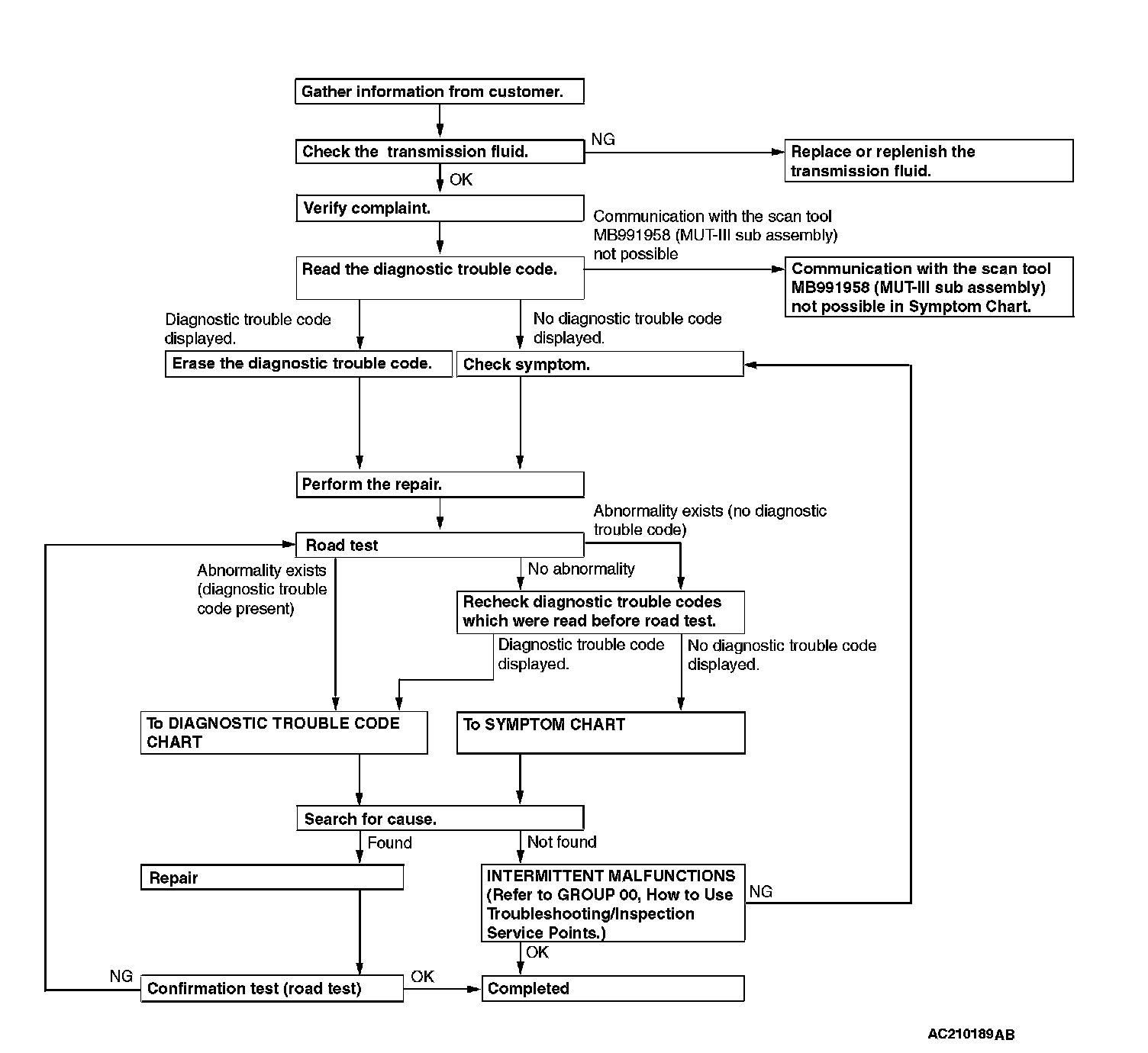

AUTOMATIC TRANSAXLE DIAGNOSIS
DIAGNOSTIC TROUBLESHOOTING FLOW
Diagnostic Troubleshooting Flow:
