Home
>>
Mitsubishi
>>
2006
>>
Eclipse V6-3.8L (6G75)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Transaxle

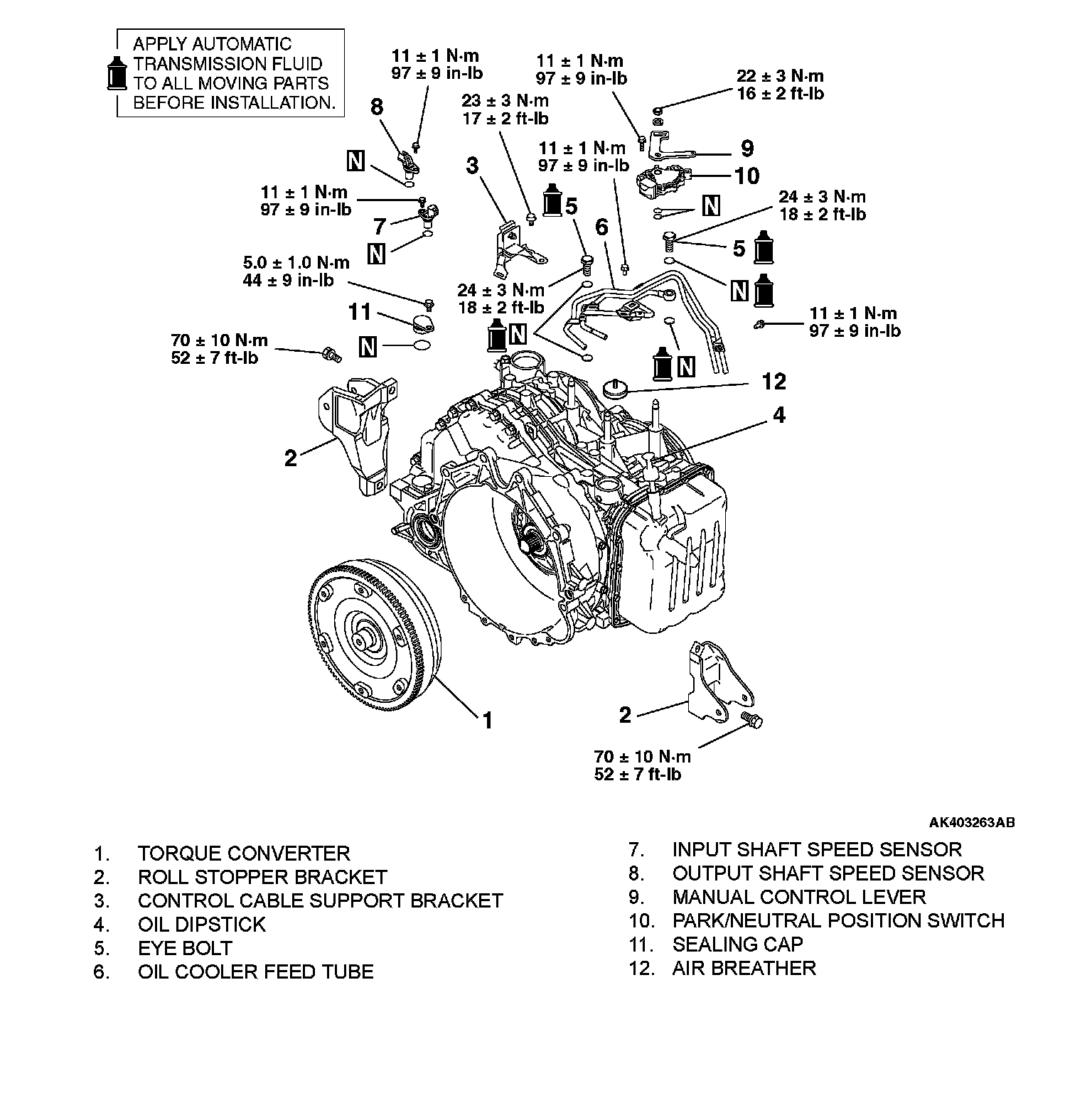

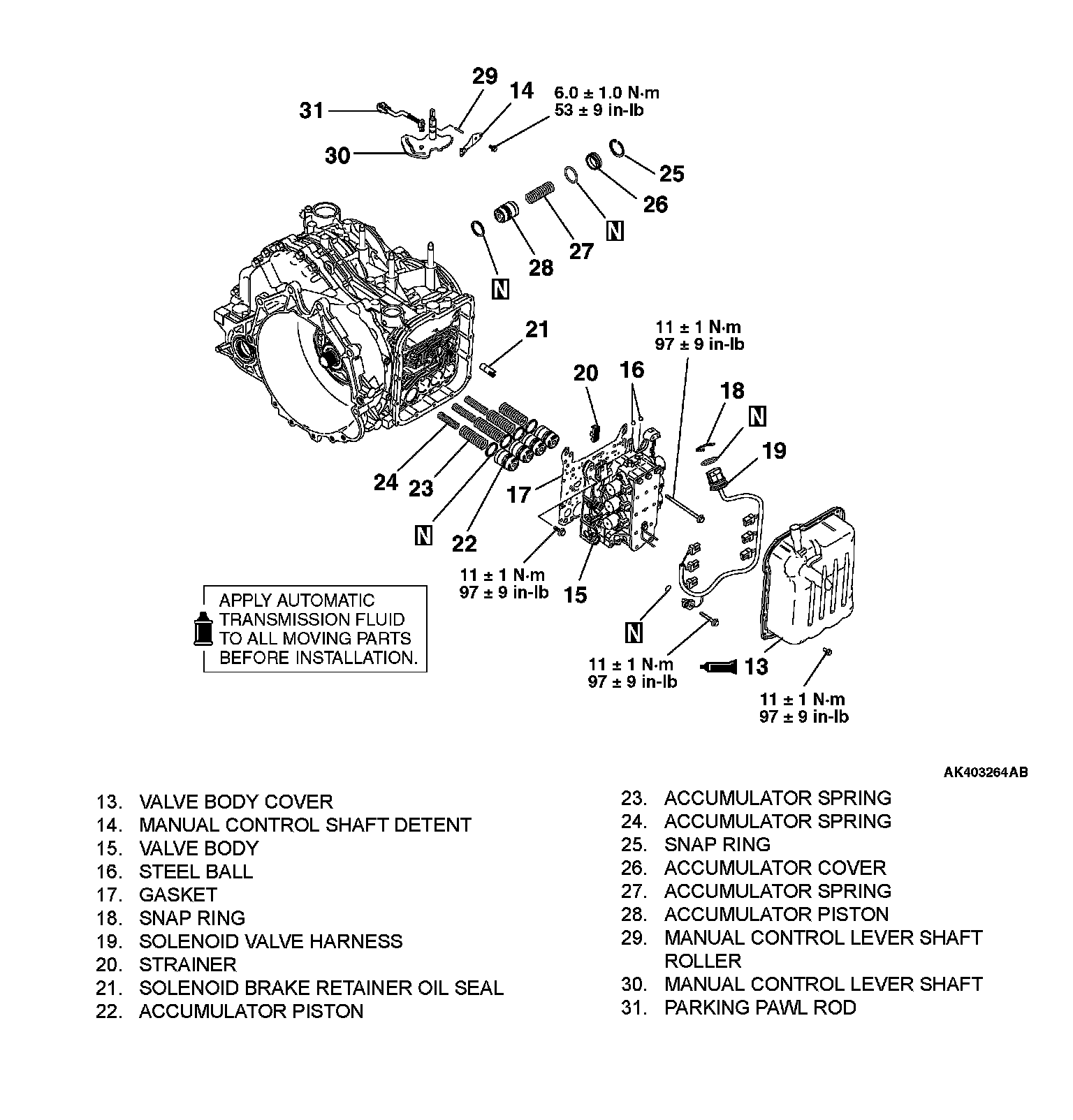

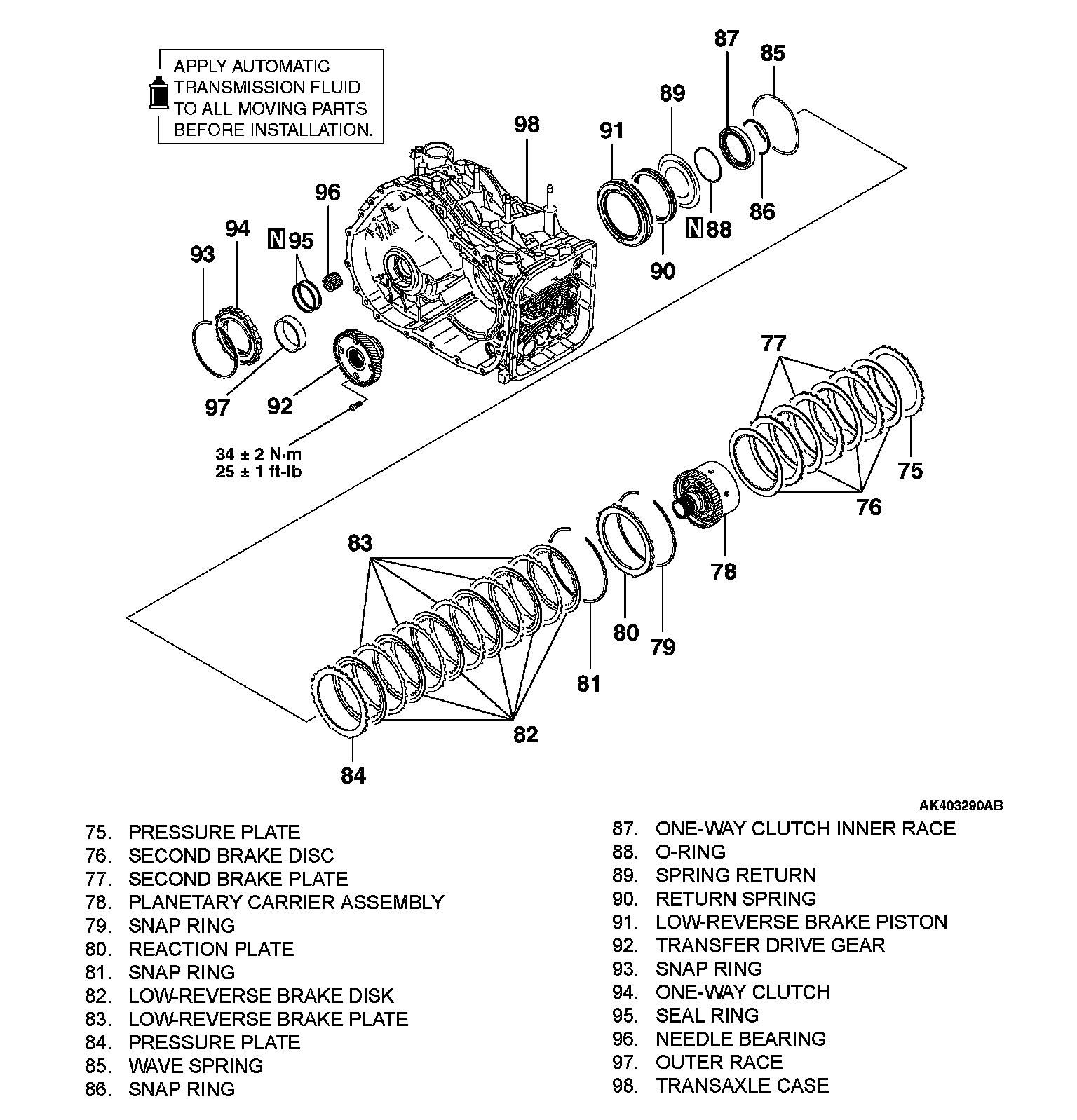

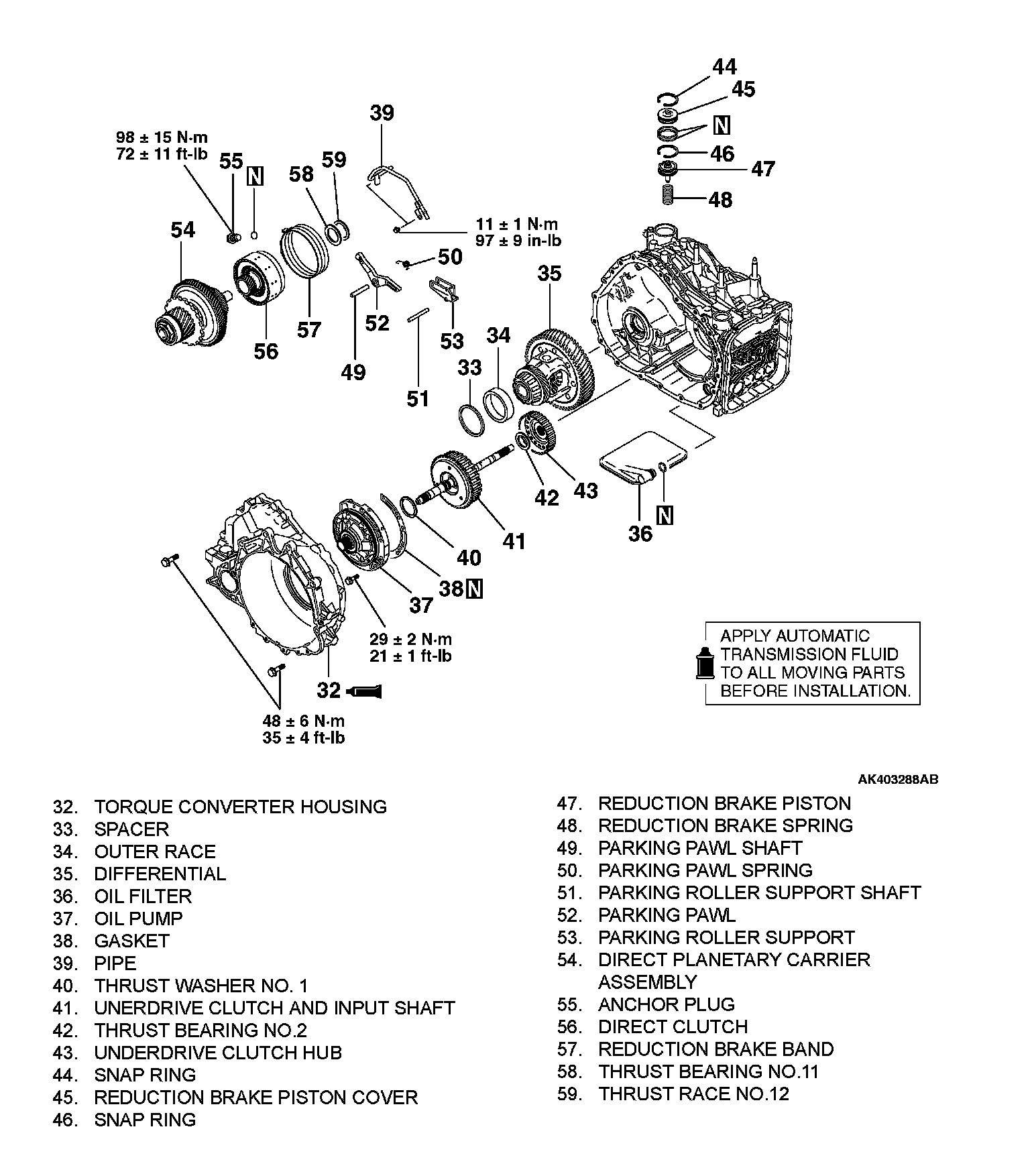

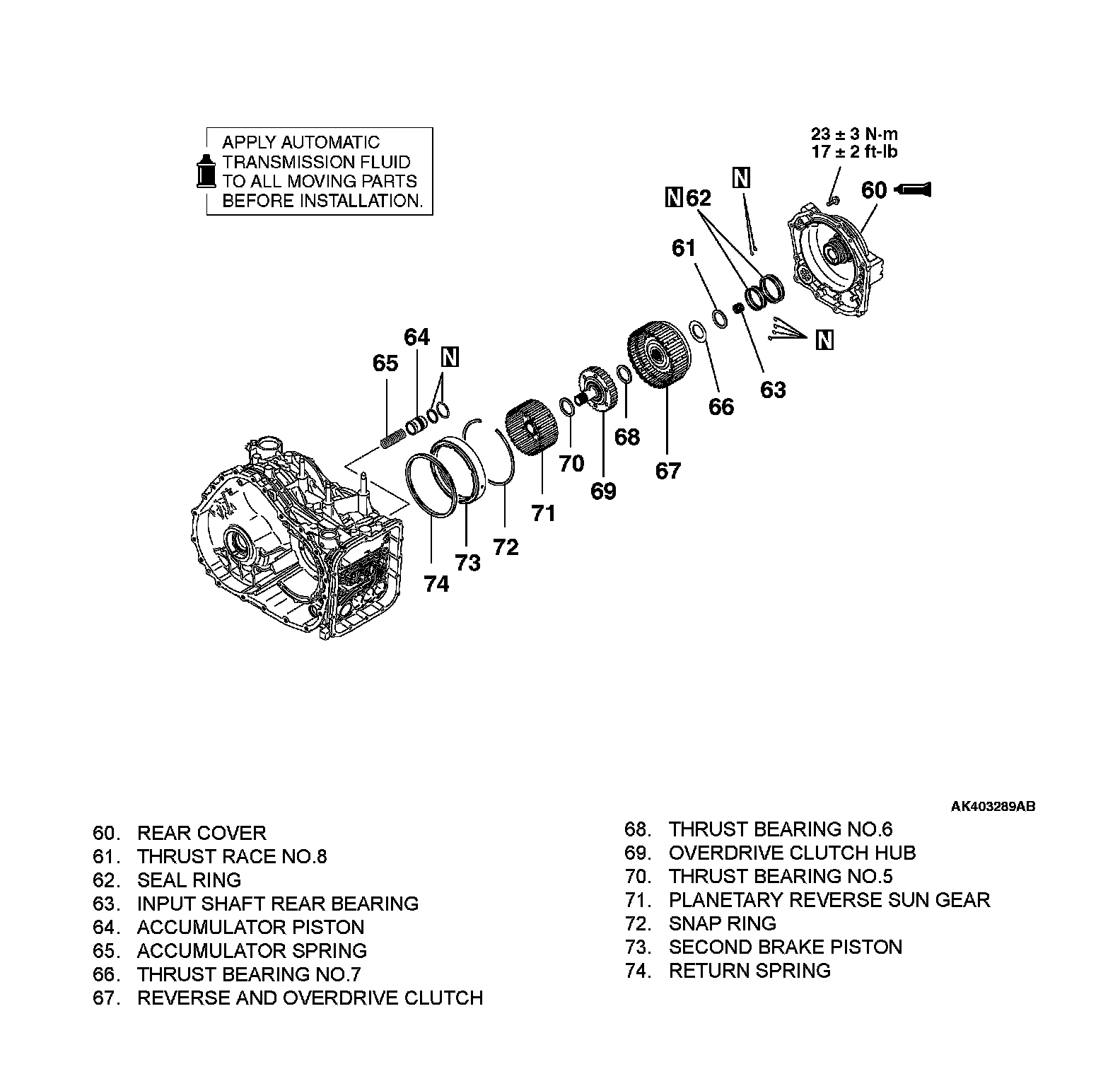

Transaxle

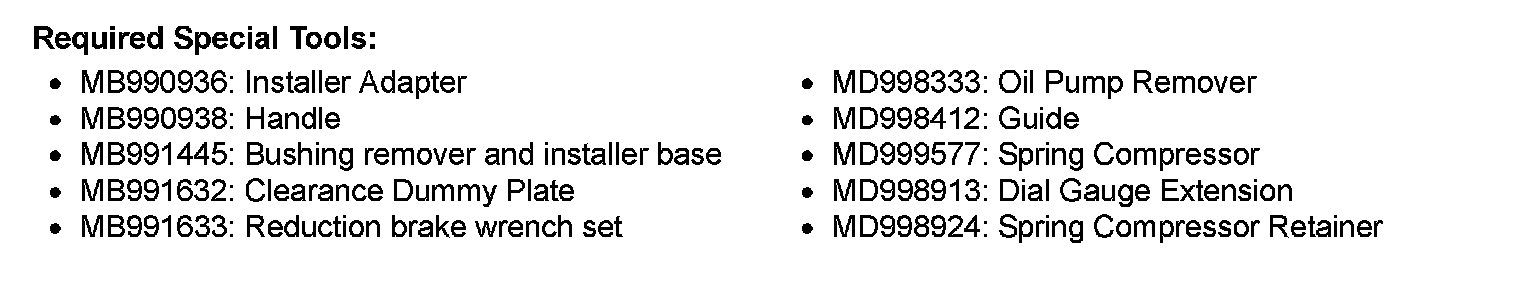

Required Special Tools:
