Automatic Transmission/Transaxle
>>
Differential
Differential

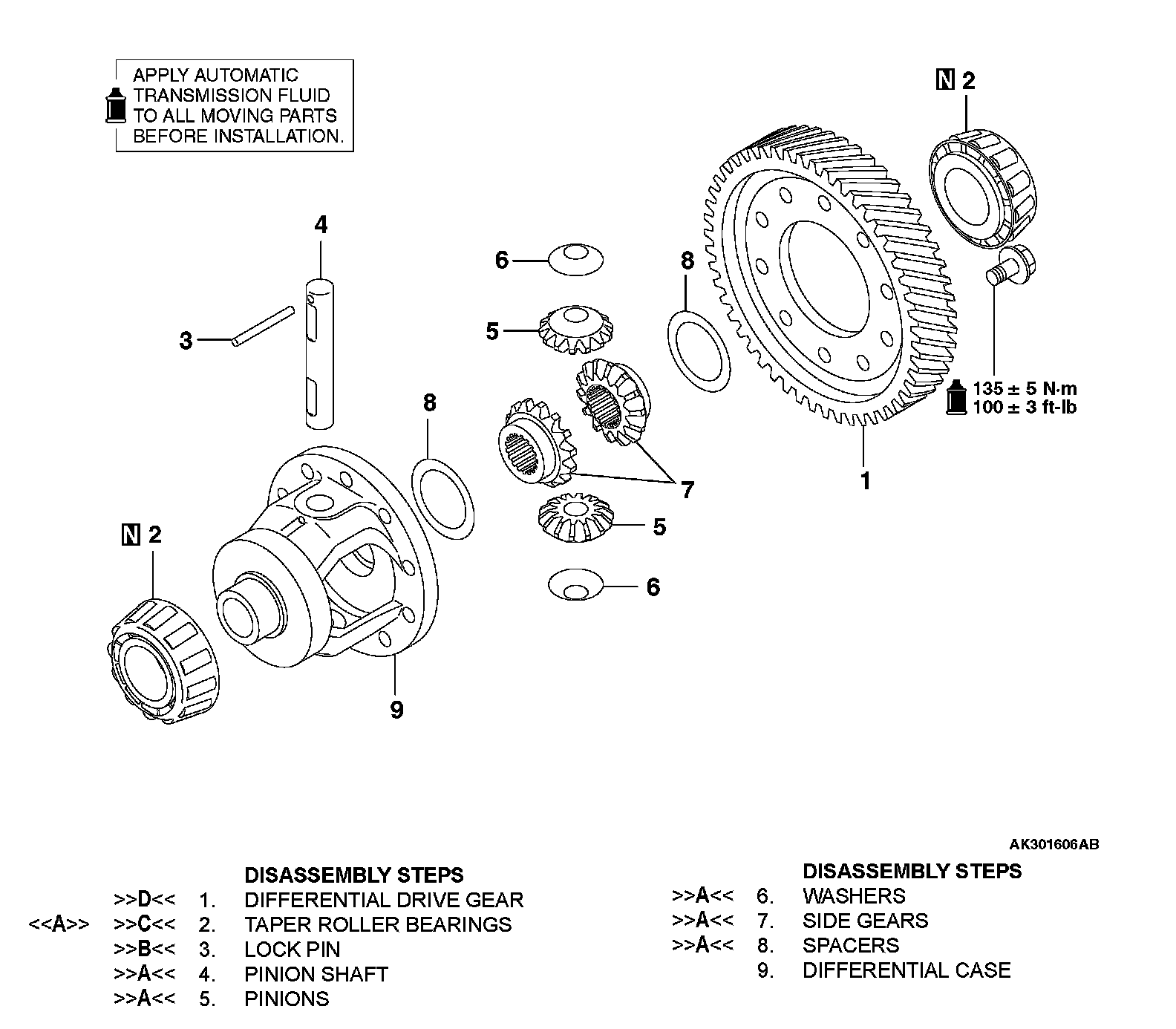

Disassembly Steps 1-9:

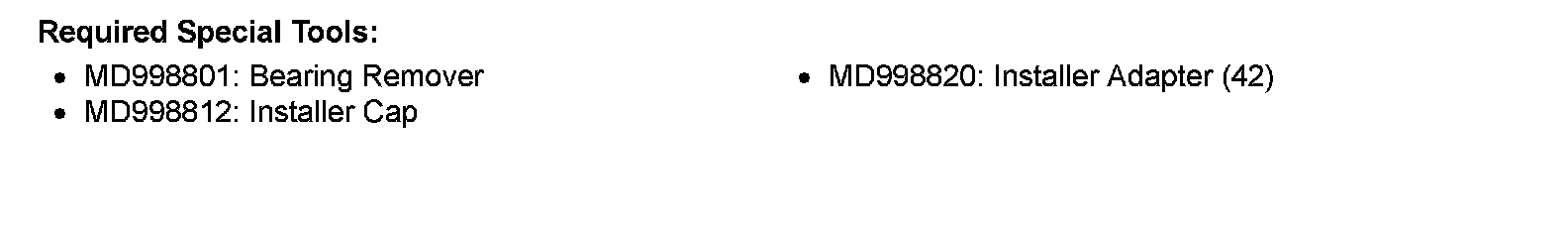

Required Special Tools:
