Automatic Transmission Control Component Layout
Automatic Transmission Control Component Layout

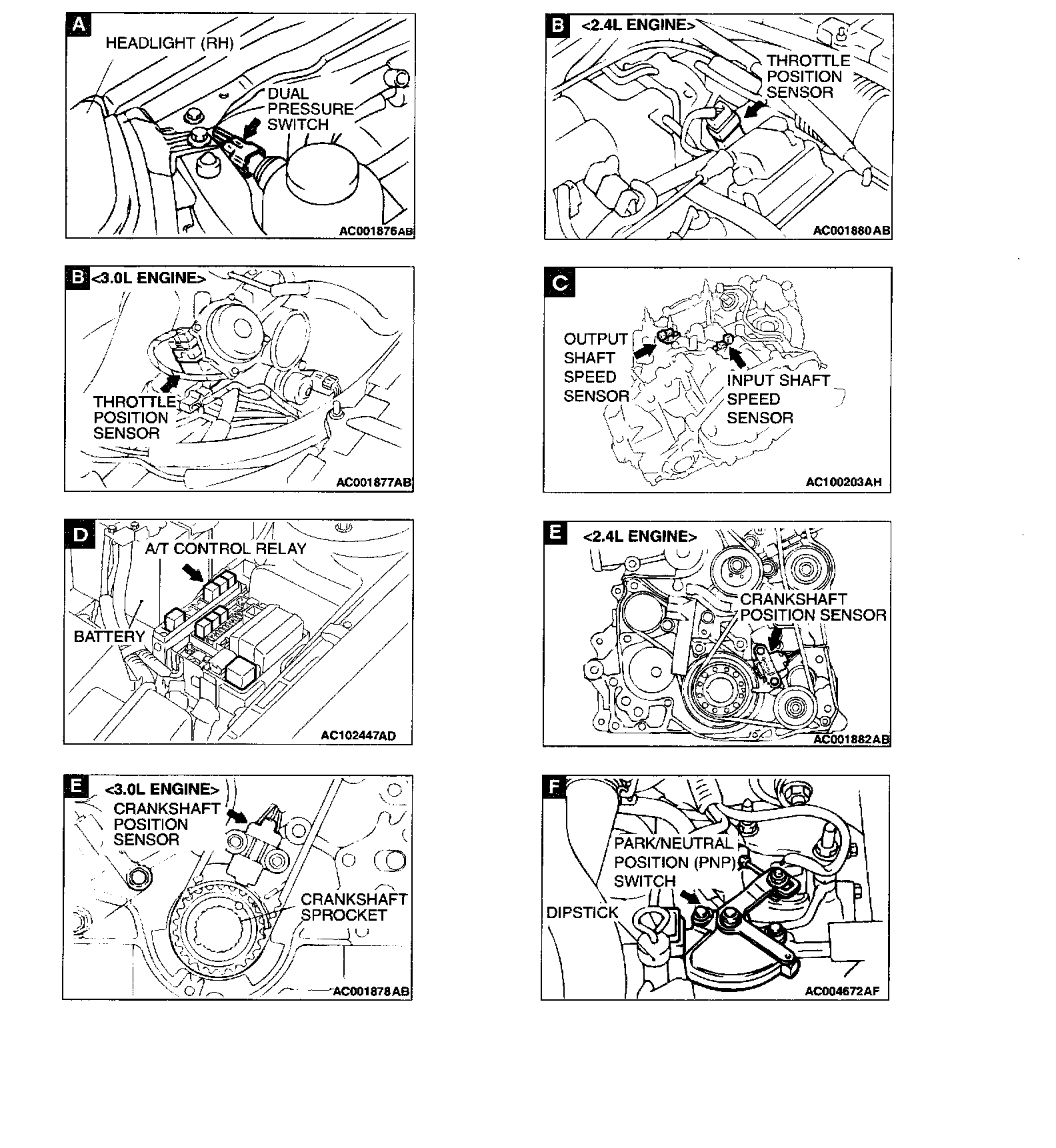

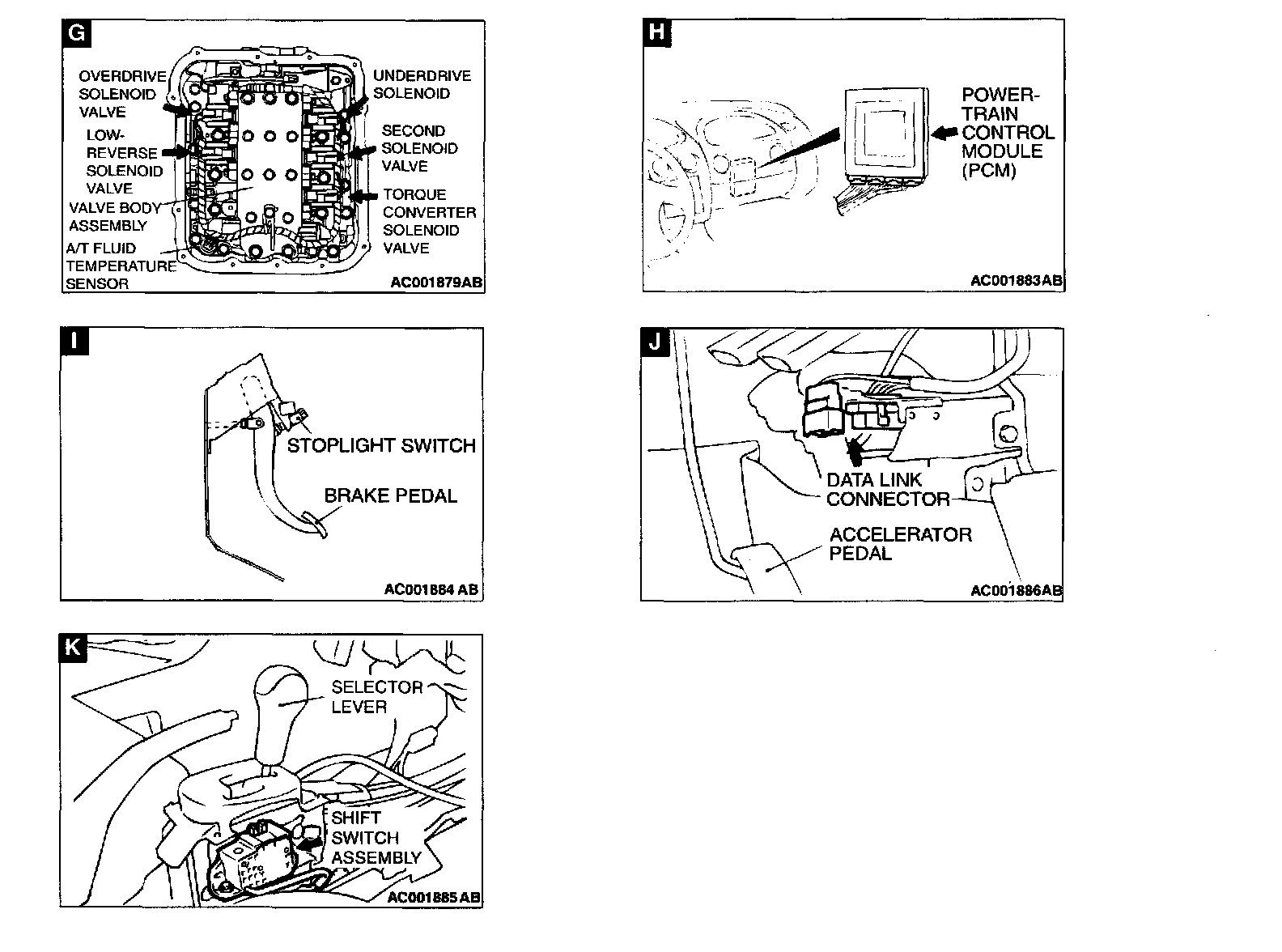

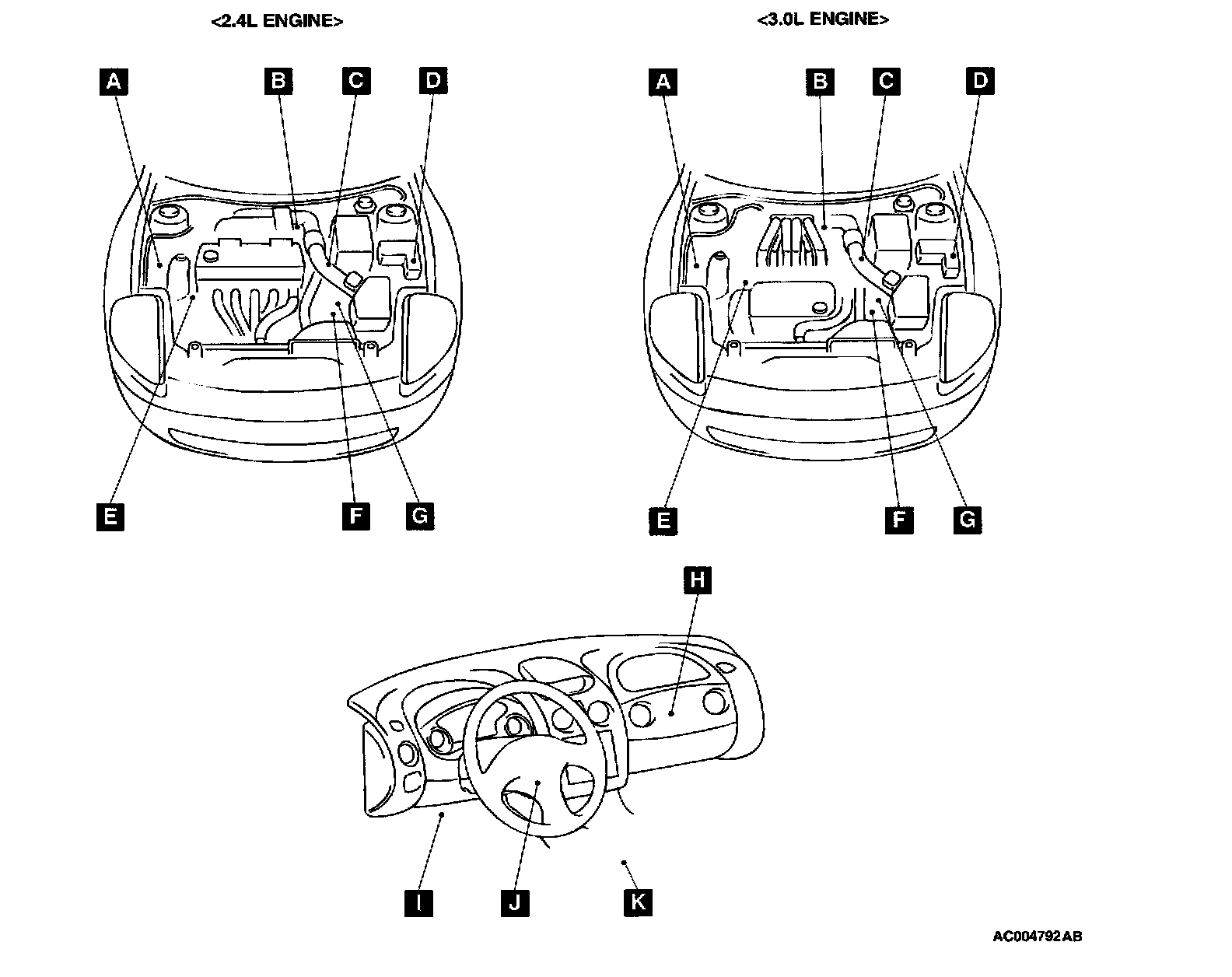

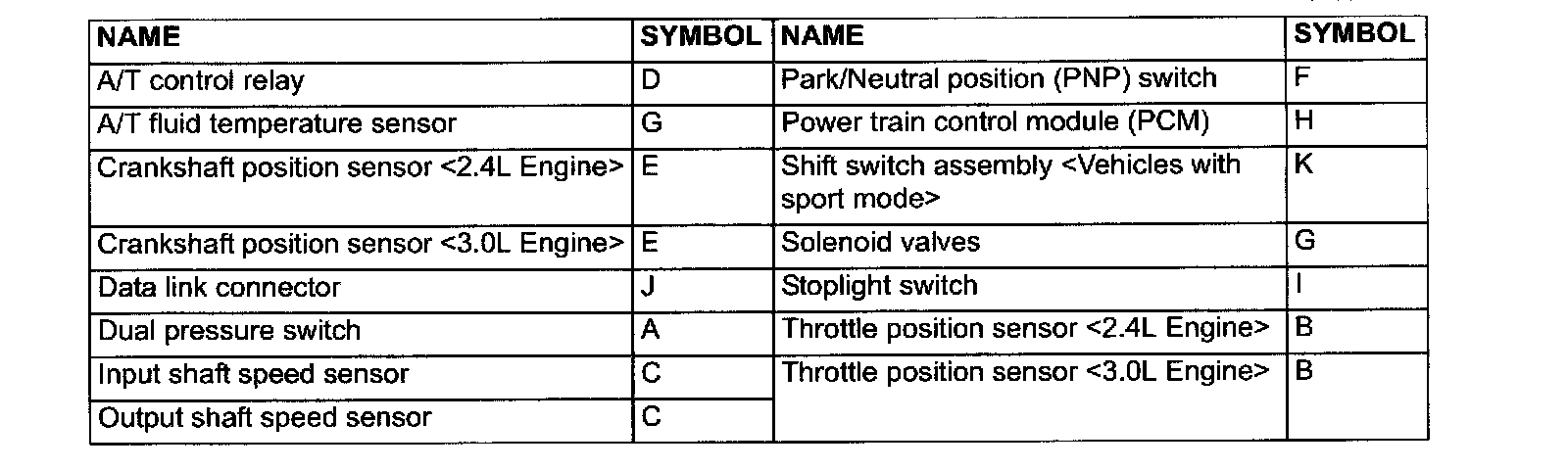

A/T CONTROL COMPONENT LAYOUT
