Function Operation

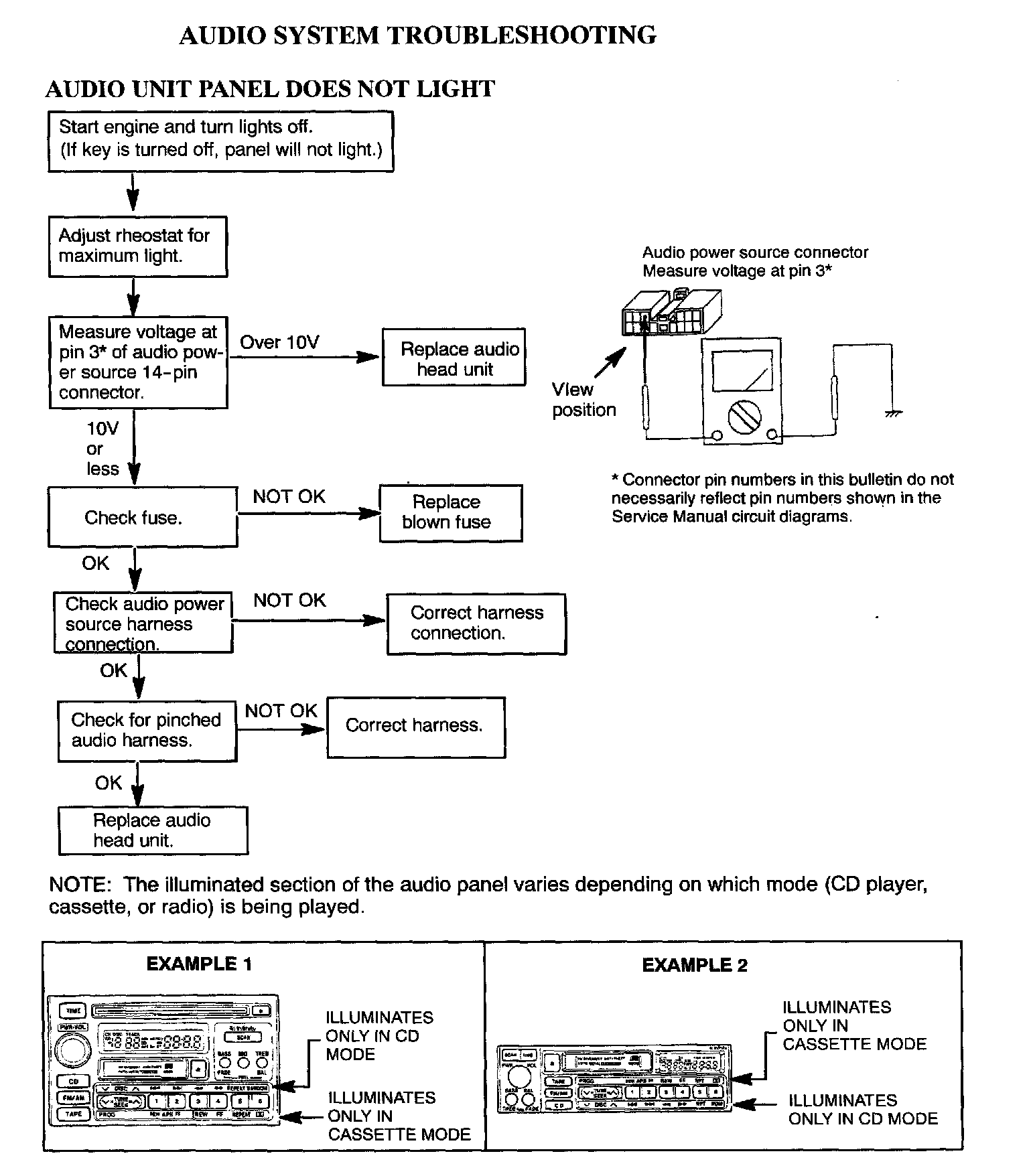

AUDIO SYSTEM TROUBLESHOOTING

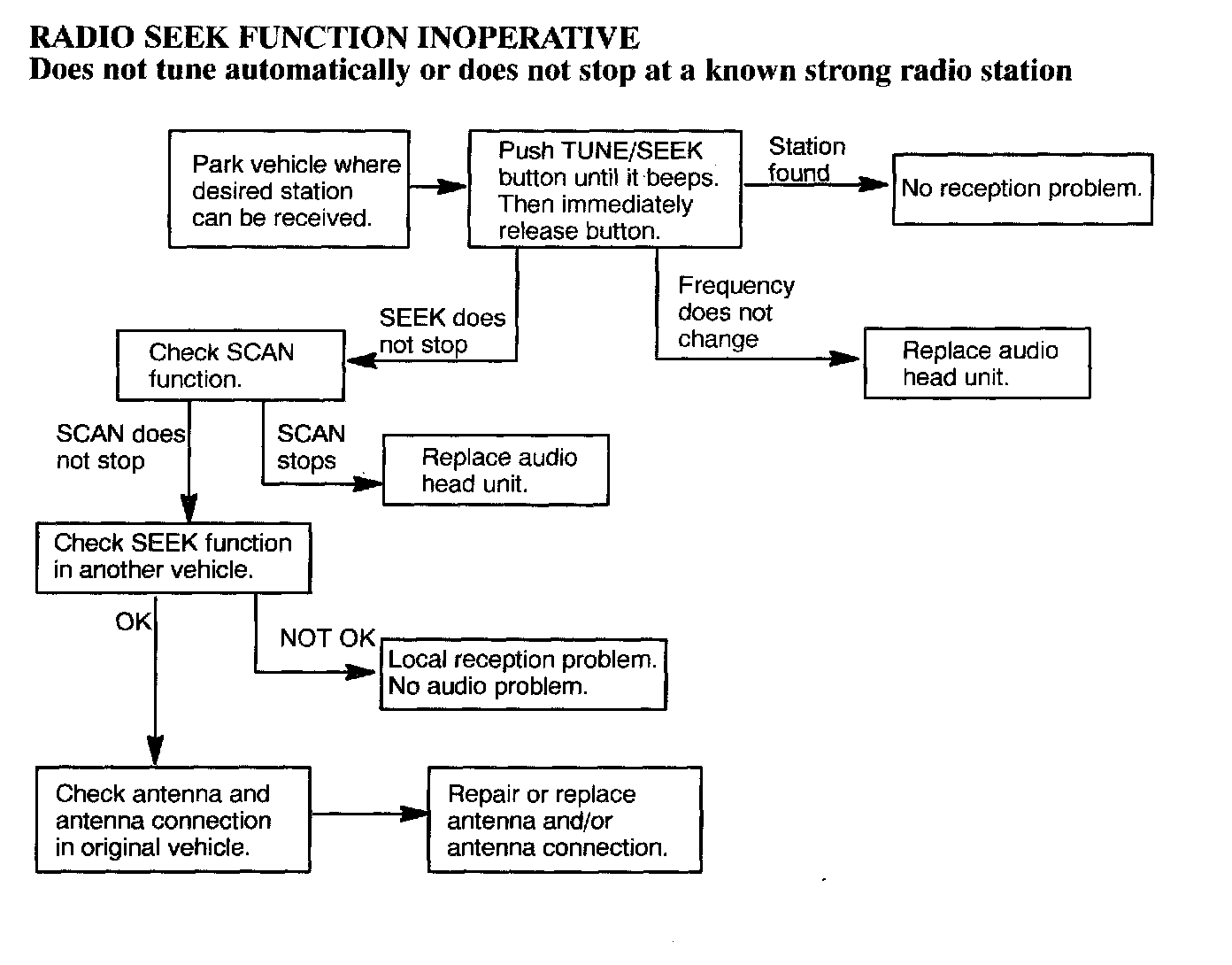

RADIO SEEK FUNCTION INOPERATIVE

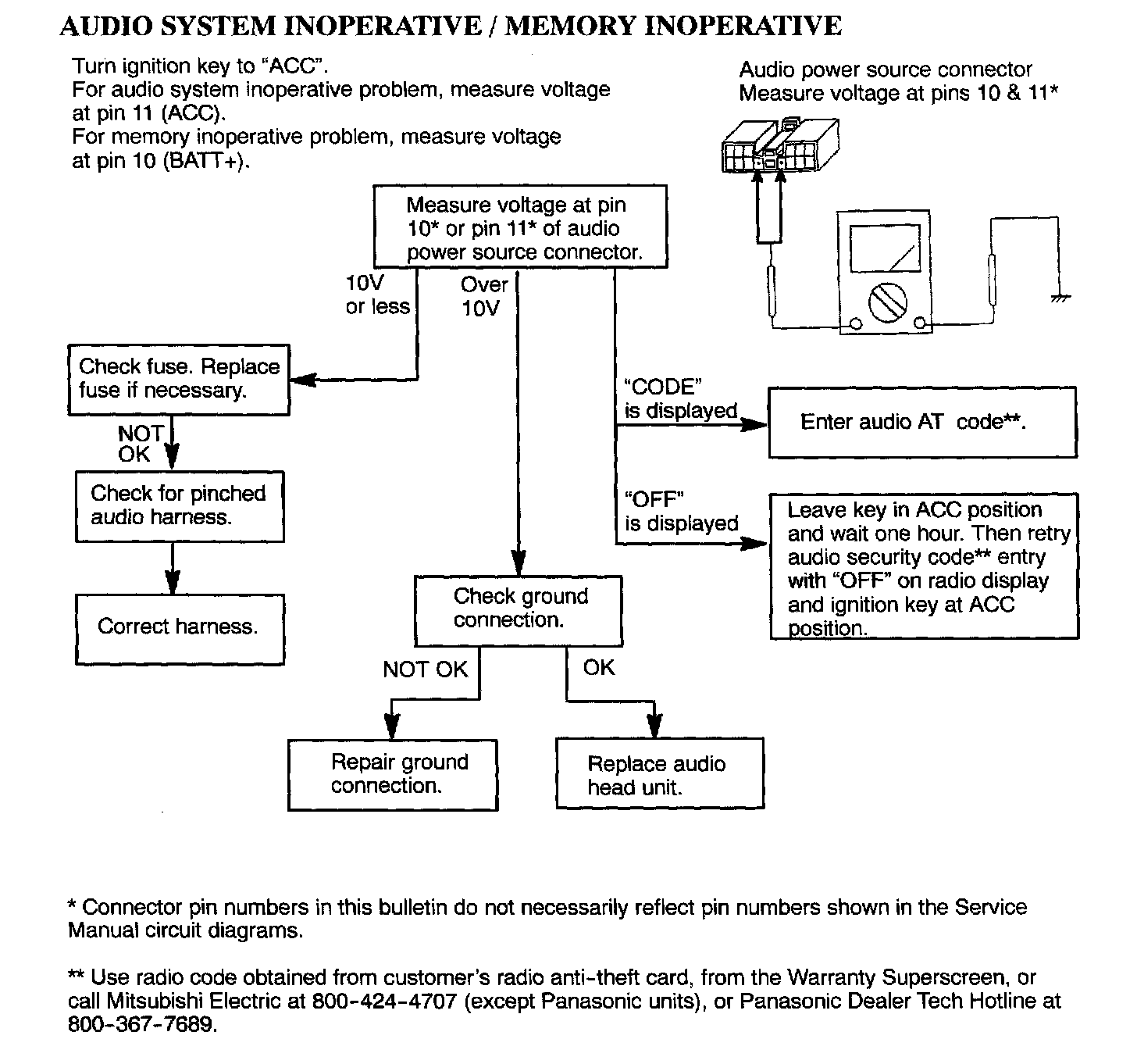

AUDIO SYSTEM INOPERATIVE / MEMORY INOPERATIVE

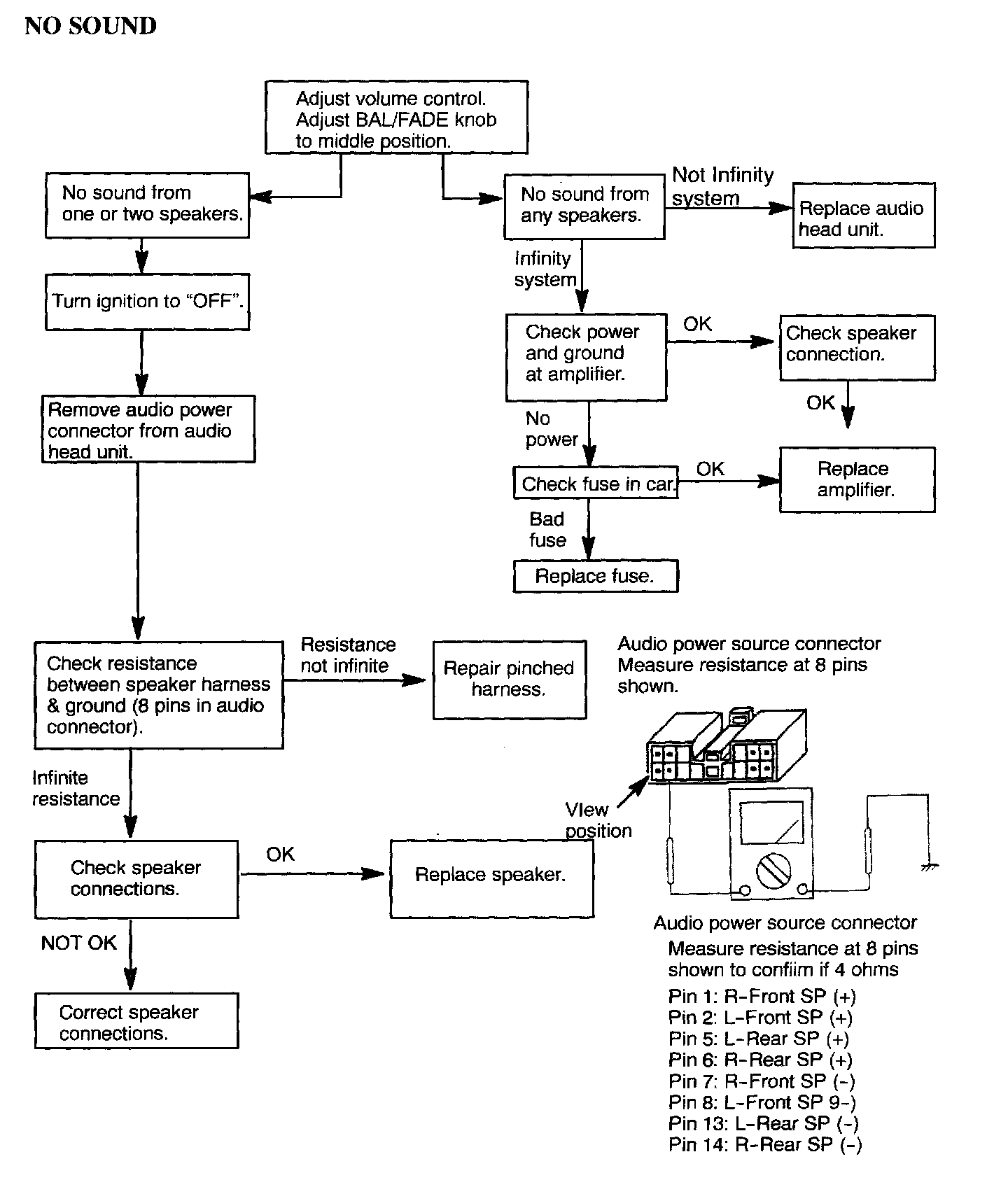

NO SOUND
