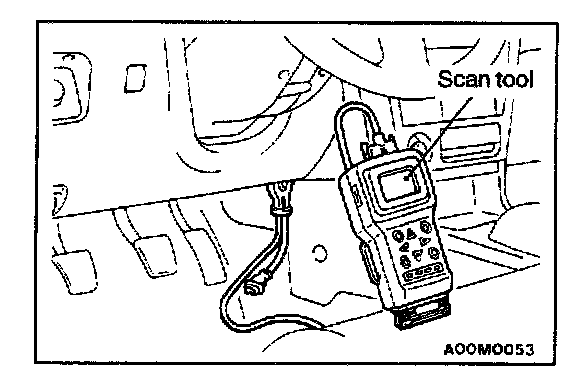

Inspection Using Scan Tool Data List And Actuator Testing

1. Carry out inspection by means of the data list and the actuator test function.
If there is an abnormality, check and repair the chassis harnesses and components.
2. After repairing, re-check using the scan tool and check to be sure that the abnormal input and output have returned to normal as a result of the repairs.
3. Erase the diagnostic trouble code(s).
4. Remove the scan tool.
5. Start the engine again and road test to confirm that the problem is eliminated.



NOTE:
Refer to Data list. Data List Reference Table & Normal Scan Data Values
Refer to Actuator tests.Actuator Test Reference Table



NOTE:
For inspection procedures P0100 - P1900 refer to Trouble Code Diagnostic Procedures.
Testing and Inspection

For inspection procedures 1 - 50 refer to Diagnosis By Symptom.
Symptom Related Diagnostic Procedures
