Symptom Charts

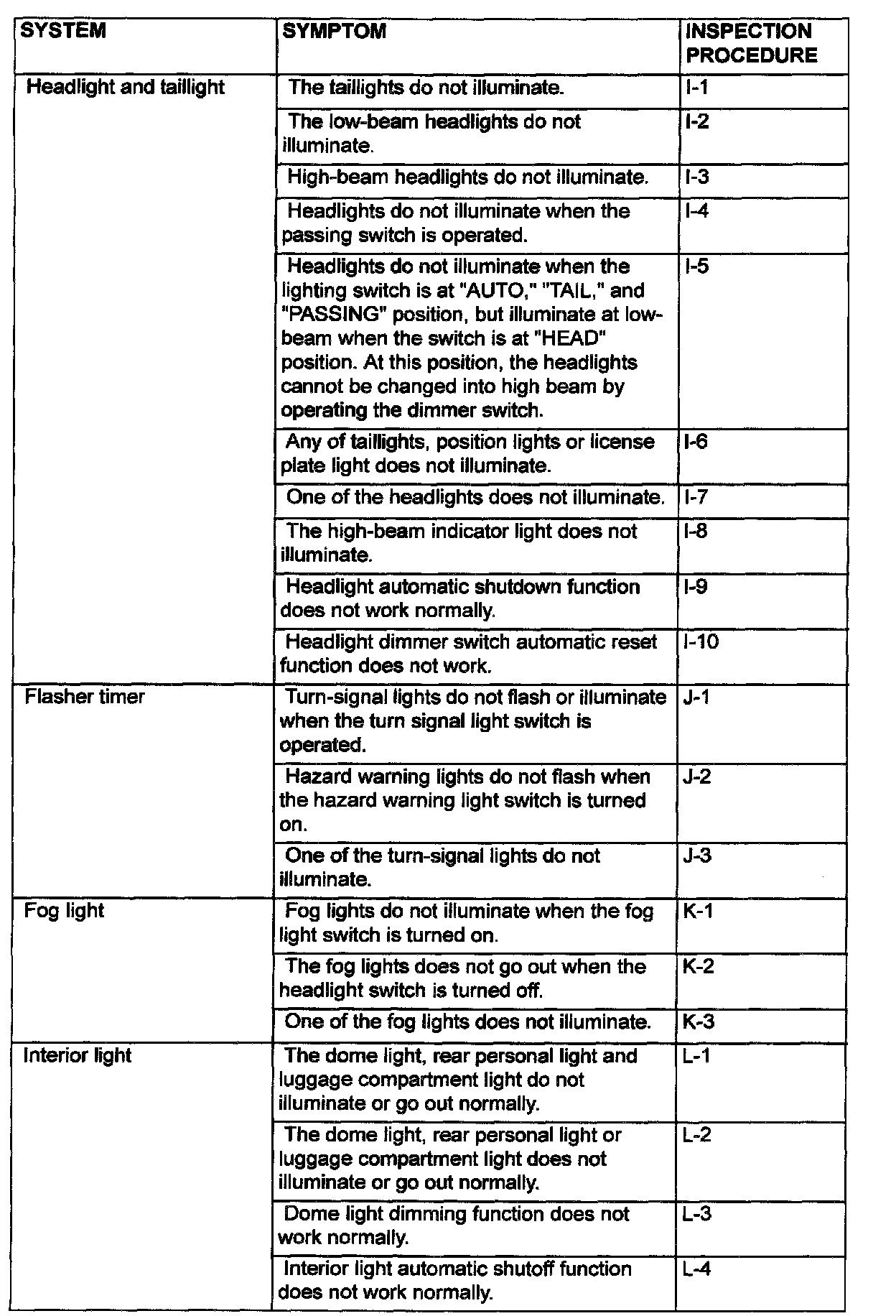

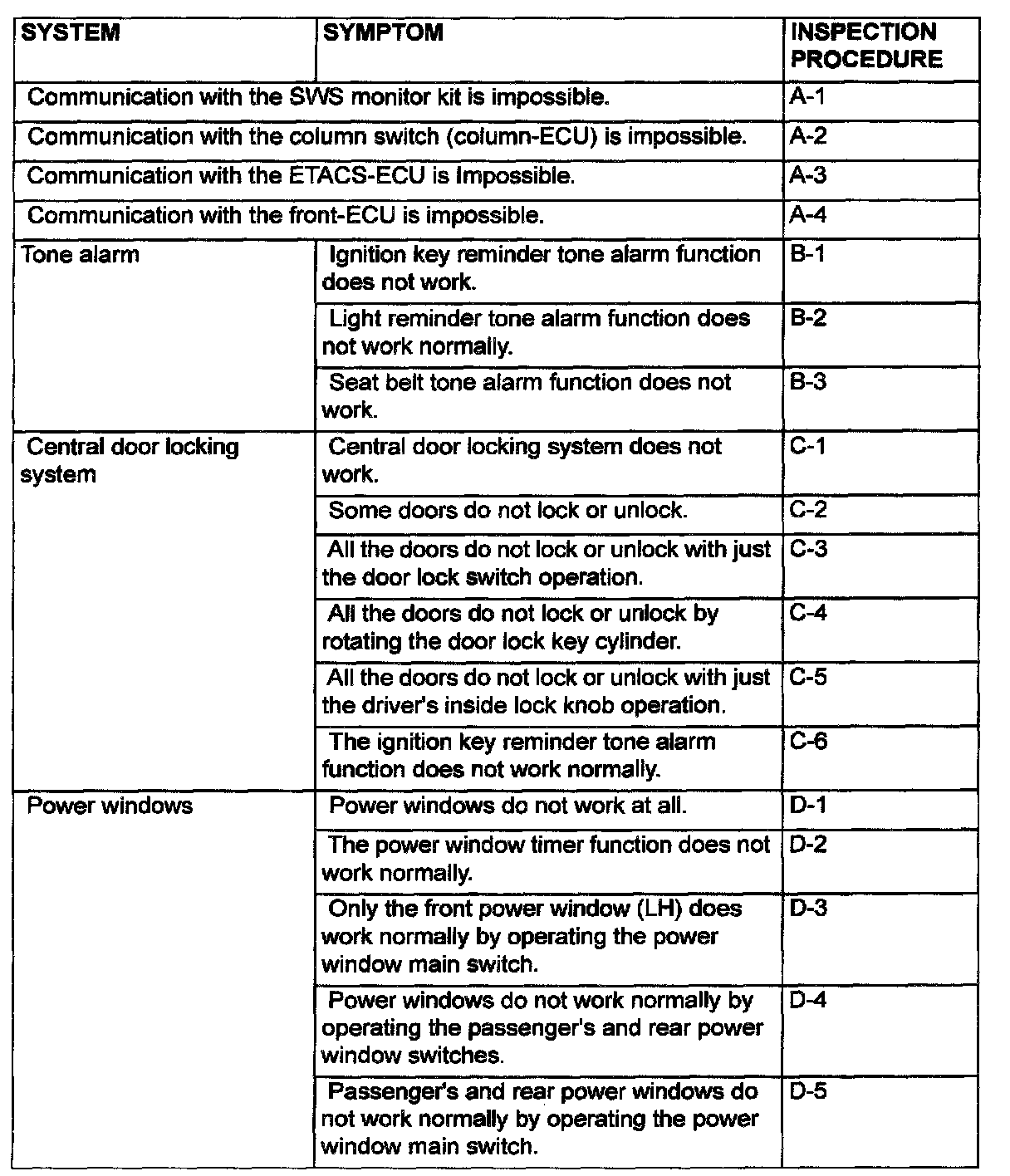

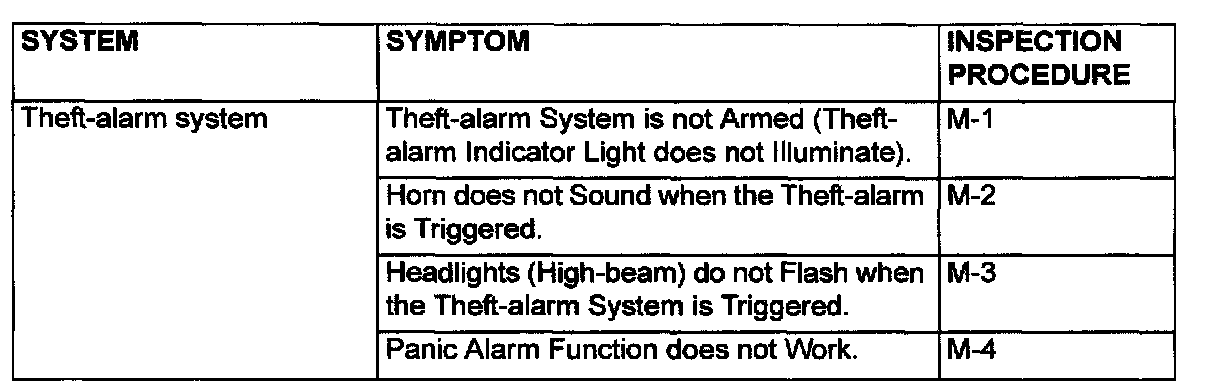

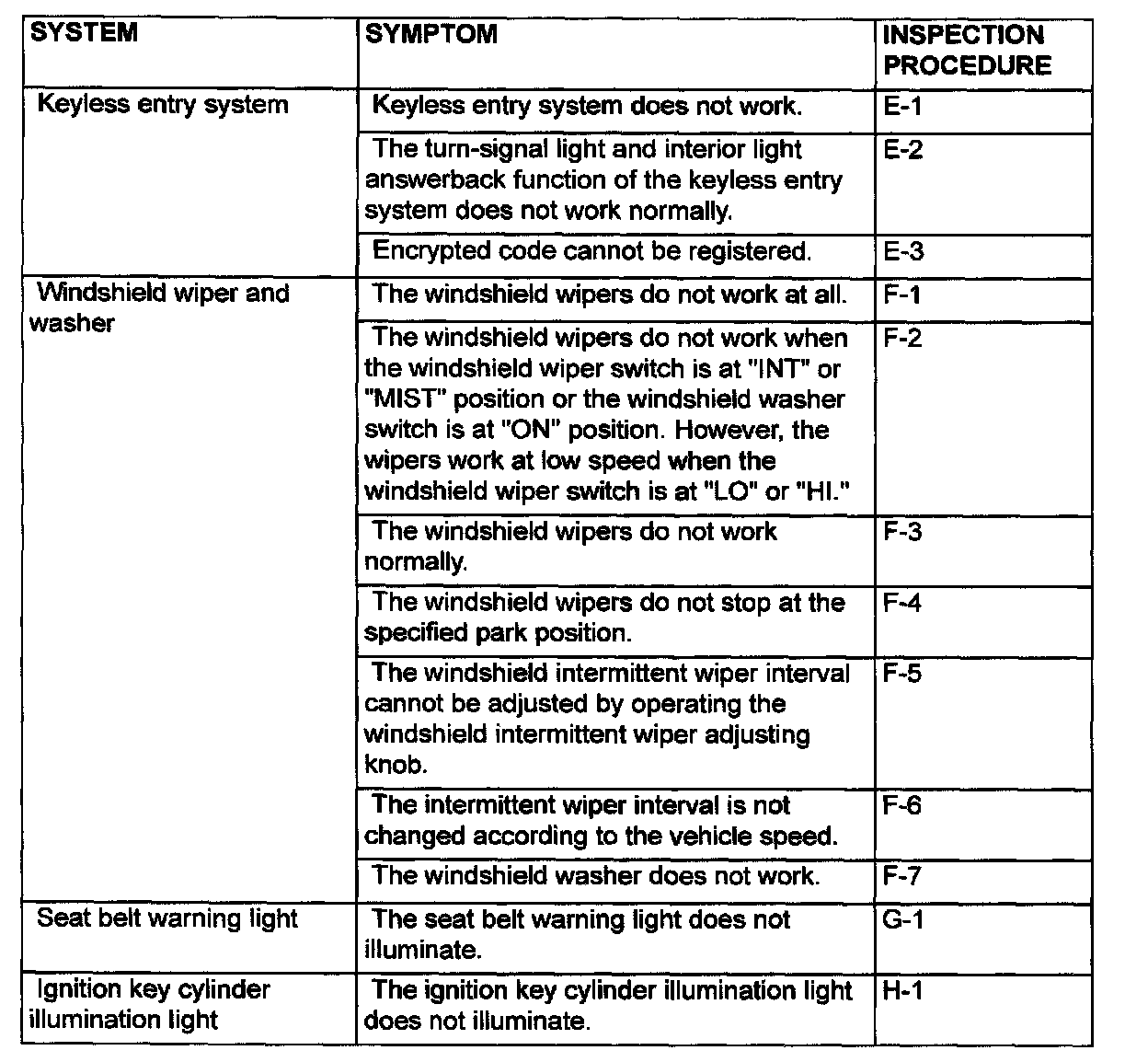

Symptom Chart Part 1:

Symptom Chart Part 2:

Symptom Chart Part 3:

Symptom Chart Part 4:

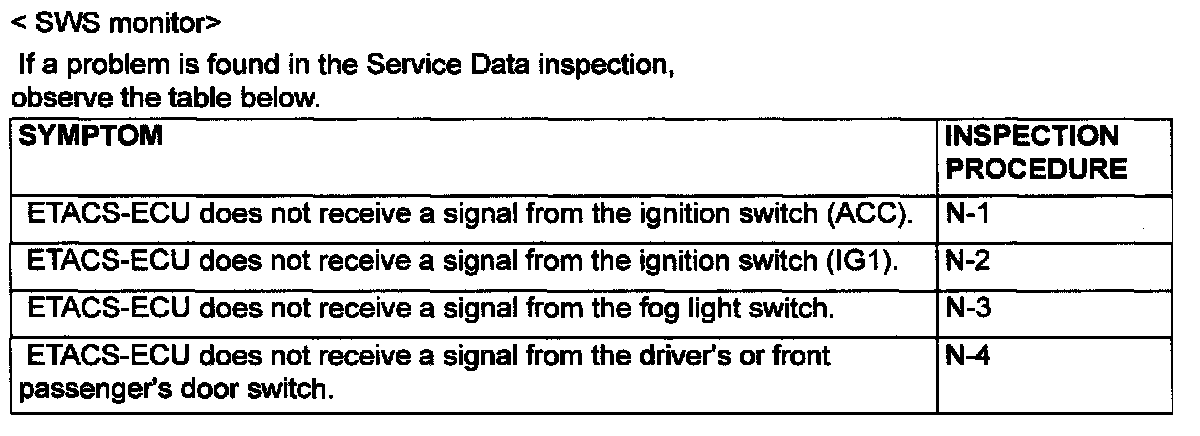

Defects Found During Input Signal Check / SWS Monitor Part 1:

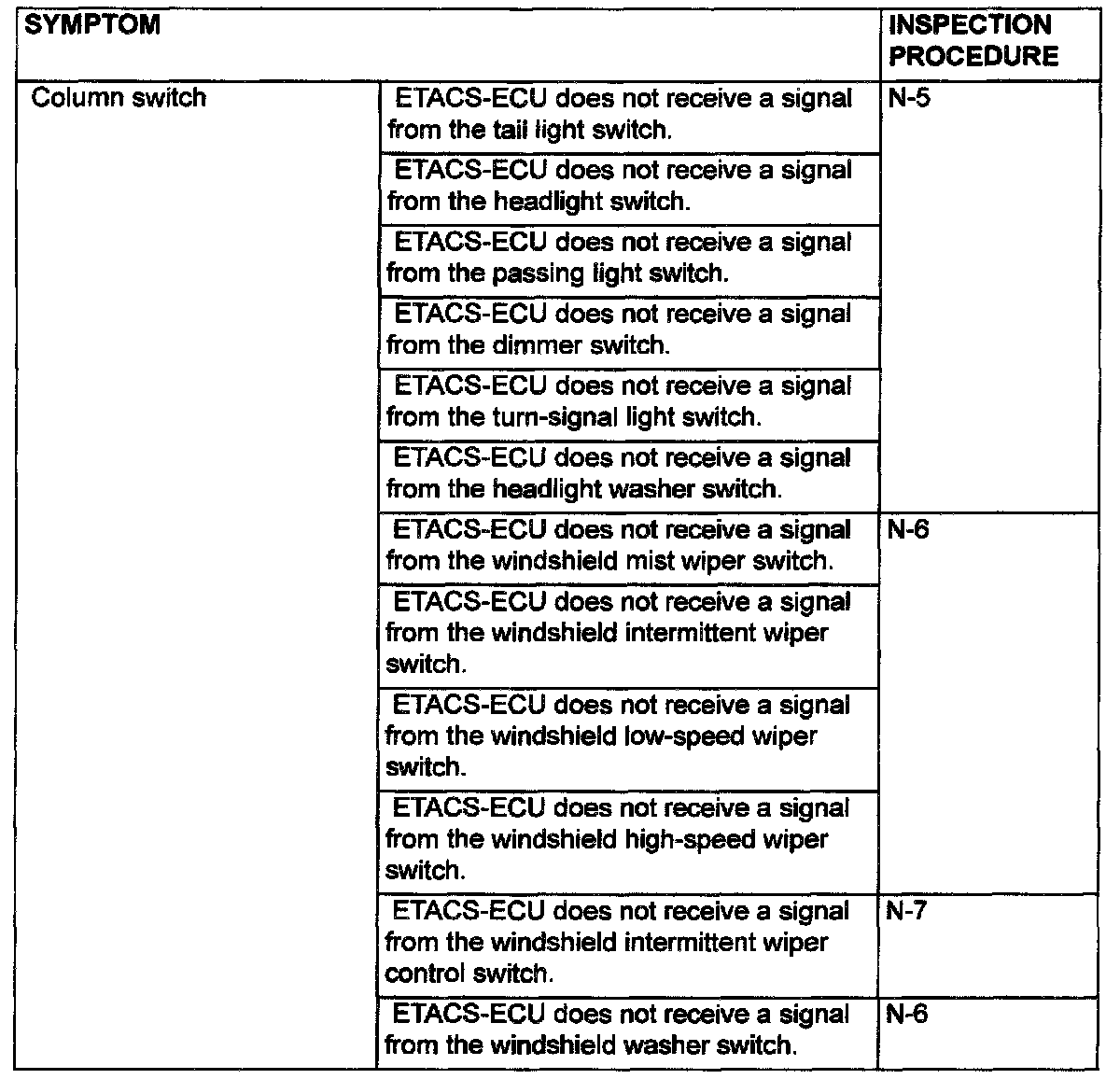

Defects Found During Input Signal Check / SWS Monitor Part 2:

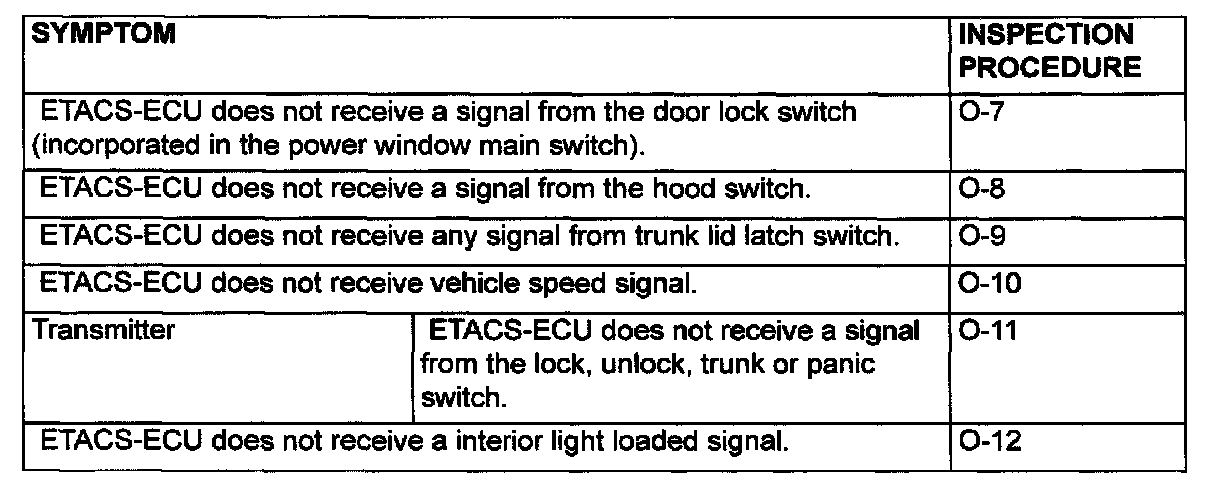

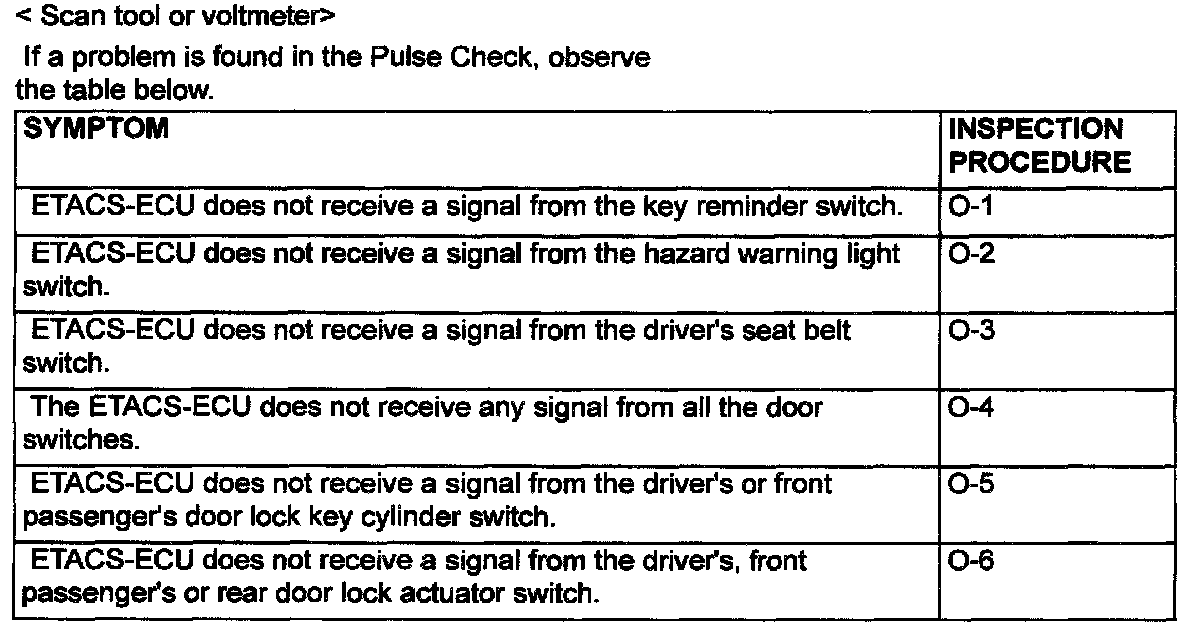

Defects Found During Input Signal Check / Scan Tool Or Voltmeter Part 1:

Defects Found During Input Signal Check / Scan Tool Or Voltmeter Part 2:
