Description and Operation
>>
General System Description
>>
Feedback Carburetor System & Operation
>>
Federal
Federal

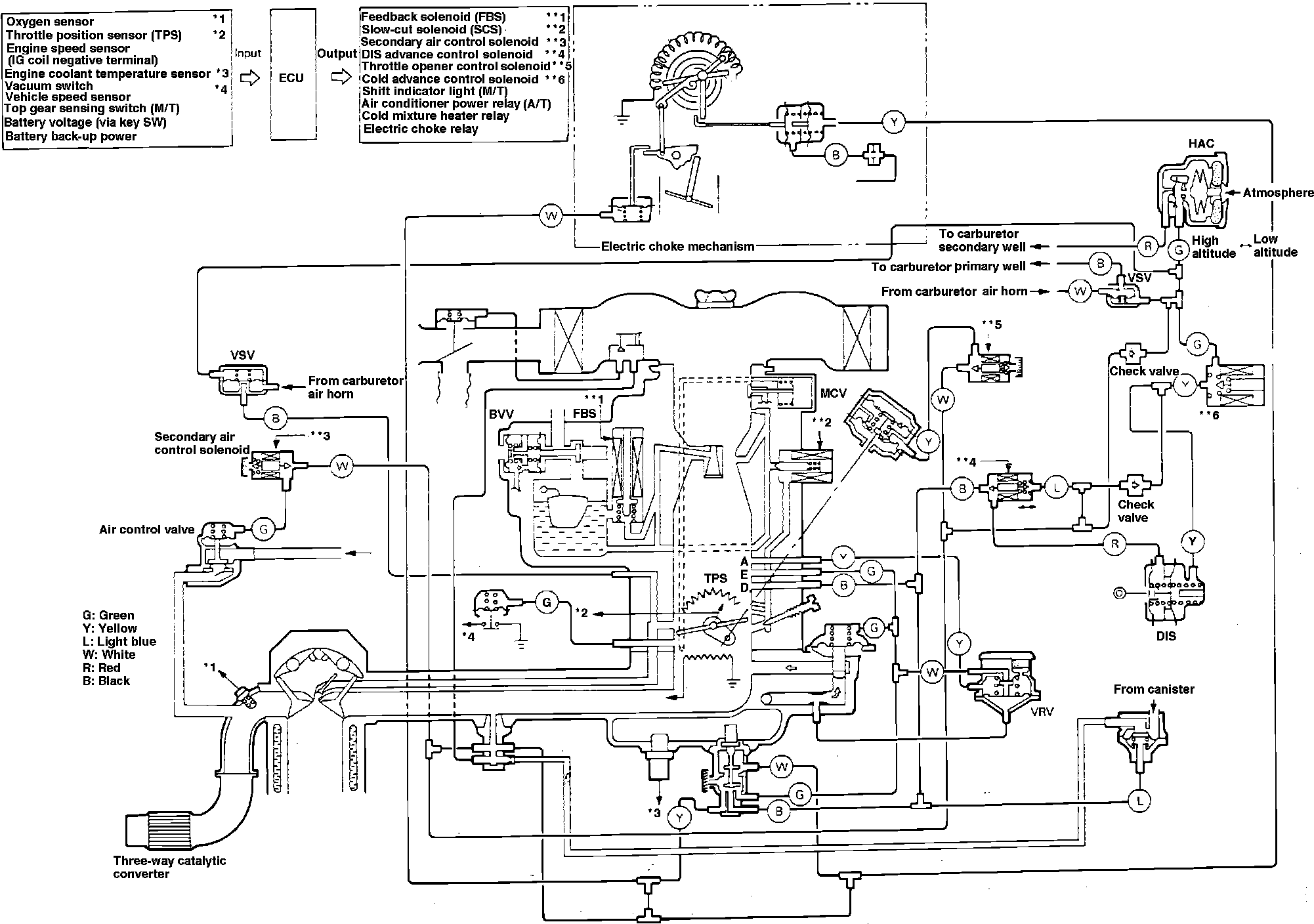

Federal System Diagram:
