Feedback Carburetor System & Operation, California

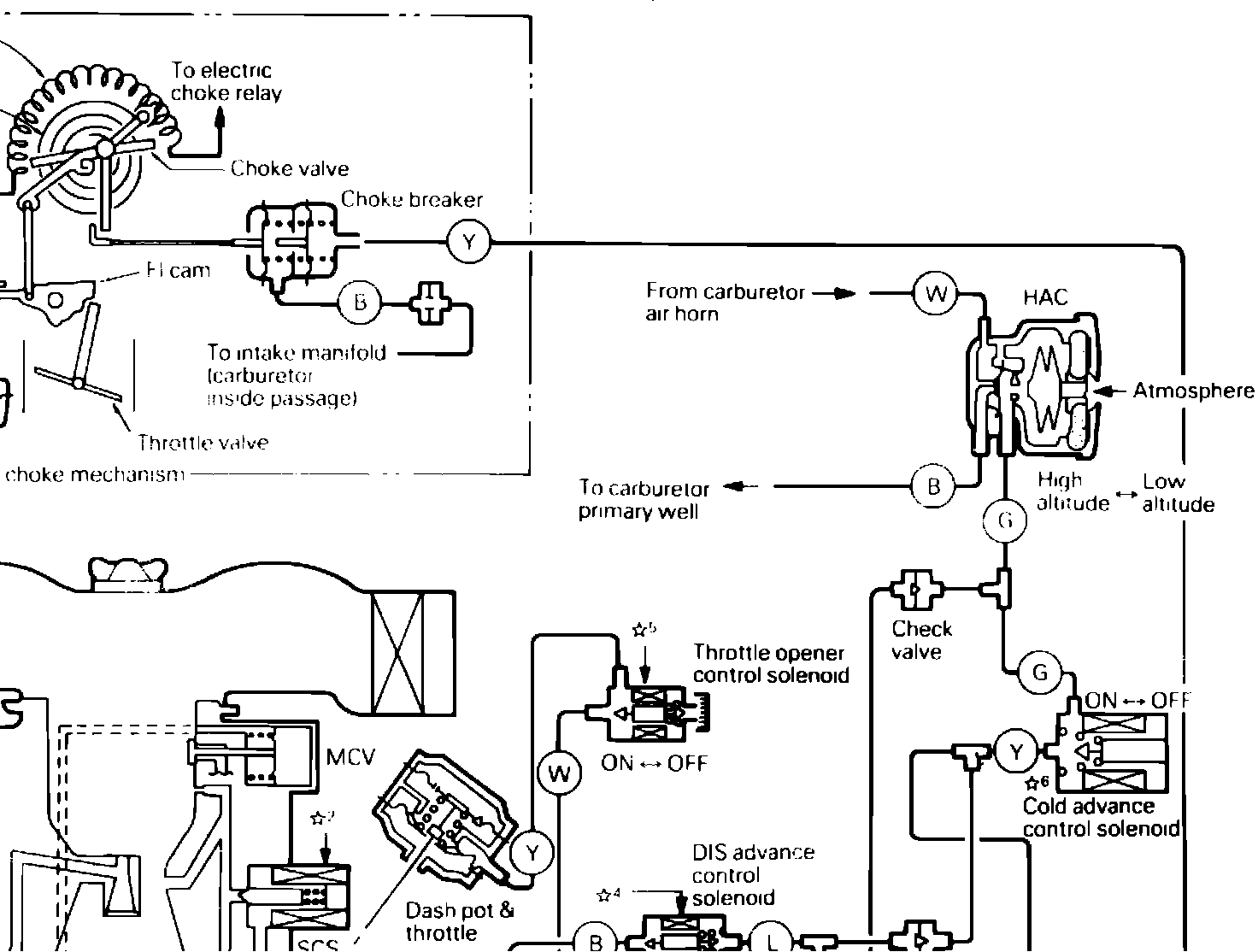

Fig. 8a Electronic feedback carburetor system & operation.:

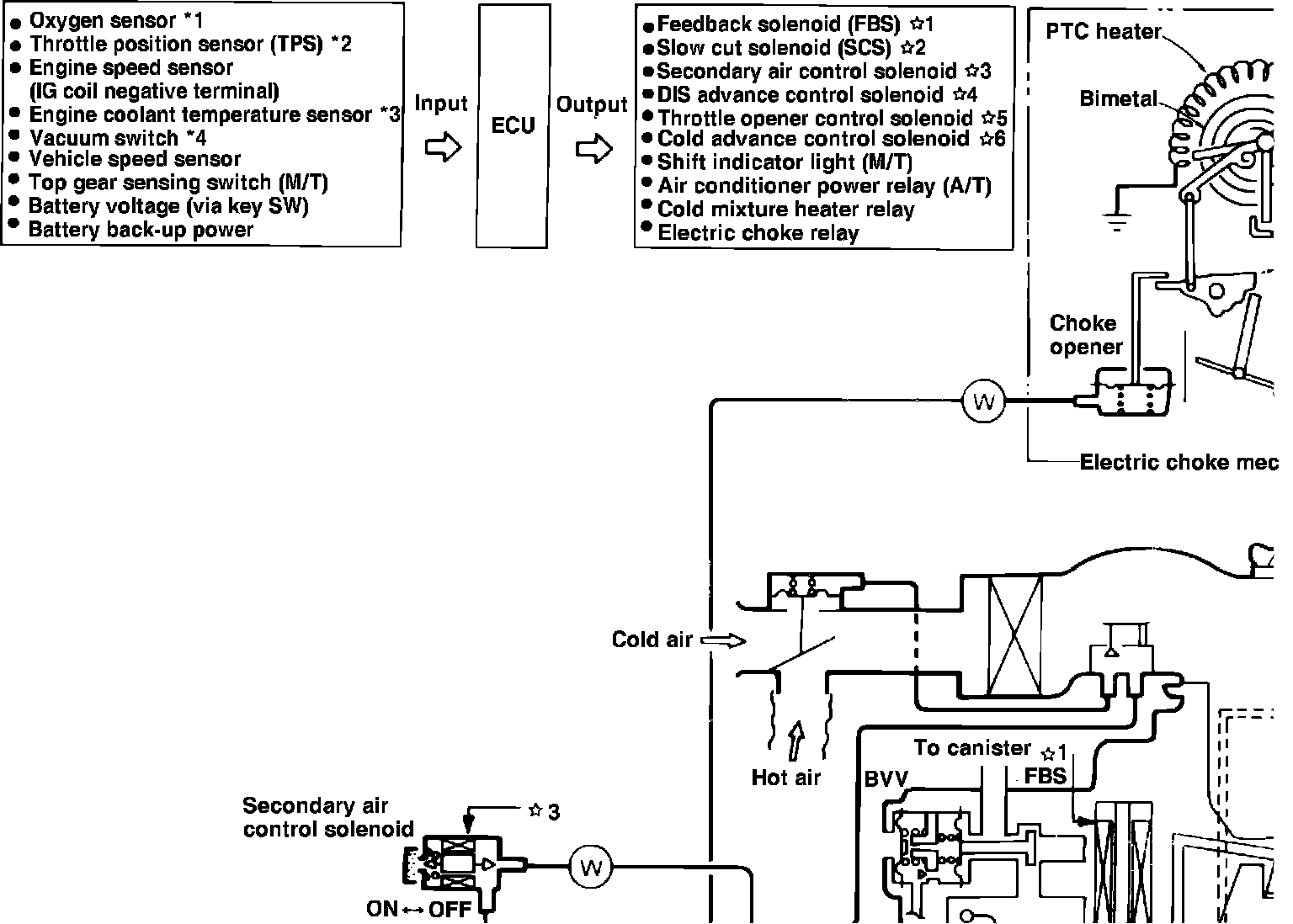

Fig. 8b Electronic feedback carburetor system & operation, California. (2 of 4):

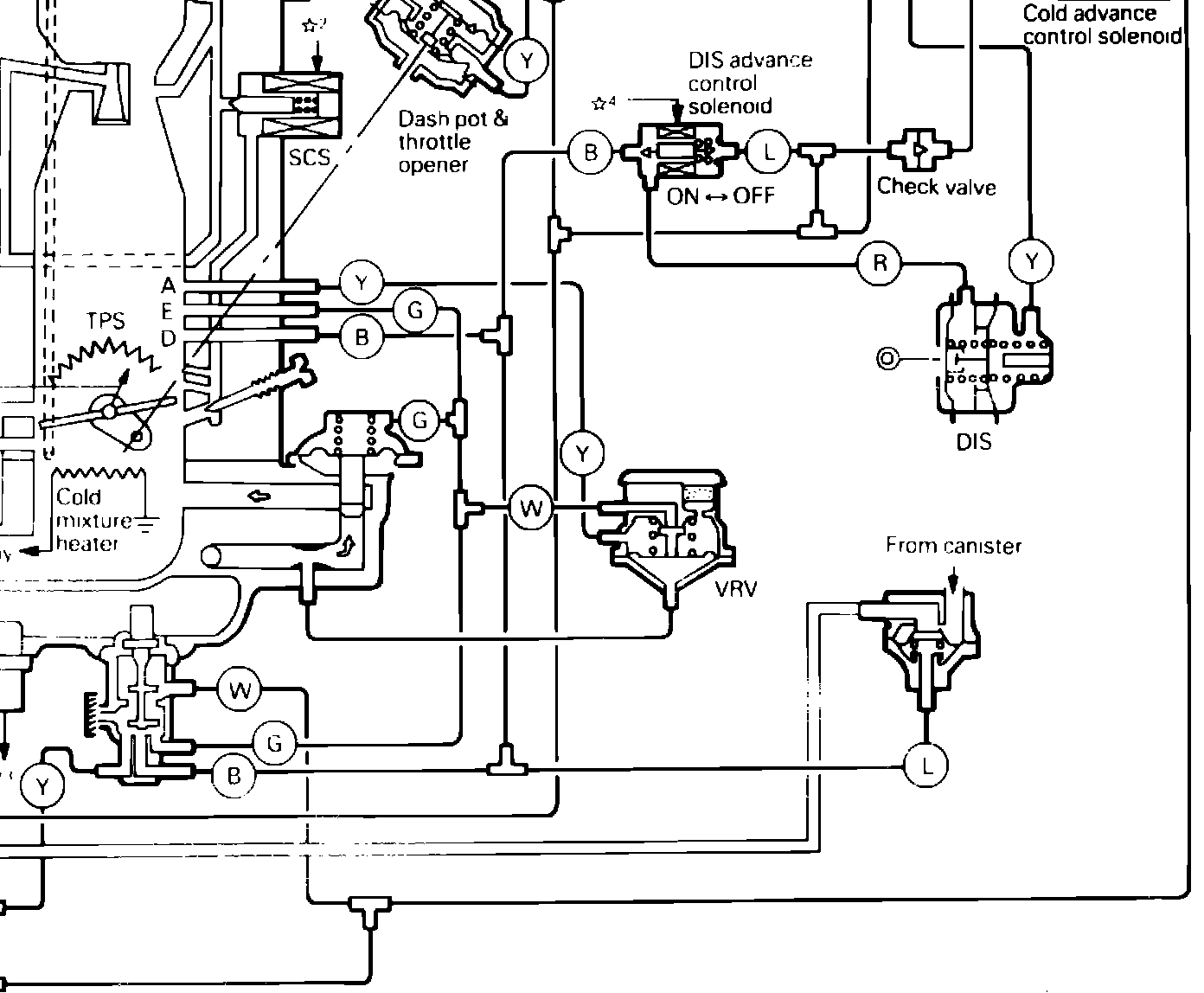

Fig. 8c Electronic feedback carburetor system & operation, California. (3 of 4):

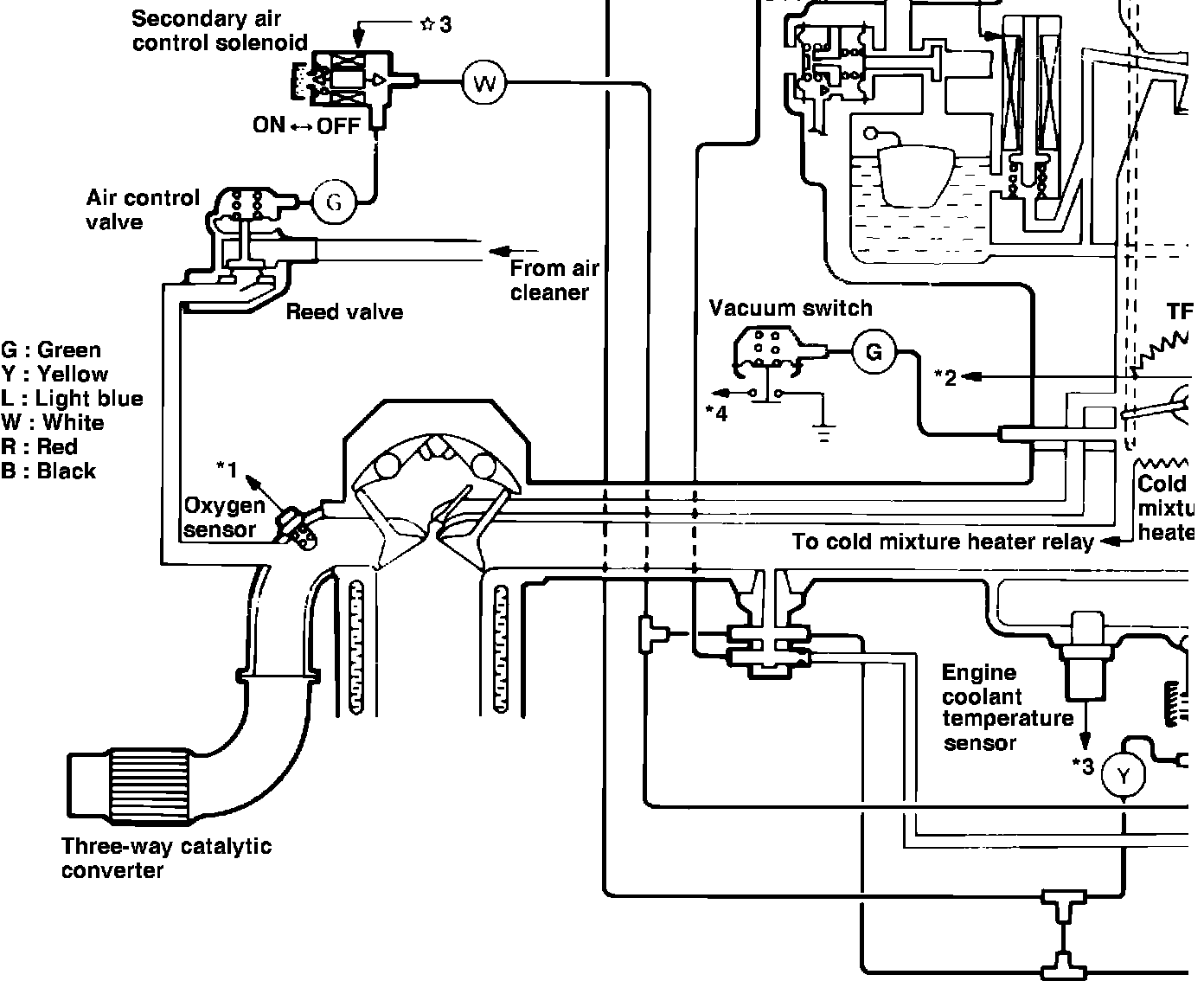

Fig. 8d Electronic feedback carburetor system & operation, California. (4 of 4):
