Mitsubishi Truck
>>
2009
>>
Raider 2WD V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission Control System Relay, A/T
Transmission Control System Relay, A/T

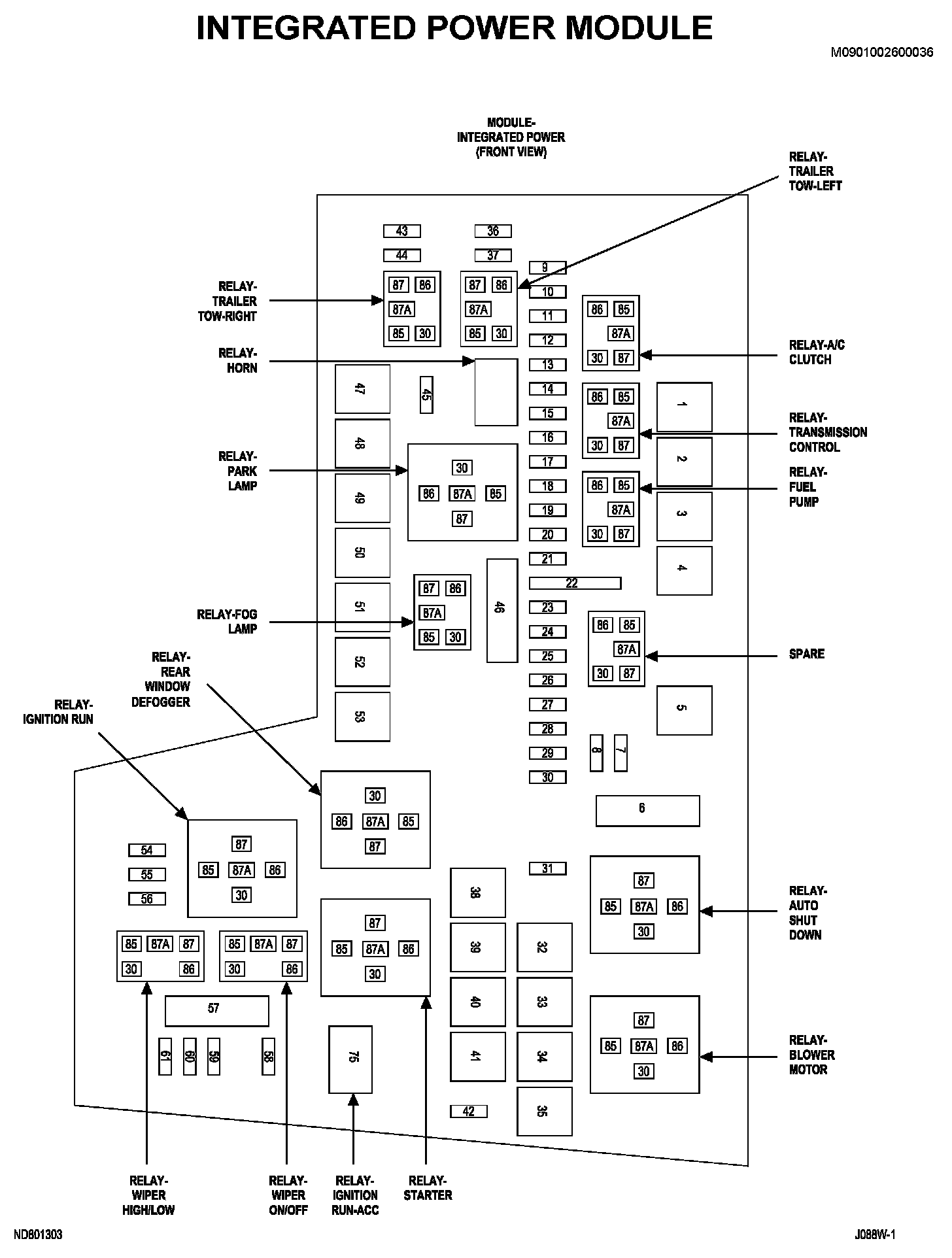

Integrated Power Module (Front View):
