Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mercury
>>
1995
>>
Tracer L4-110 1.8L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>
Sensor Graphs and Charts
>>
Volume Air Flow Sensor
Volume Air Flow Sensor

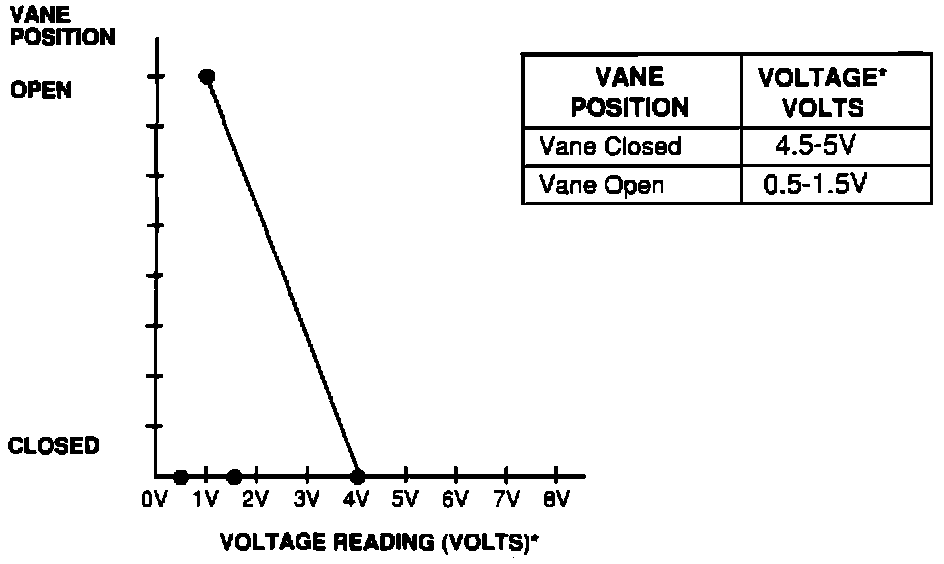

VAF Sensor Graph:
