ELU - Electrical Load Control Unit Test
>>
ELU - Testing Notes and Schematic
ELU - Testing Notes and Schematic

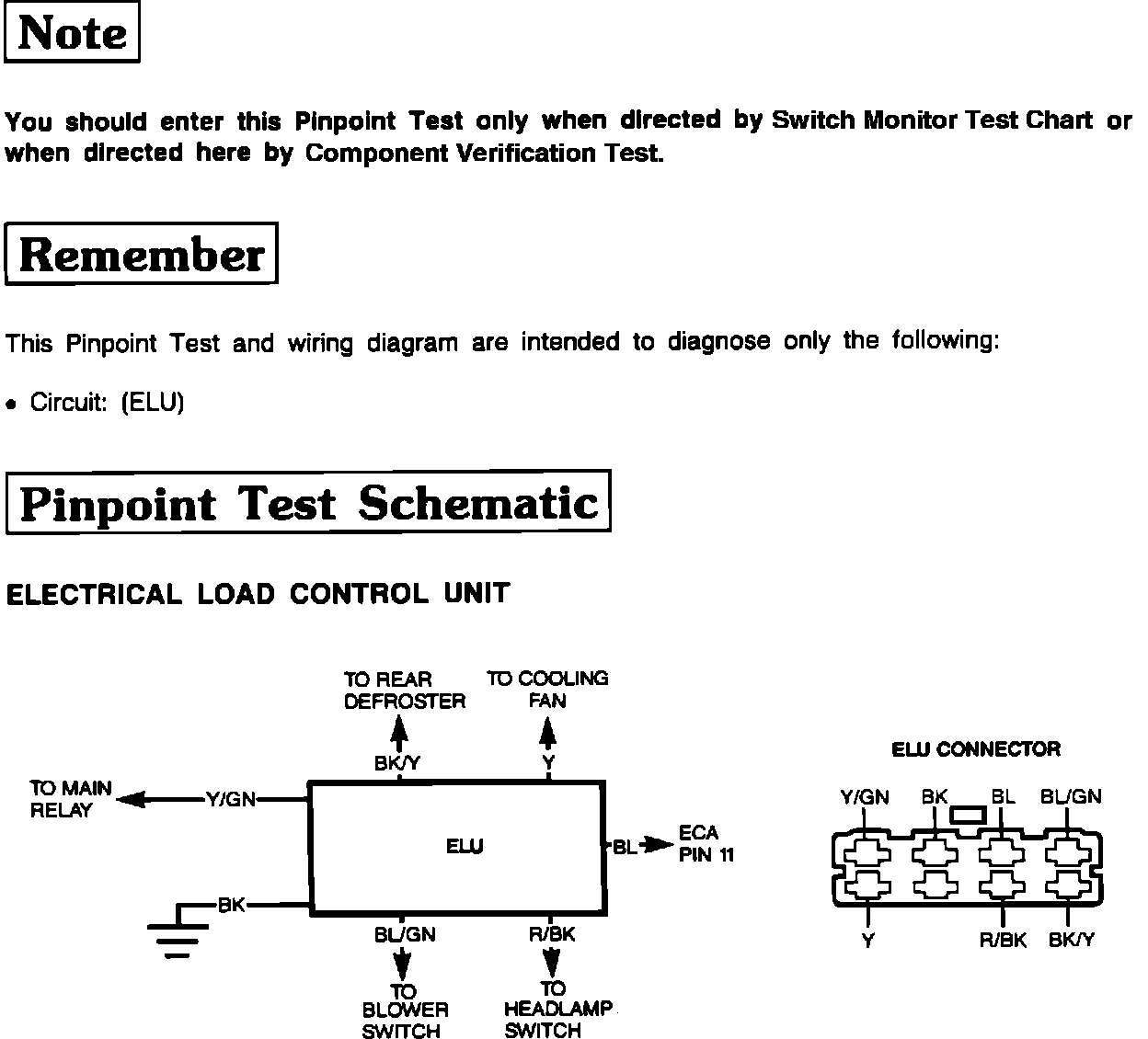

Pinpoint Test ELU Testing Notes And Test Schematic:
