Home >> Mercury >> 1991 >> Capri L4-1597cc 1.6L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Technical Service Bulletins >> All Technical Service Bulletins >> Engine Control Systems - Diagnosis Revision >> EEC Pinpoint Test - All Engines >> Solenoid Controlled By Ground - All Engines >> Note, Pinpoint Schematic, Connector Pin I.D.

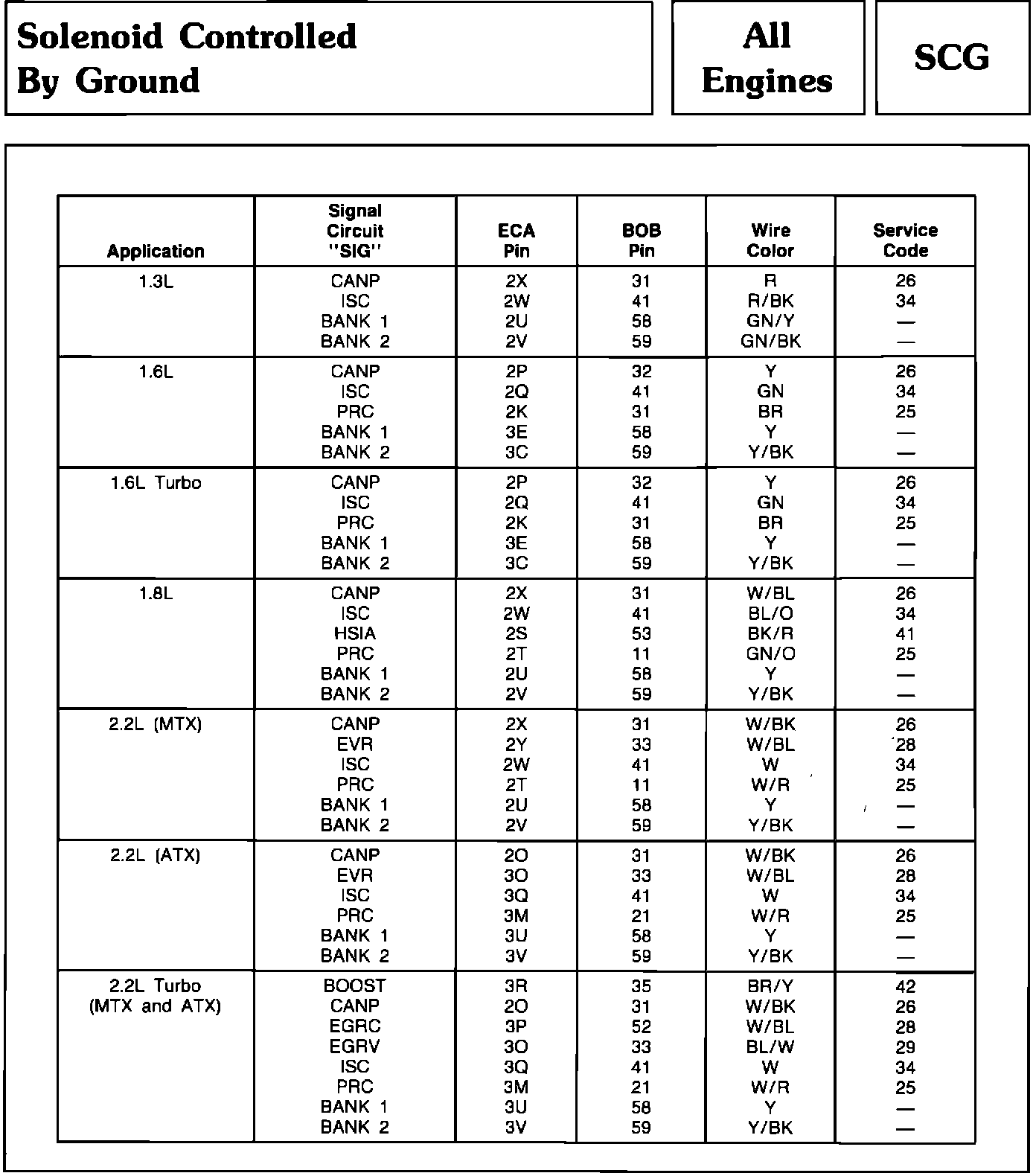

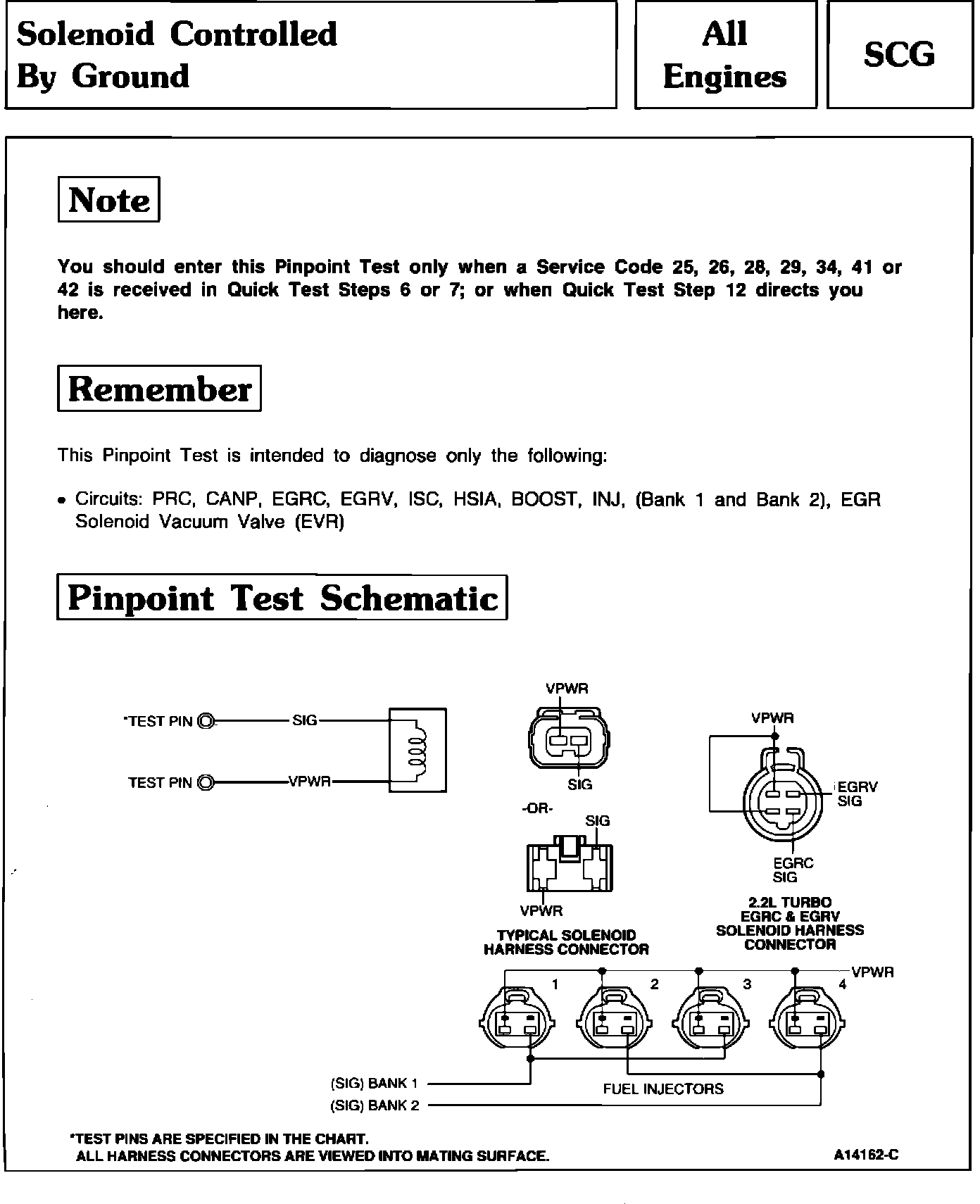

Note, Pinpoint Schematic, Connector Pin I.D.
