STP - Switch to Power
>>
STP4 - Test Switch Operation
STP4 - Test Switch Operation
*** UPDATED BY TSB# 91-14-B1 DATED 08-30-93

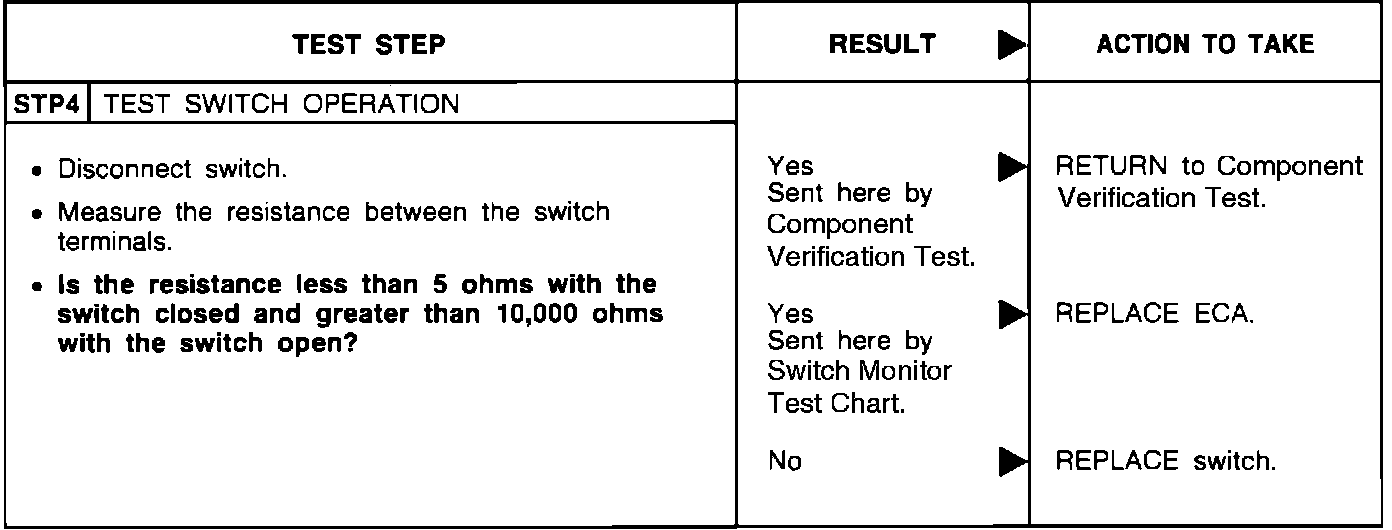

Pinpoint Test STP4:
