IGN 8 System Check - With Engine Analyzer Equipment
>>
Test 2 Secondary Display
>>

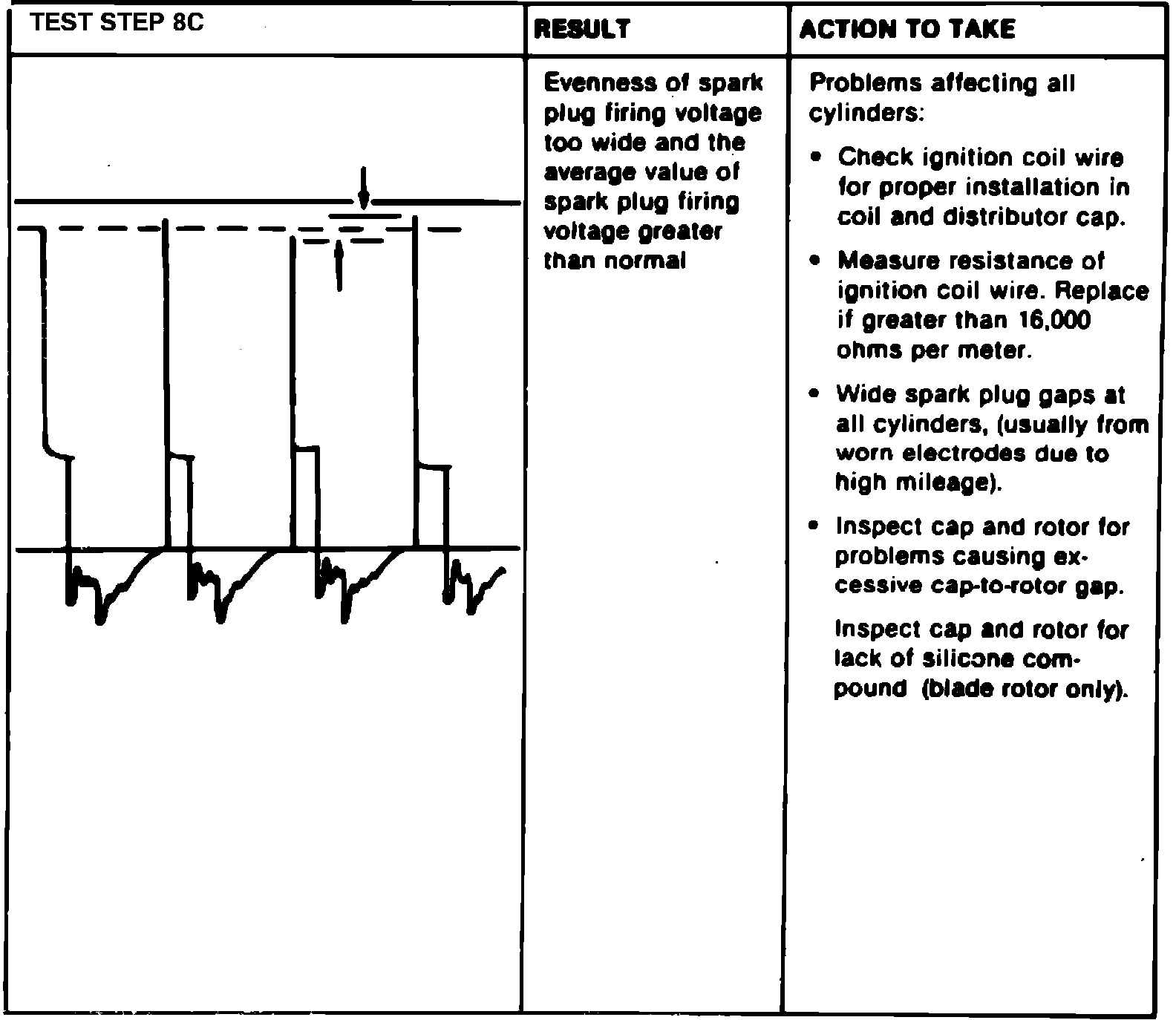

Test Step 8C
Test Step 8C
Fig. 8e Ignition system diagnosis, system check using engine analyzer (Part 5 of 10):
