Radiator Cooling Fan Control Module
Radiator Cooling Fan Control Module

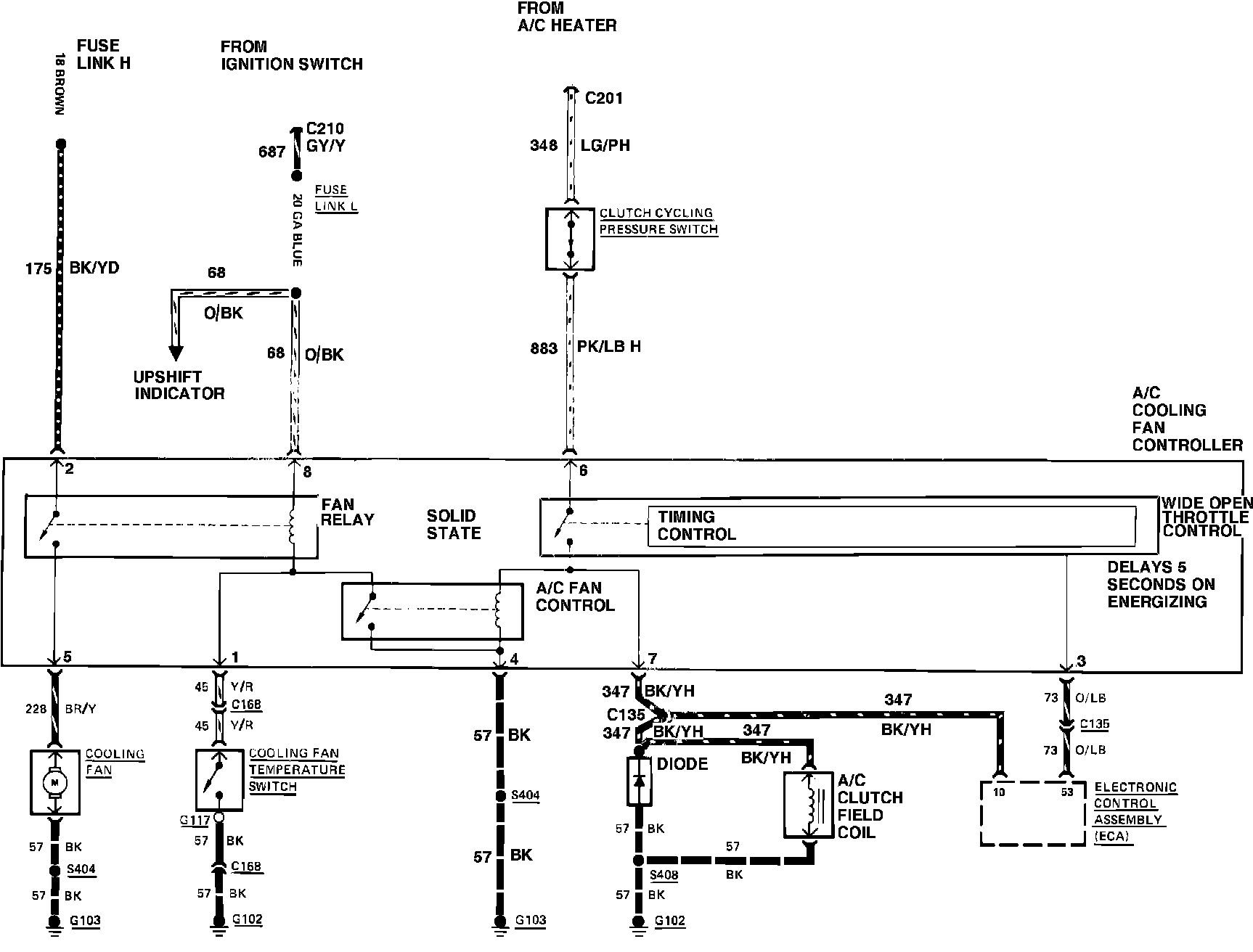

Fig. 15 Cooling Fan Wiring Circuit (Less Turbo). 1985 4 Cylinder:
