Courtesy Lamp: Service and Repair

INTERIOR LIGHT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. A-pillar trim A-Pillar Trim Removal/Installation

b. Sunvisor Service and Repair

c. Map light Map Light Removal/Installation

d. Assist handle Service and Repair

e. Front scuff plate Front Scuff Plate Removal/Installation

f. Rear scuff plate Rear Scuff Plate Removal/Installation

g. B-pillar lower trim B-Pillar Lower Trim Removal/Installation

h. Adjuster anchor cover Front Seat Belt Removal/Installation

i. Upper anchor of the front seat belt Front Seat Belt Removal/Installation

j. B-pillar upper trim B-Pillar Upper Trim Removal/Installation

k. Sub-trunk Sub-Trunk Removal/Installation

l. Trunk end trim Trunk End Trim Removal/Installation

m. Third-row seat Rear - Third-Row Seat Removal/Installation

n. Third-row seat belt lower anchor installation bolt Third-Row Seat Belt Removal/Installation

o. Cargo compartment light Service and Repair

p. Trunk side trim

q. Second-row seat belt upper anchor installation bolt Second-Row Seat Belt Removal/Installation

r. Rear header trim Rear Header Trim Removal/Installation

s. C-pillar trim C-Pillar Trim Removal/Installation

t. Headliner Service and Repair

3. Release the tabs and remove the bulb housing.






NOTE:
- The bulb housing and the wiring harness have been integrated and attached to the headliner. When replacing the bulb housing, remove the wiring harness which passes under the urethane by cutting the urethane.

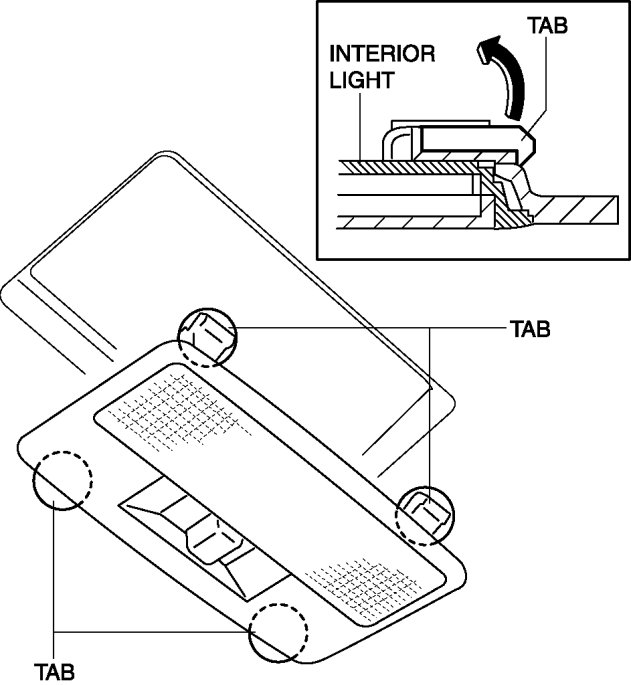

4. Pull the tabs shown in the figure in the direction of the arrow, and detach the tabs.






5. Remove the interior light.

6. Install in the reverse order of removal.

NOTE:
- After installing the wiring harness, reinforce the urethane that was cut when removing the bulb housing with vinyl tape.
