Rear Speaker Inspection

REAR SPEAKER INSPECTION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Rear scuff plate Rear Scuff Plate Removal/Installation

b. Sub-trunk Sub-Trunk Removal/Installation

c. Trunk end trim Trunk End Trim Removal/Installation

d. Third-row seat Rear - Third-Row Seat Removal/Installation

e. Third-row seat belt lower anchor installation bolt Third-Row Seat Belt Removal/Installation

f. Cargo compartment light Service and Repair

g. Trunk side trim

h. Rear header trim Rear Header Trim Removal/Installation

i. Second-row seat belt upper anchor installation bolt Second-Row Seat Belt Removal/Installation

j. C-pillar trim C-Pillar Trim Removal/Installation

k. Rear speaker Rear Speaker Removal/Installation

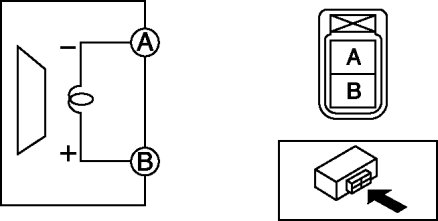

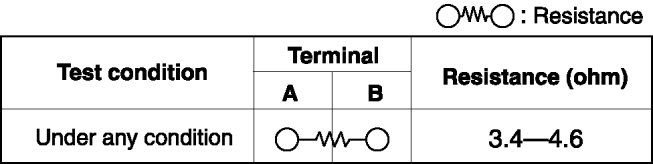

3. Verify the resistance between the rear speaker terminals.






- If not within the specification, replace the rear speaker.
