Rear Speaker Removal/Installation

REAR SPEAKER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Rear scuff plate Rear Scuff Plate Removal/Installation

b. Sub-trunk Sub-Trunk Removal/Installation

c. Trunk end trim Trunk End Trim Removal/Installation

d. Third-row seat Rear - Third-Row Seat Removal/Installation

e. Third-row seat belt lower anchor installation bolt Third-Row Seat Belt Removal/Installation

f. Cargo compartment light Service and Repair

g. Trunk side trim

h. Rear header trim Rear Header Trim Removal/Installation

i. Second-row seat belt upper anchor installation bolt Second-Row Seat Belt Removal/Installation

j. C-pillar trim C-Pillar Trim Removal/Installation

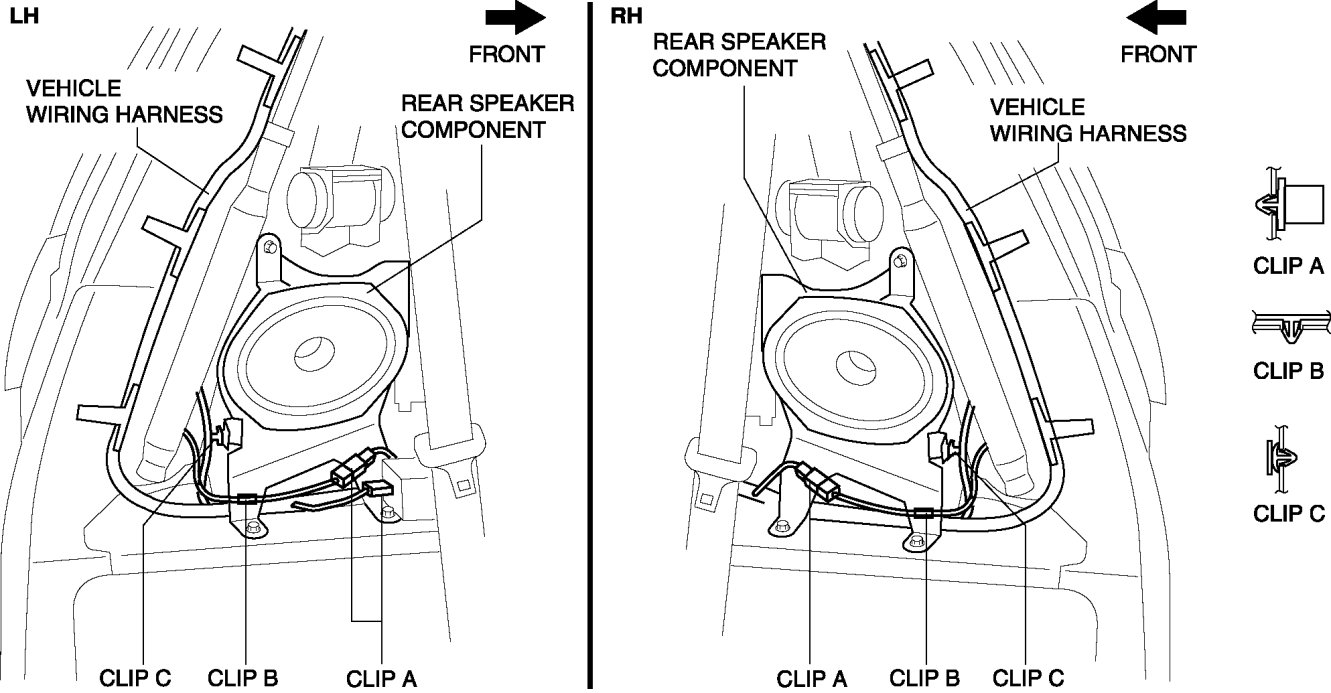

3. Detach clips A, B, and C, and set the vehicle wiring harness aside.

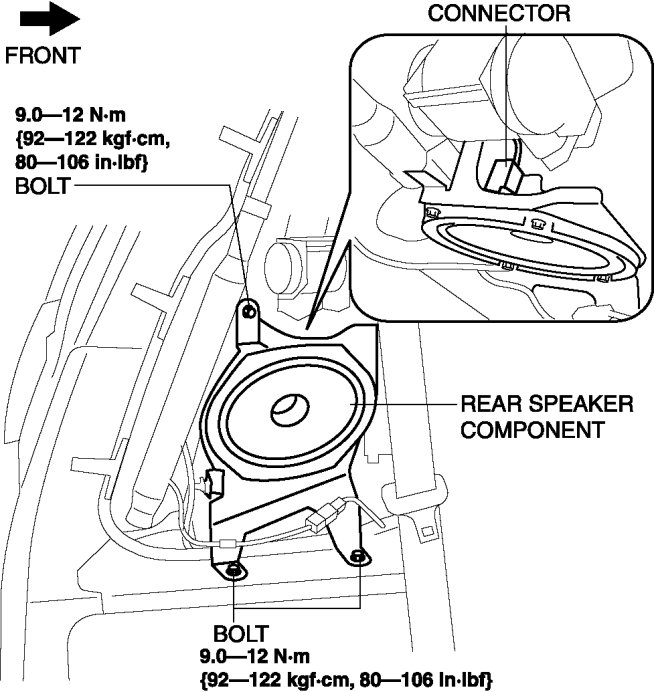

4. Remove the bolts.






5. Disconnect the connector.

6. Remove the rear speaker component.

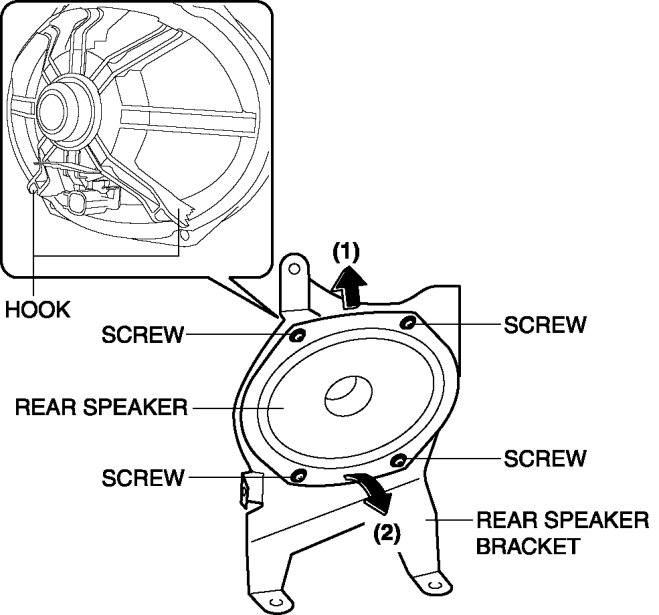

7. Remove the screws.






8. Move the rear speaker in the direction of arrow (1) shown in the figure, and pull it out in the direction of arrow (2) shown in the figure while releasing the hooks.

9. Install in the reverse order of removal.
