Programming and Relearning

INSTRUMENTATION/DRIVER INFO. PERSONALIZATION FEATURES SETTING PROCEDURE

Instrument cluster

1. Connect the M-MDS (IDS) to the DLC-2.

2. After the vehicle is identified, select the following items from the initialization screen of the IDS.
a. Select "Module Programming".

b. Select "Programmable Parameters".

3. Then, select items from the screen menu in the following order.
a. Select "IC"

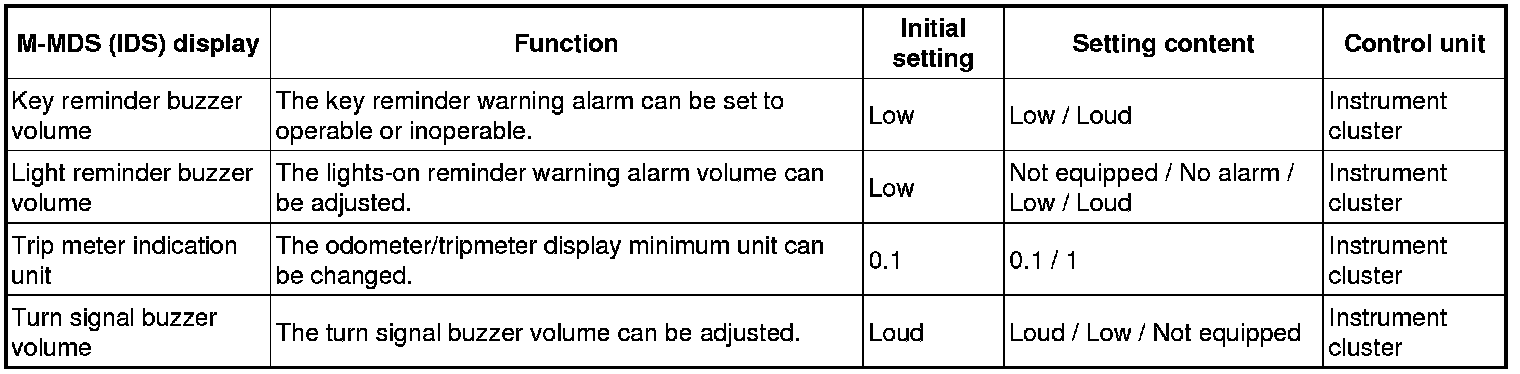

4. Select the following items and change the setting.
