Mazda
>>
2007
>>
5 L4-2.3L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Seat Temperature Switch
>>
Locations
>>
Connector Locations
Connector Locations

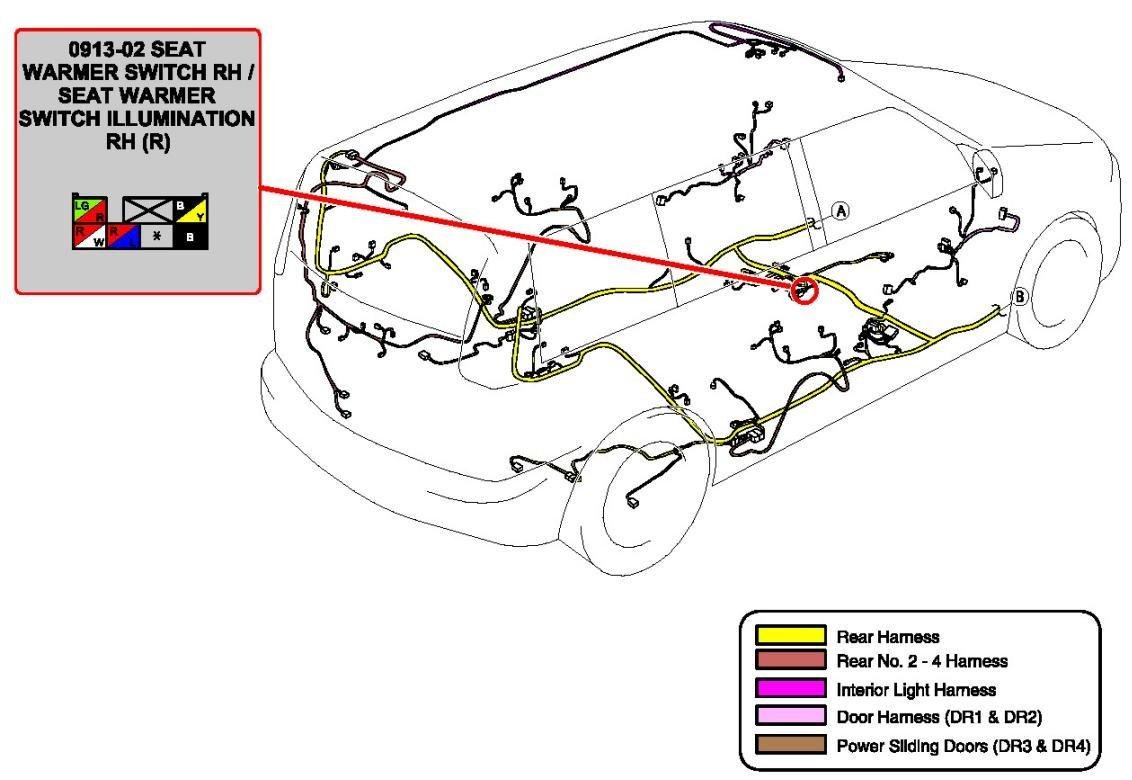

Seat Warmer Switch RH/Seat Warmer Switch Illumination RH:

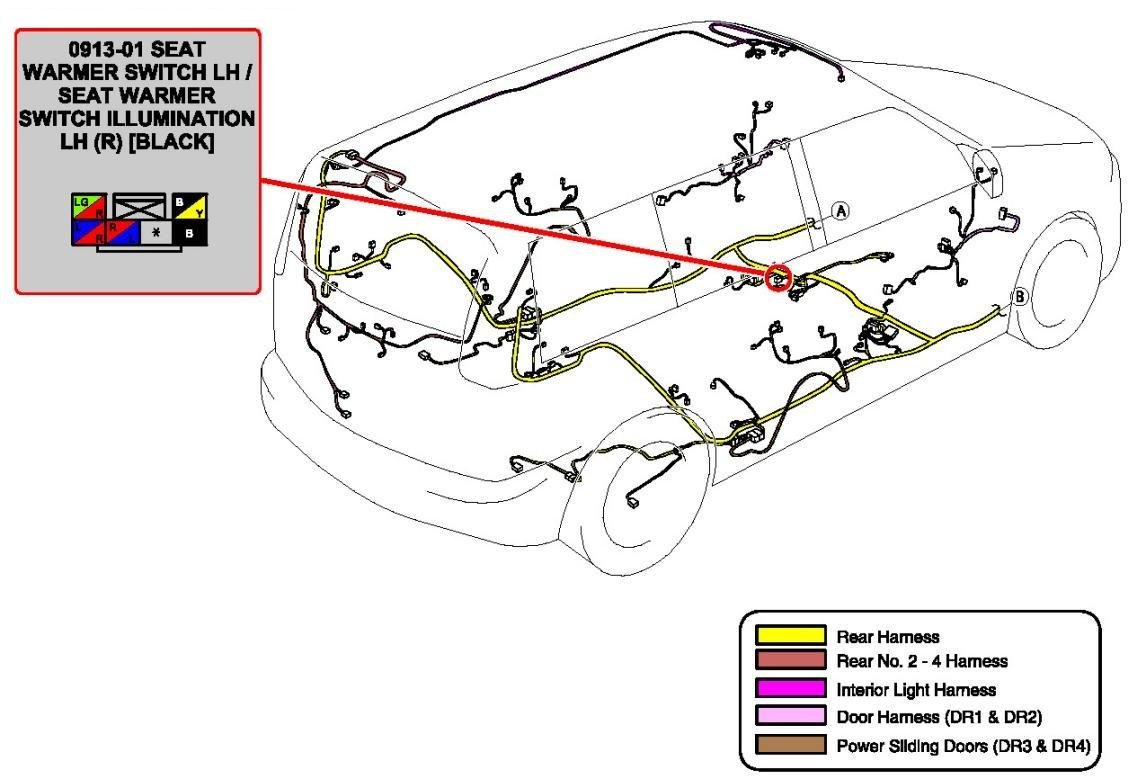

Seat Warmer Switch LH/Seat Warmer Switch Illumination LH:
