Home >> Mazda >> 2005 >> 6 L4-2.3L >> Repair and Diagnosis >> Lighting and Horns >> Dimmer Switch >> Locations

Dimmer Switch: Locations

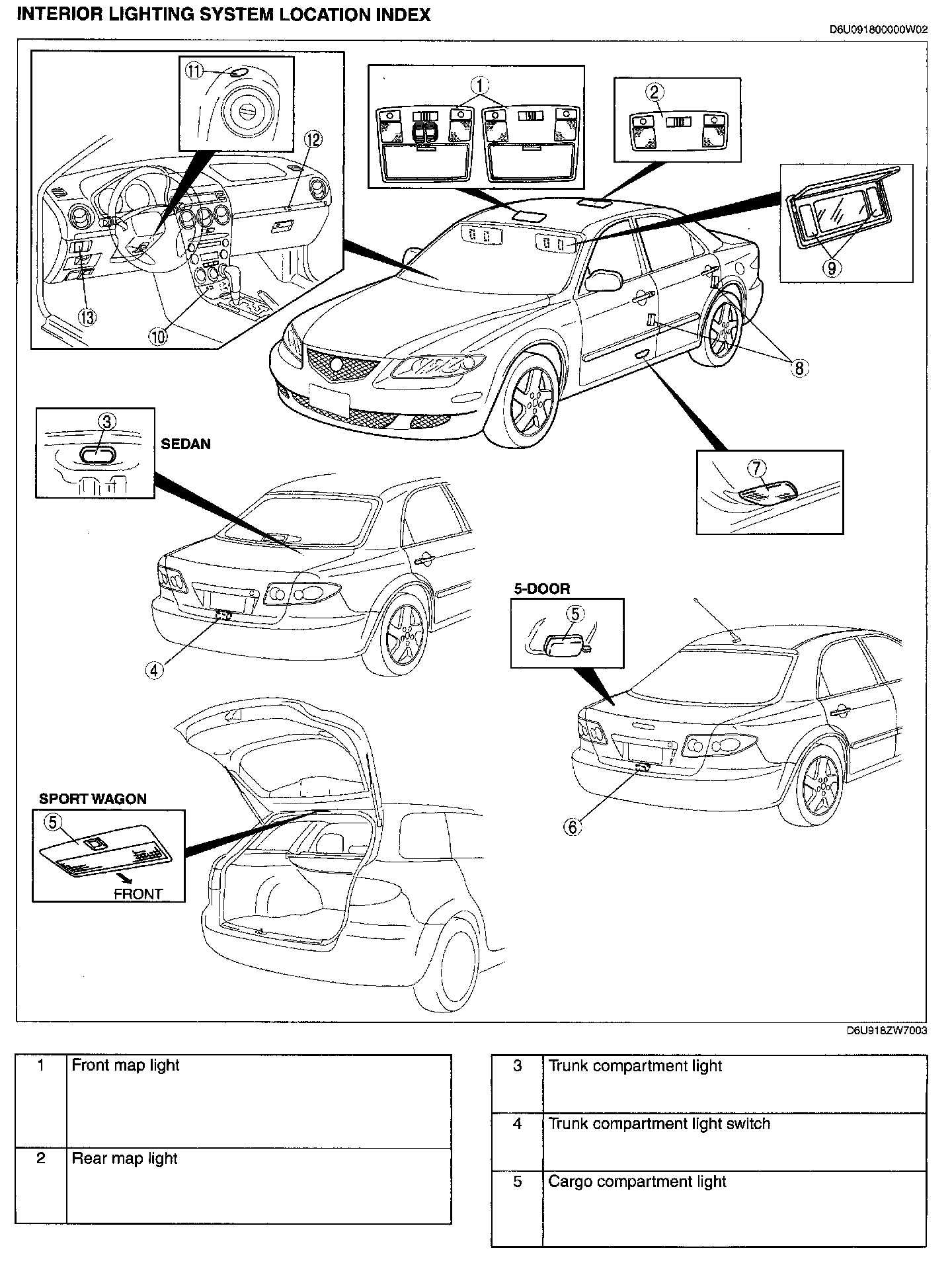

Interior Lighting System Location Part 1:

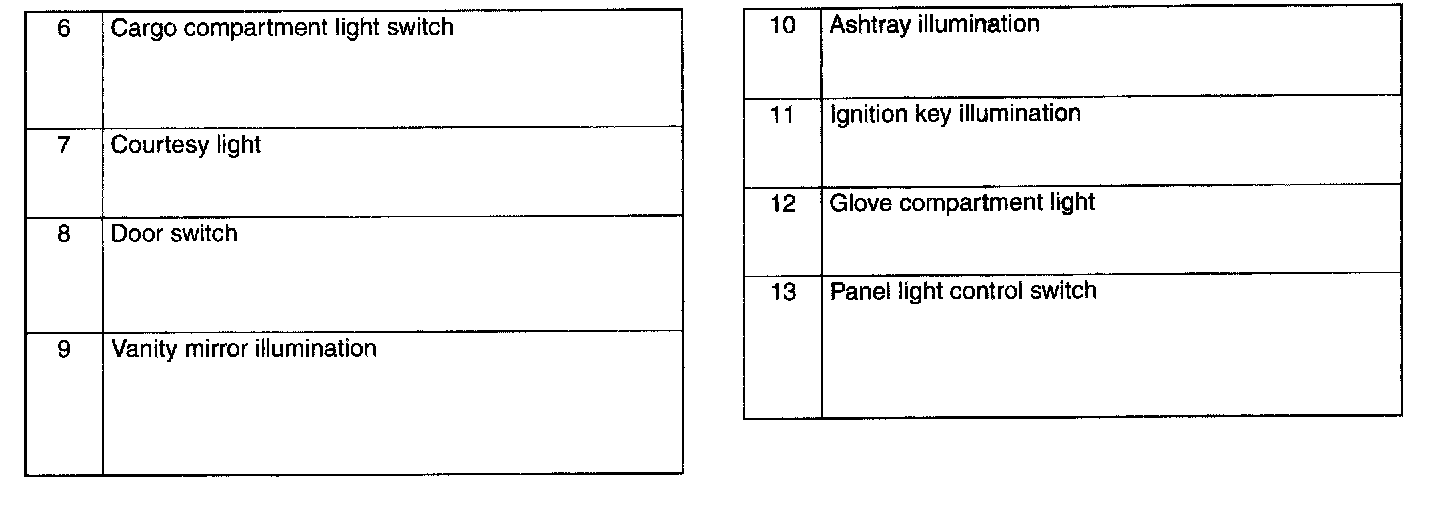

Interior Lighting System Location Part 2:
