Home
>>
Mazda
>>
2004
>>
MX-5 Miata L4-1.8L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
Cylinder Block Assembly
>>

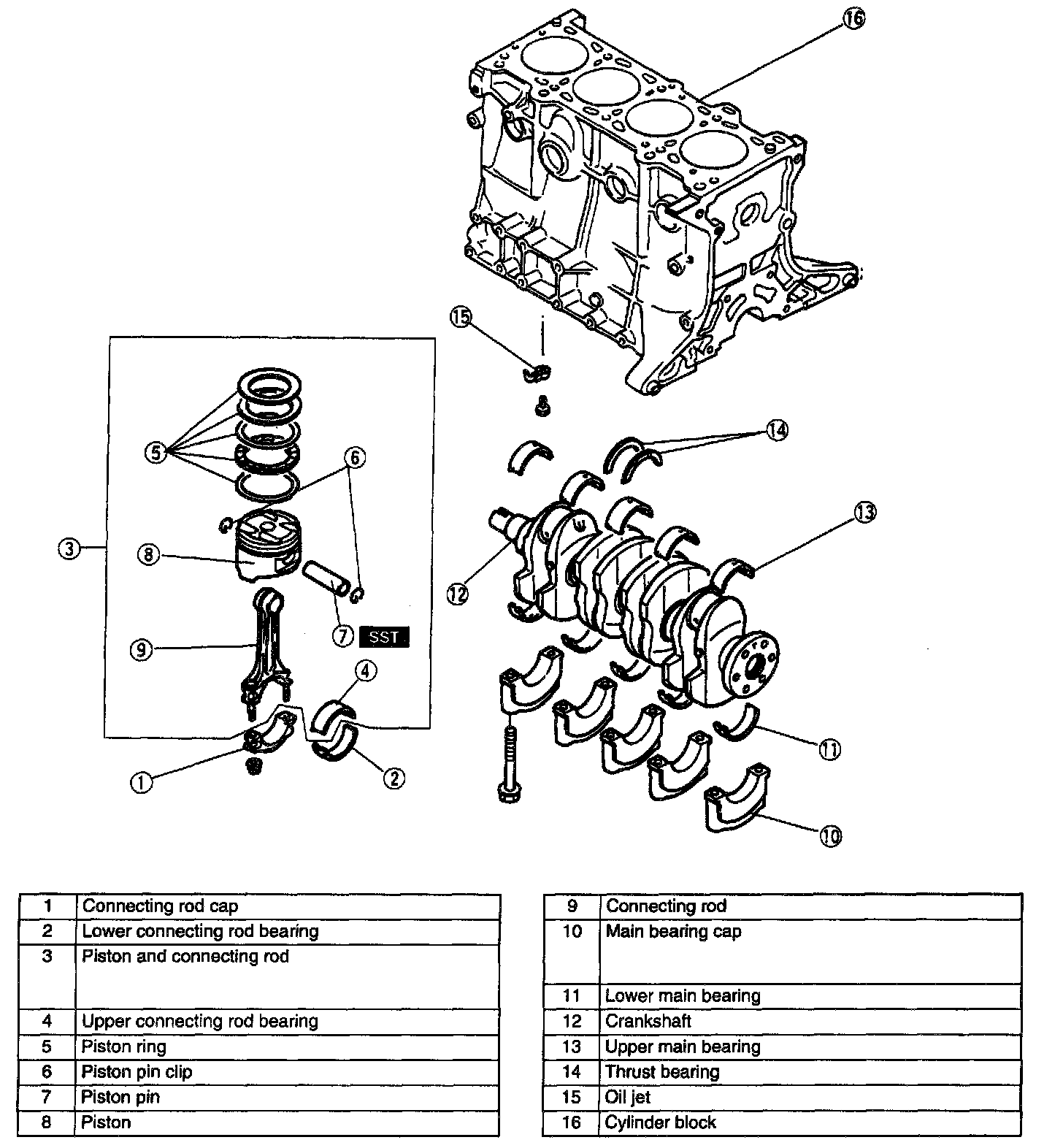

Cylinder Block Disassembly (II)
Cylinder Block Disassembly (II)
