Home >> Mazda >> 2002 >> Millenia P V6-2.5L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> Locations

Data Link Connector: Locations

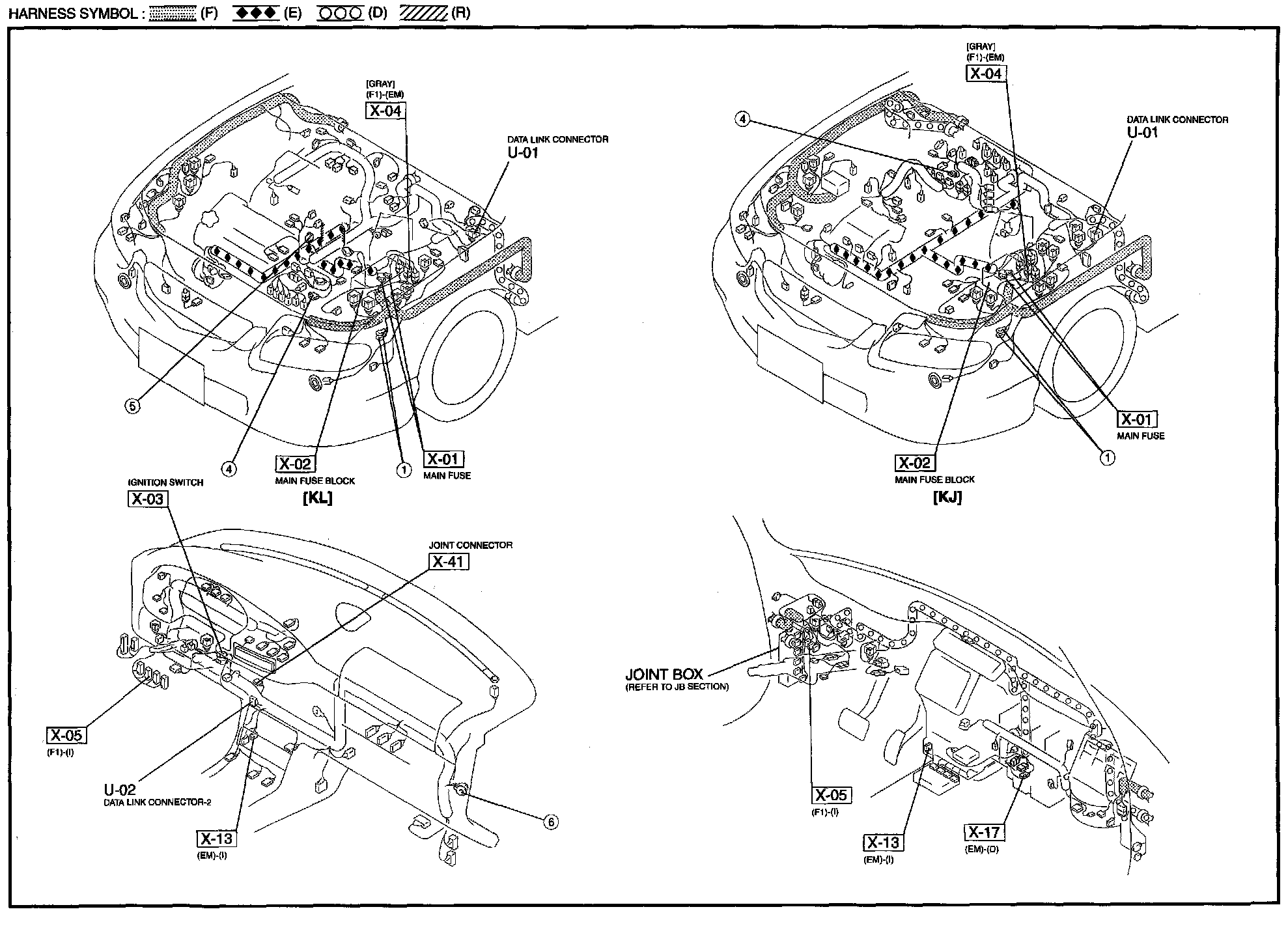

U - Data Link Connector Harness/Connector Symbols:
