Mazda
>>
2001
>>
Millenia P V6-2.5L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Control System
Control System

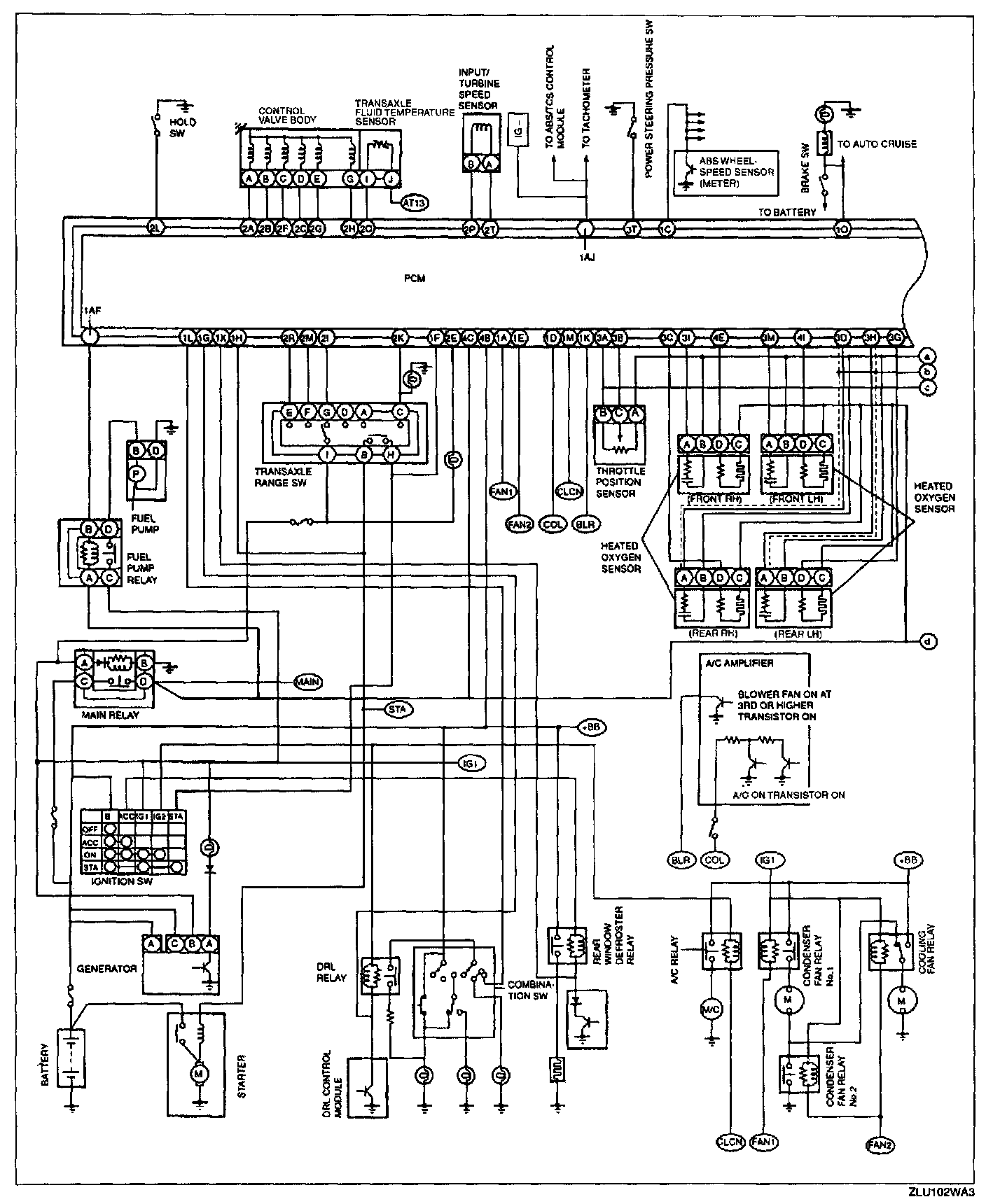

Control System Wiring Diagram - Part 1:

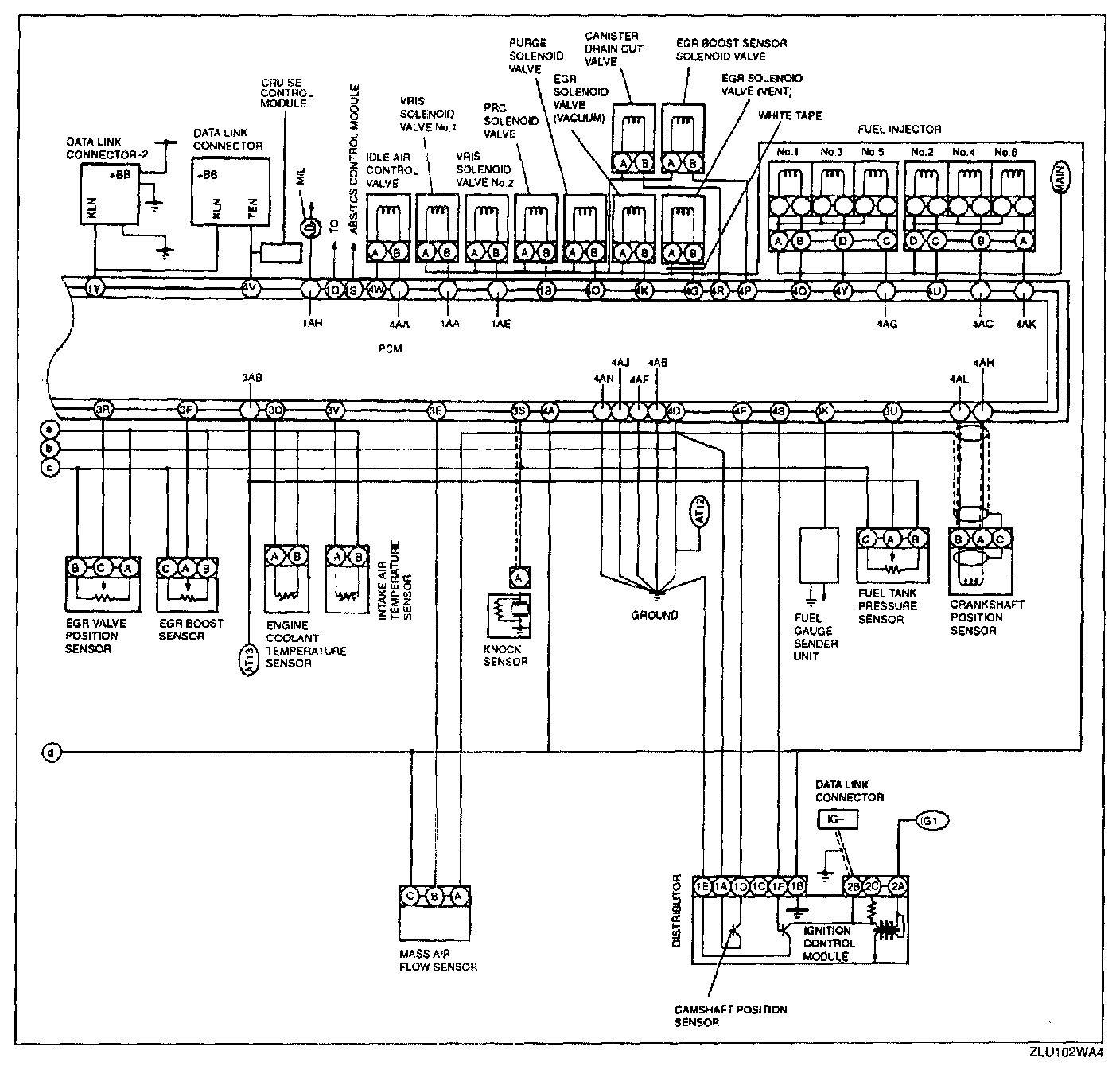

Control System Wiring Diagram - Part 2:
