Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mazda
>>
1997
>>
MX-6 L4-2.0L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Exploded Views
>>
MTX
MTX
Emission Control System Structural View (Rear):

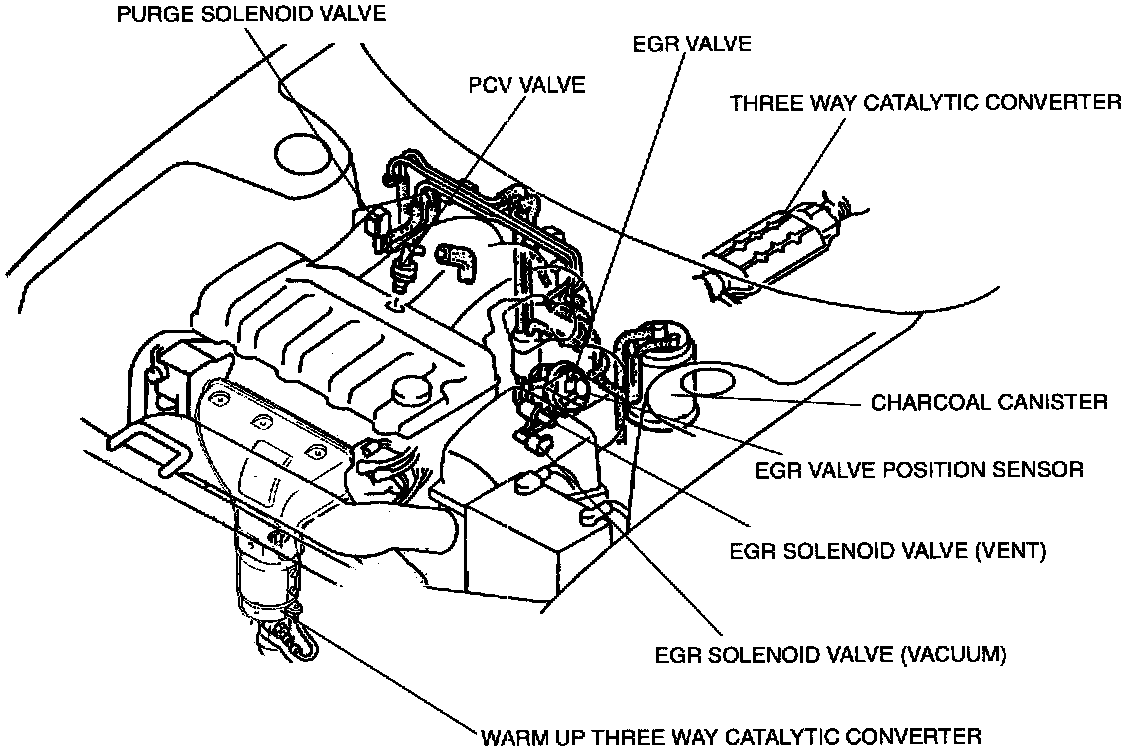

Emission Control System Structural View (Front):
