Home
>>
Mazda
>>
1995
>>
Millenia V6-2496cc 2.5L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Relays and Modules - Computers and Control Systems
>>
Engine Control Module
>>
Locations
>>

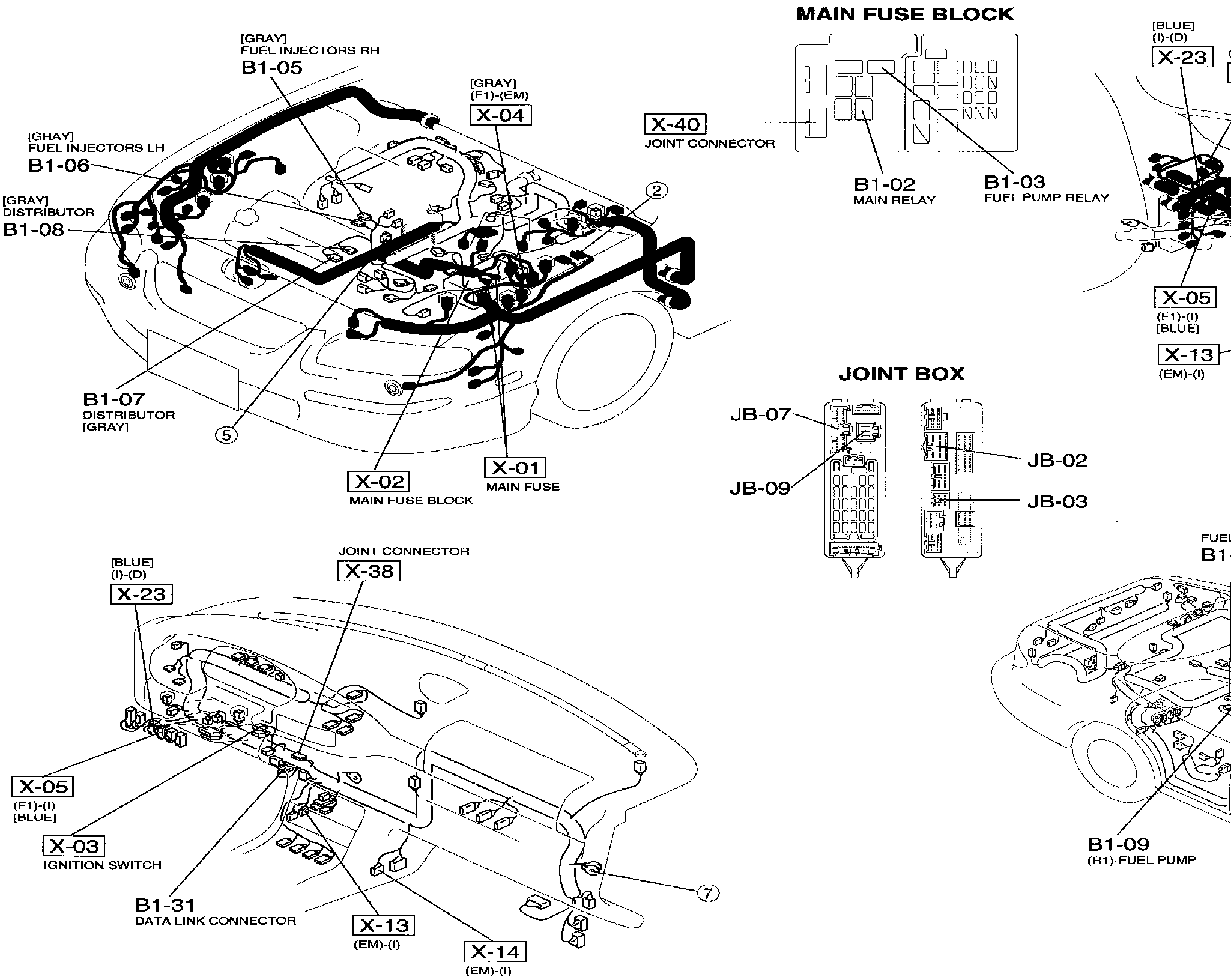

Connector Locations
>>
B-1A
B-1A
Y� Connector Locations:
