Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mazda
>>
1995
>>
626 L4-1991cc 2.0L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
EGR Valve Position Sensor
>>
Specifications
>>
Automatic Trans.
Automatic Trans.

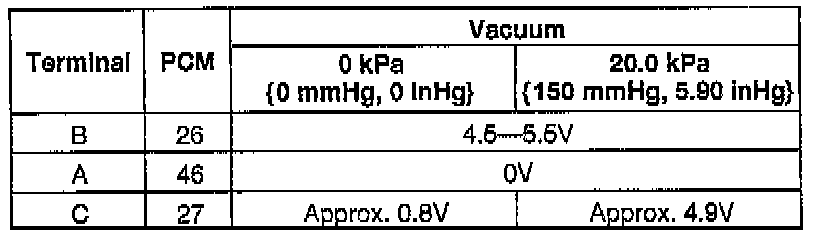

OUTPUT VOLTAGE CHART

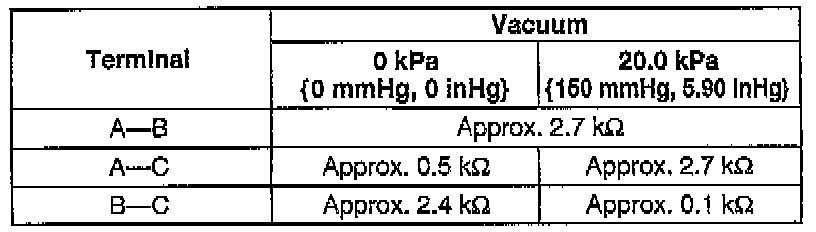

RESISTANCE CHART
