Mazda
>>
1993
>>
MX-3 V6-1844cc 1.8L DOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Automatic Transmission/Transaxle
Automatic Transmission/Transaxle

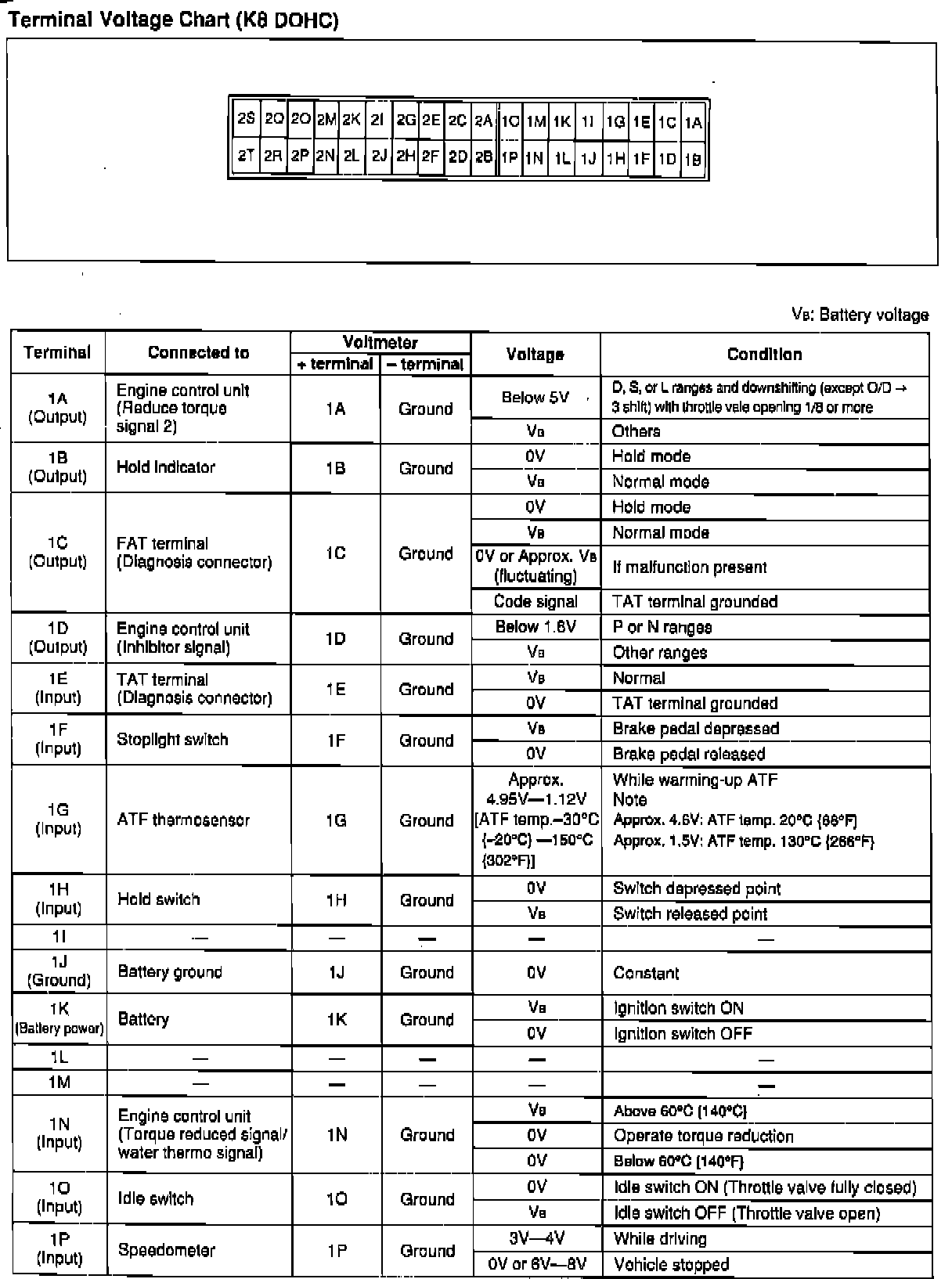

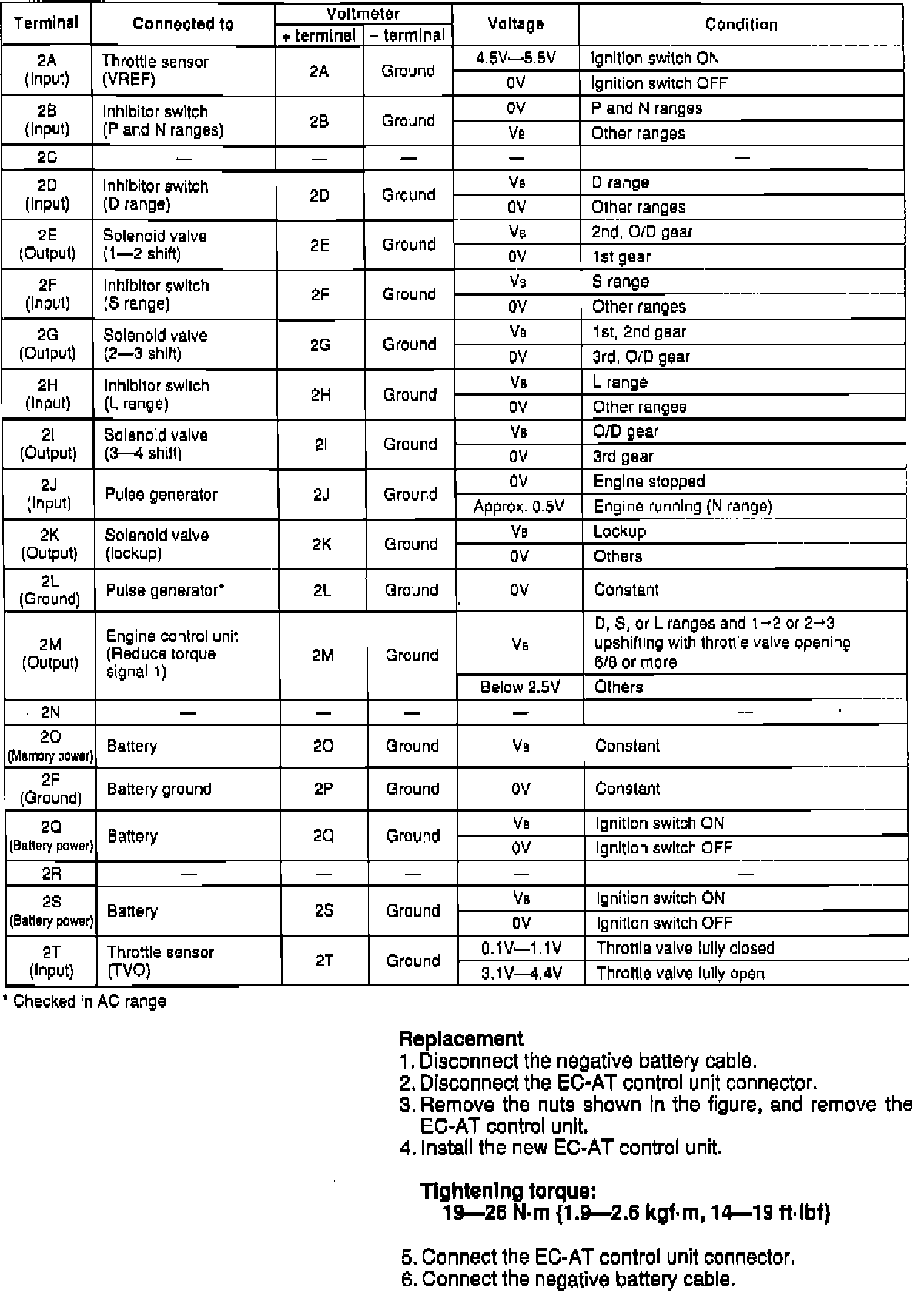

ECU Pin Voltage Chart:
ECU Pin Voltage Chart:
