Mazda
>>
1993
>>
626 V6-2496cc 2.5L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Locations
>>
Connector Locations
>>
Engine and Ignition Control System
>>
Part 2 of 2
Part 2 of 2

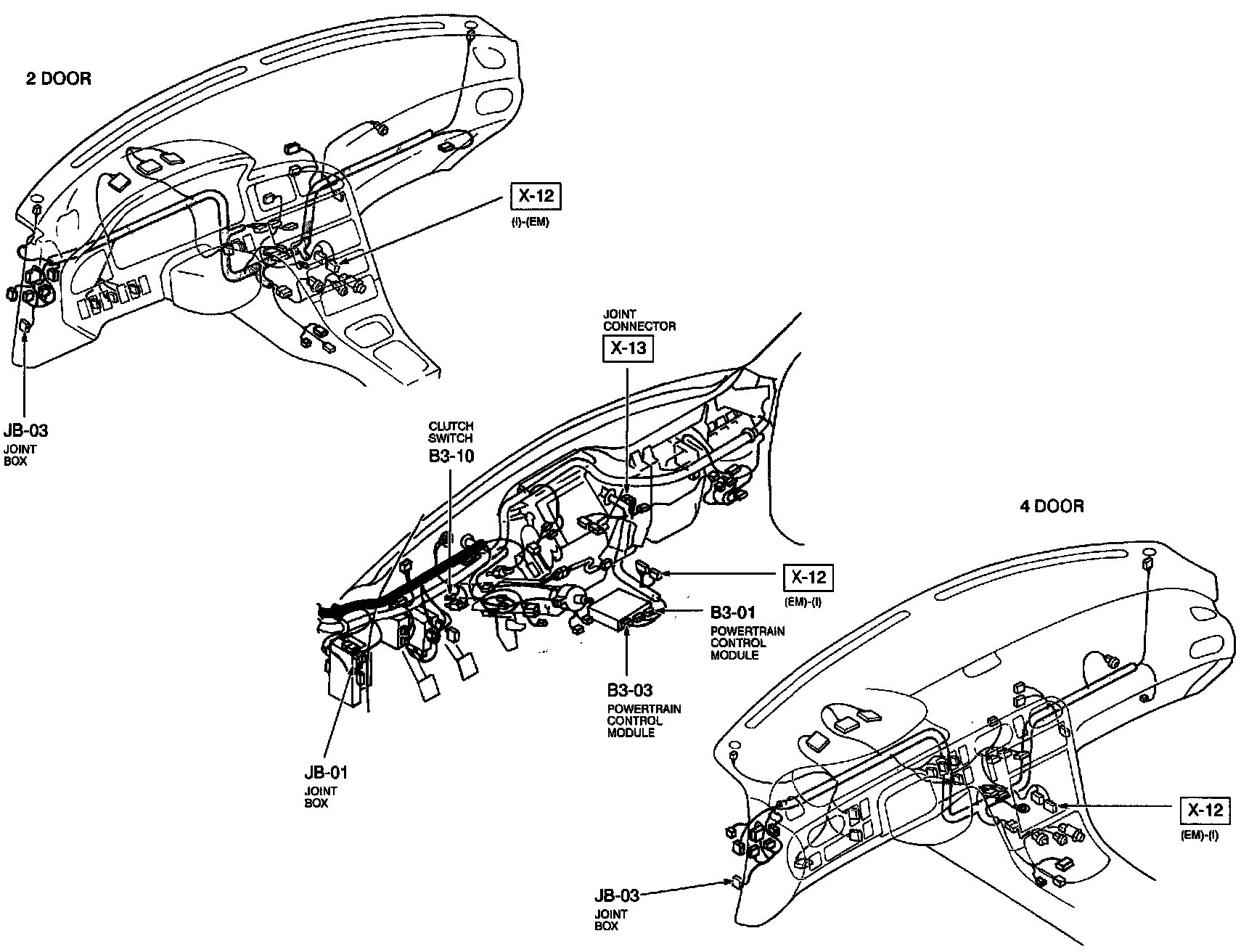

Component Location:

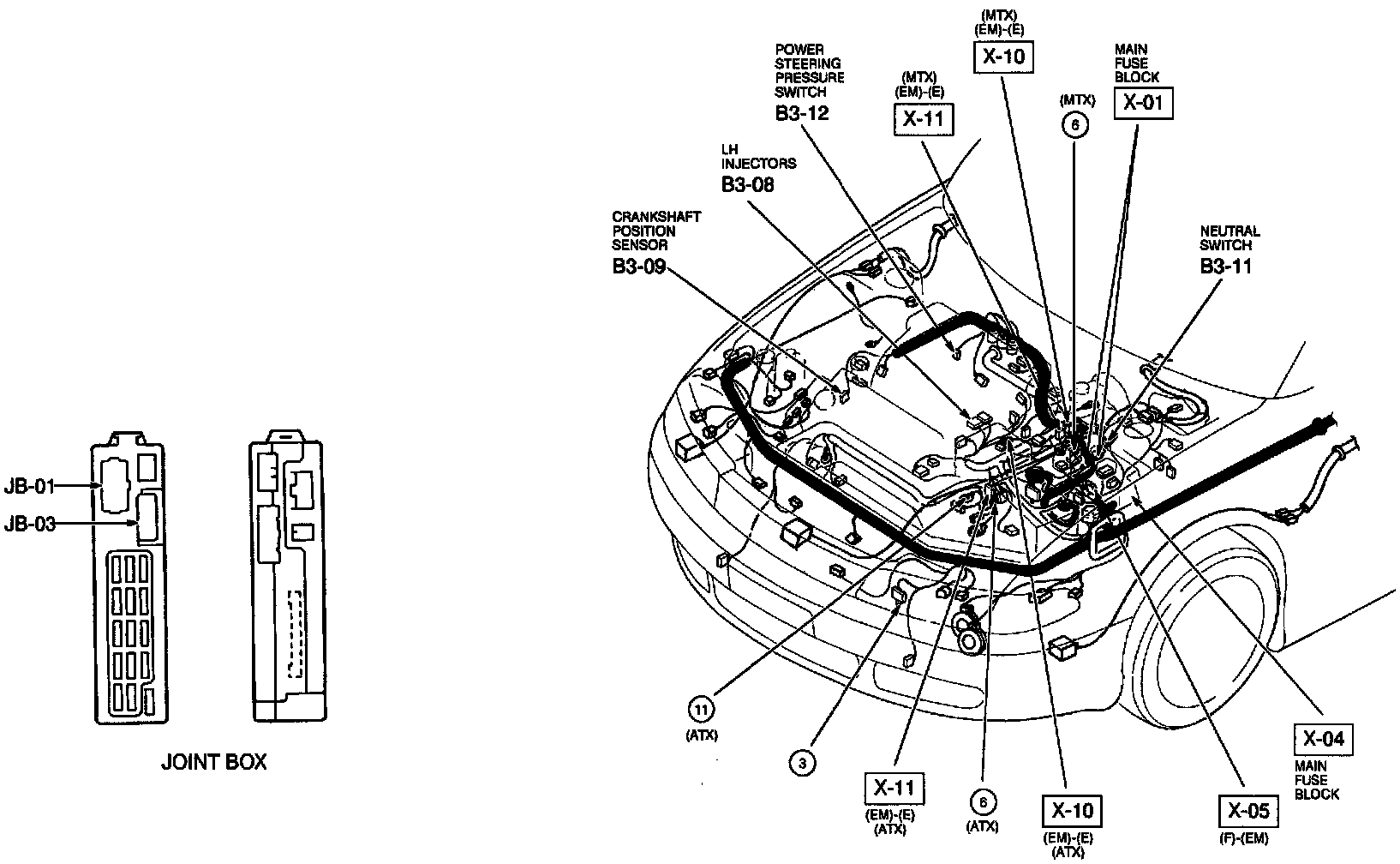

Component Location:
