Home
>>
Mazda
>>
1993
>>
626 L4-1991cc 2.0L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Locations
>>
Component Locations
>>
Automatic Transmission and Engine Control System
>>
Part 2 of 4
Part 2 of 4

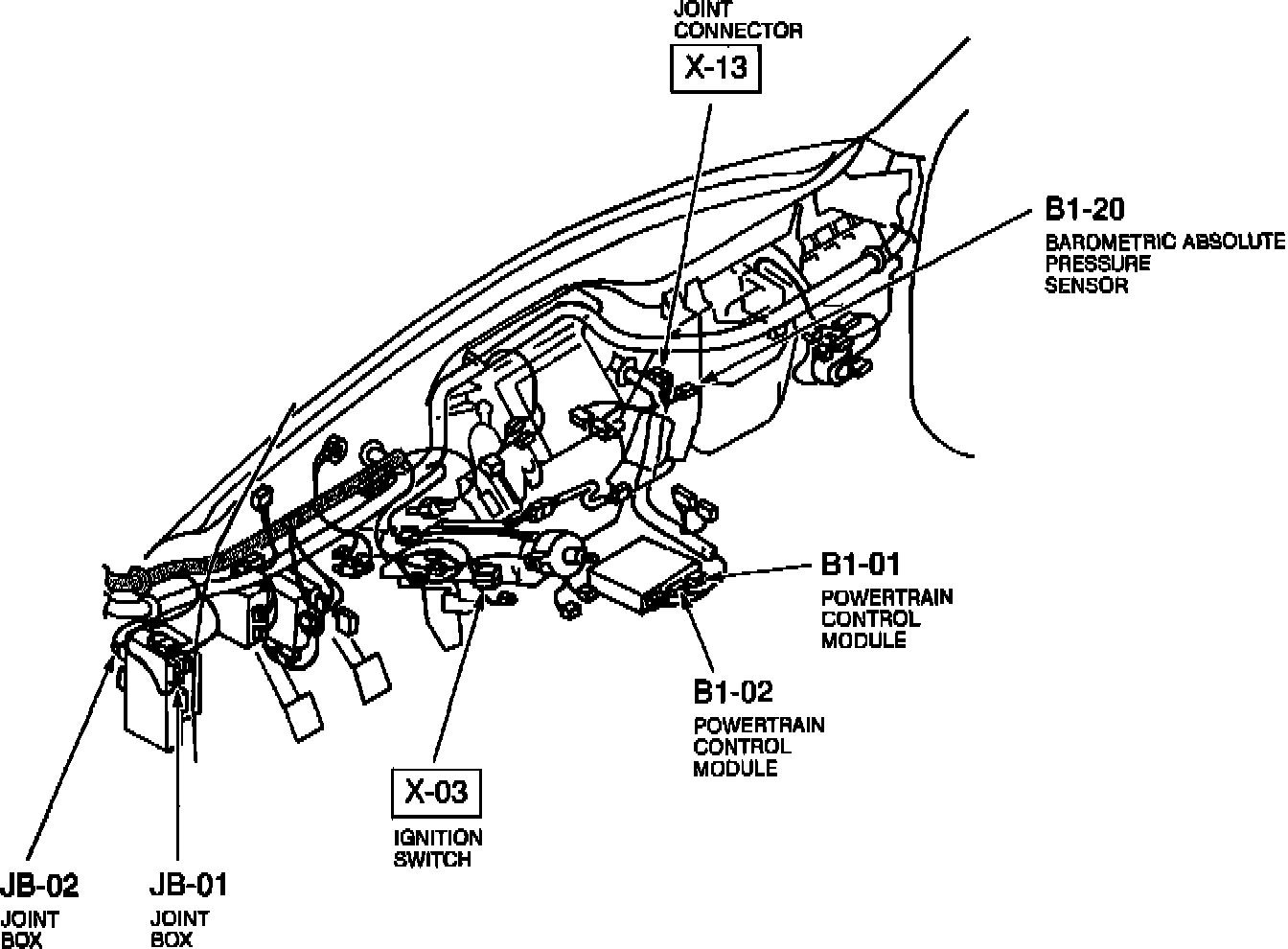

Component Location:

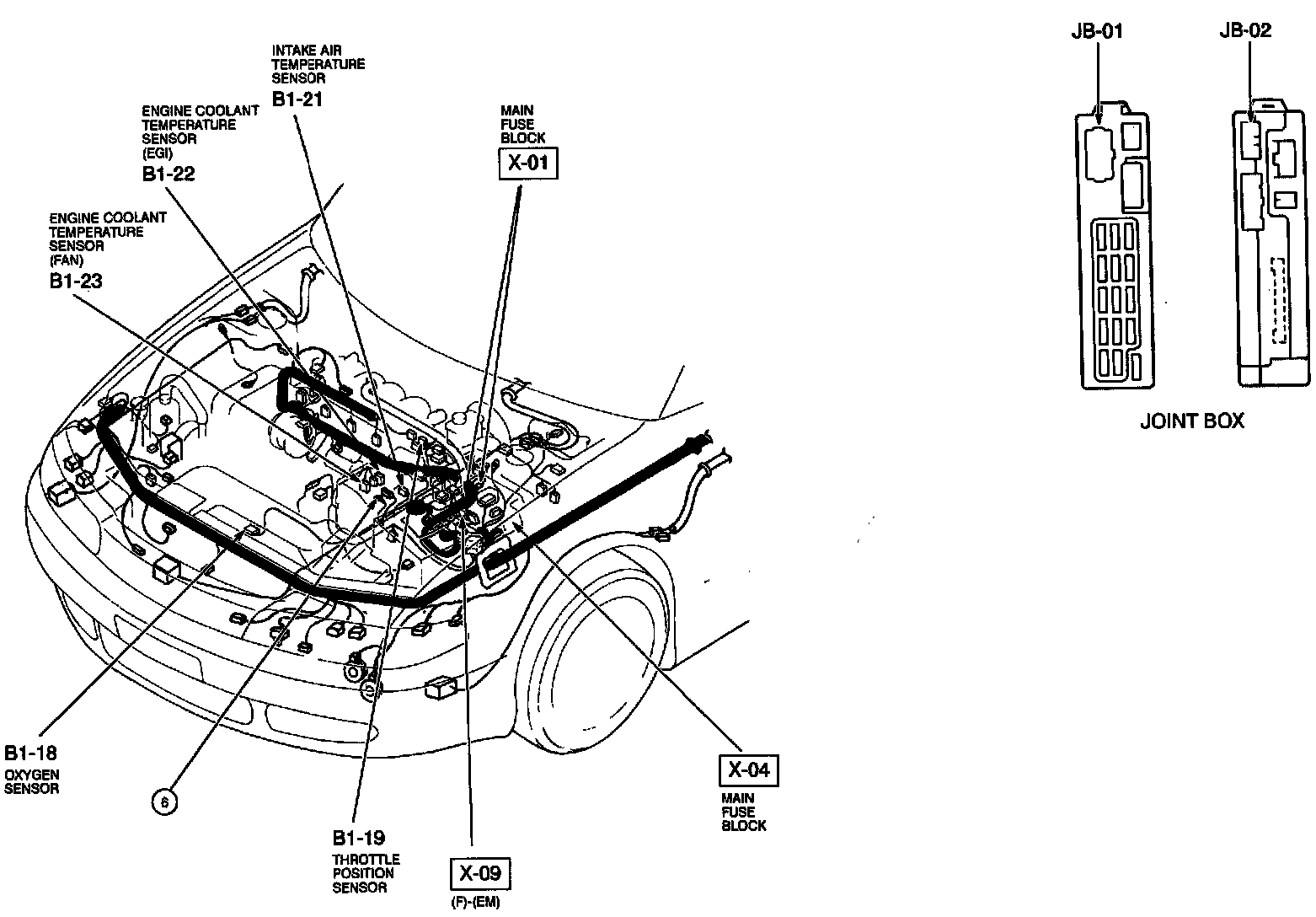

Component Location:
