Automatic Transmission Engine and Ignition Control System
Automatic Transmission Engine and Ignition Control System

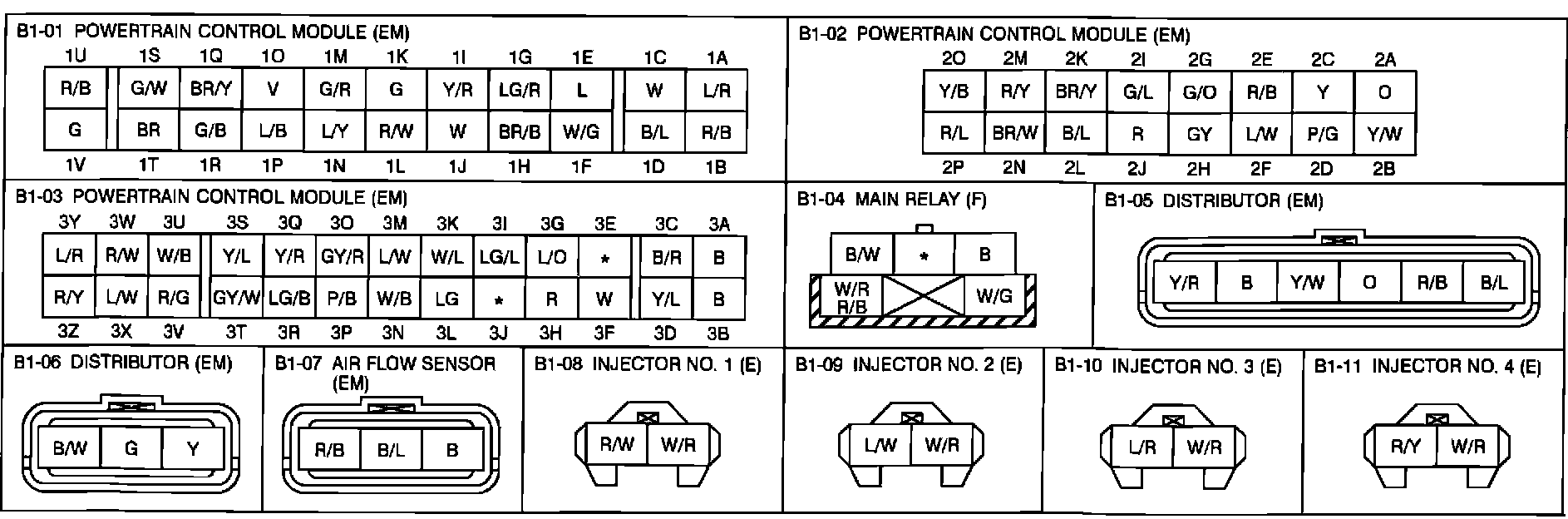

Connector Identification:
