Home >> Mazda >> 1991 >> RX7 2RTR-1308cc 1.3L MFI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations >> Connector Locations >> Part 2 of 3

Part 2 of 3

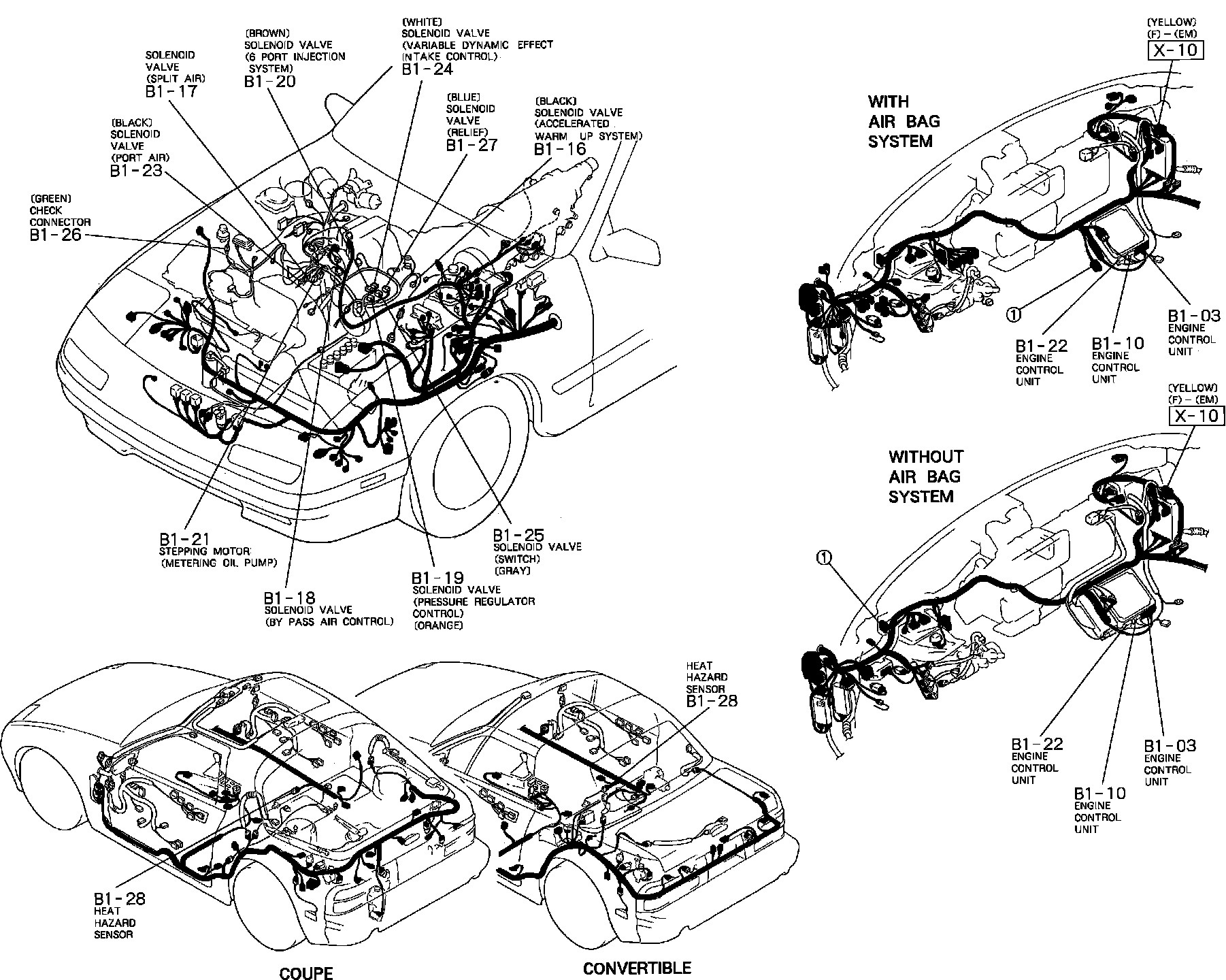

Engine Control System. Non-Turbo. Harness And Connector Locations:
