RX7 2RTR-1308cc 1.3L MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Convertible
Convertible

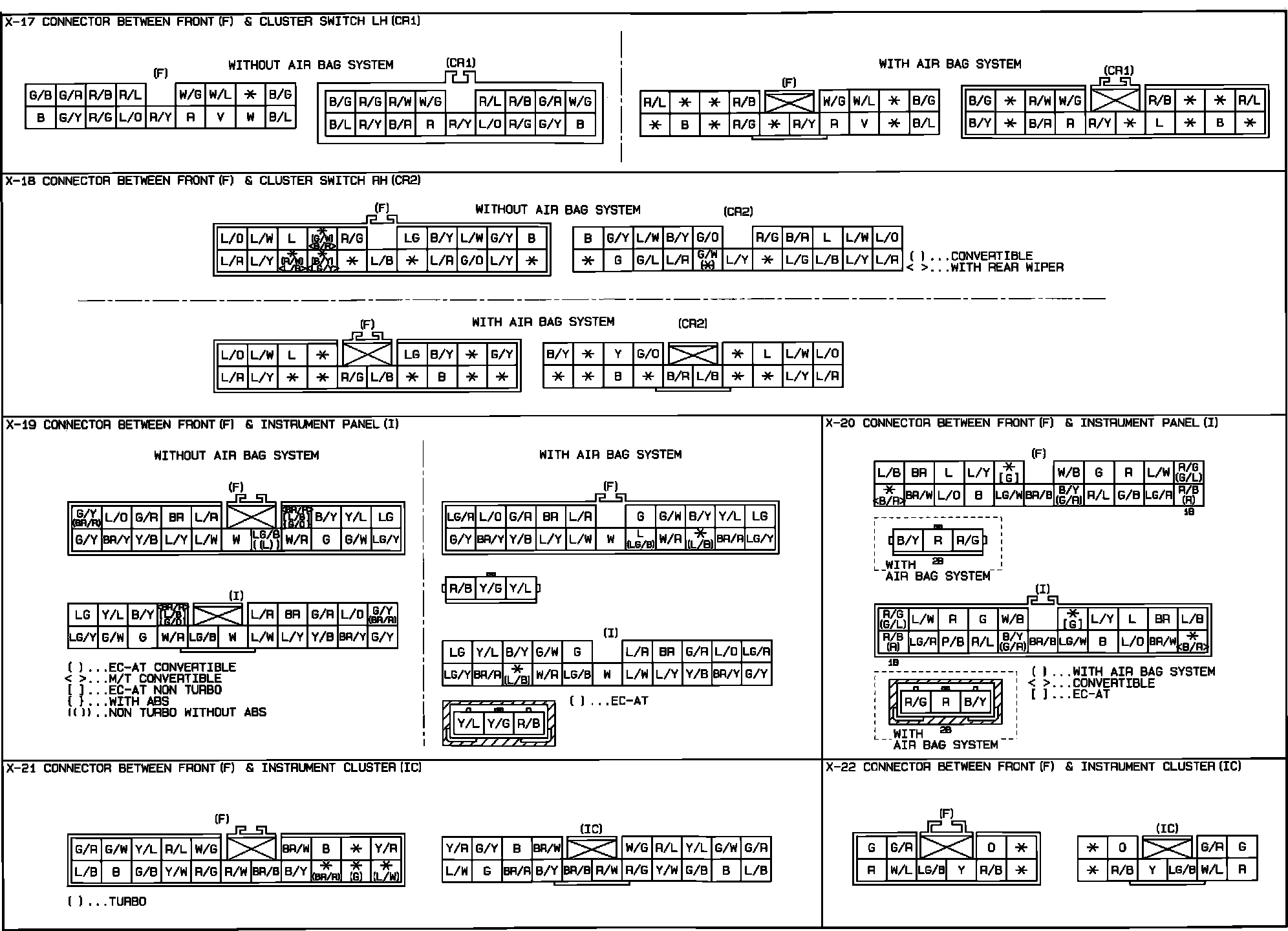

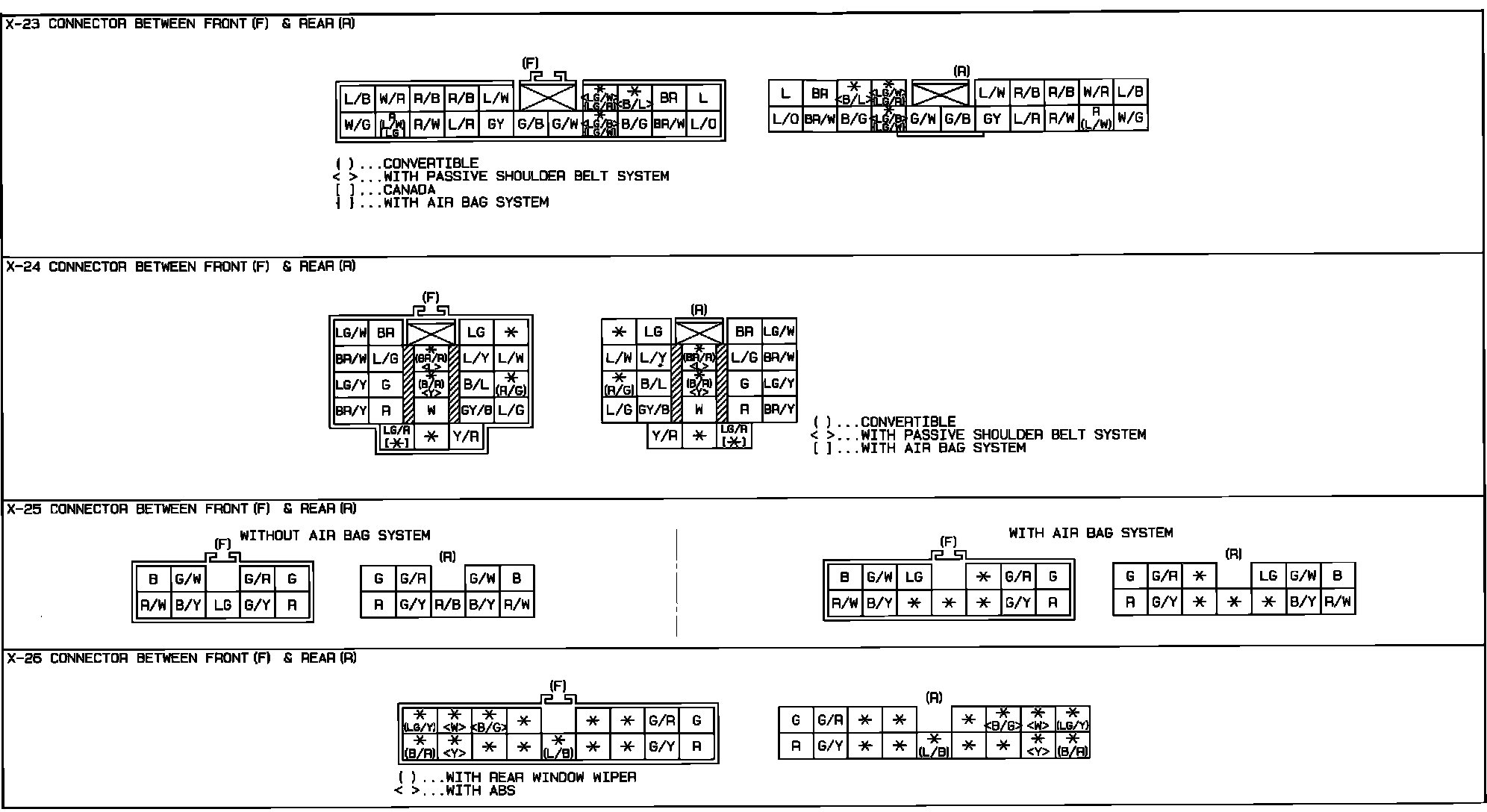

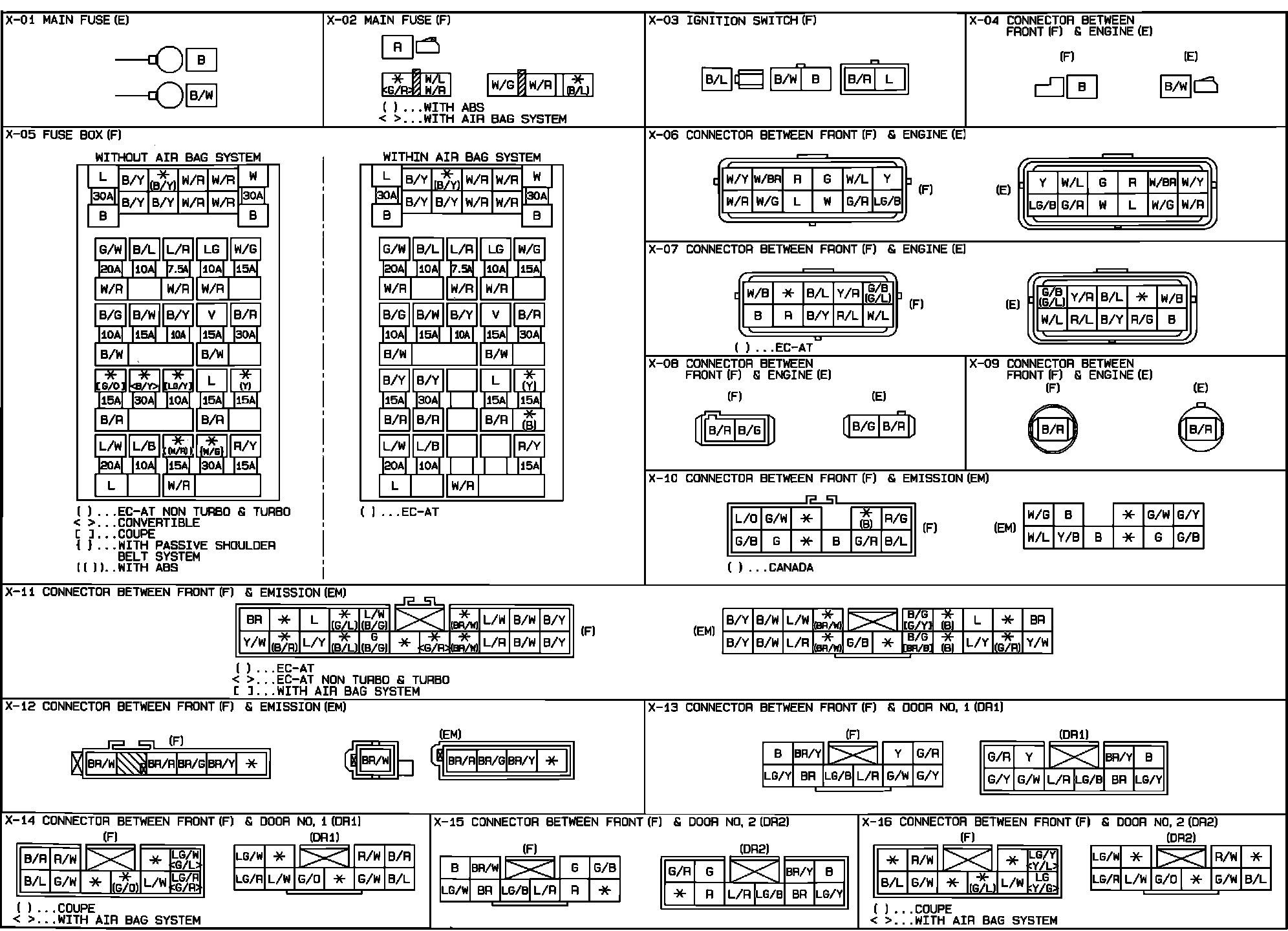

Ground Distribution. With Air Bag. Connector Identification:

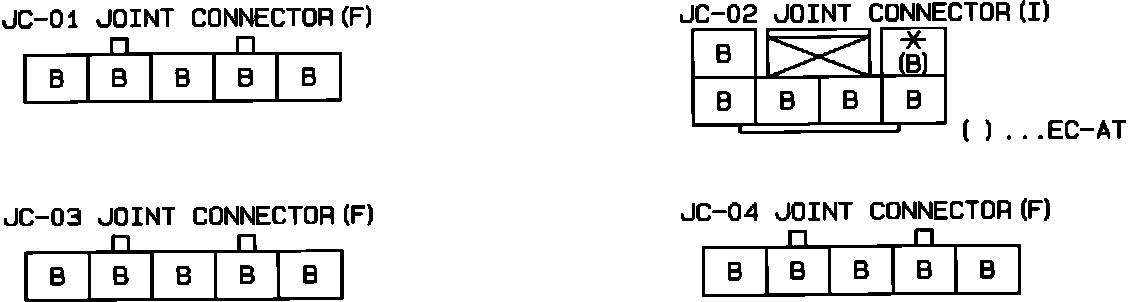

Common Connector List:
Common Connector List:
Common Connector List:
