Mazda
>>
1988
>>
626 L4-2184cc 2.2L SOHC F2
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Computers and Control Systems
>>
System Specifications
System Specifications

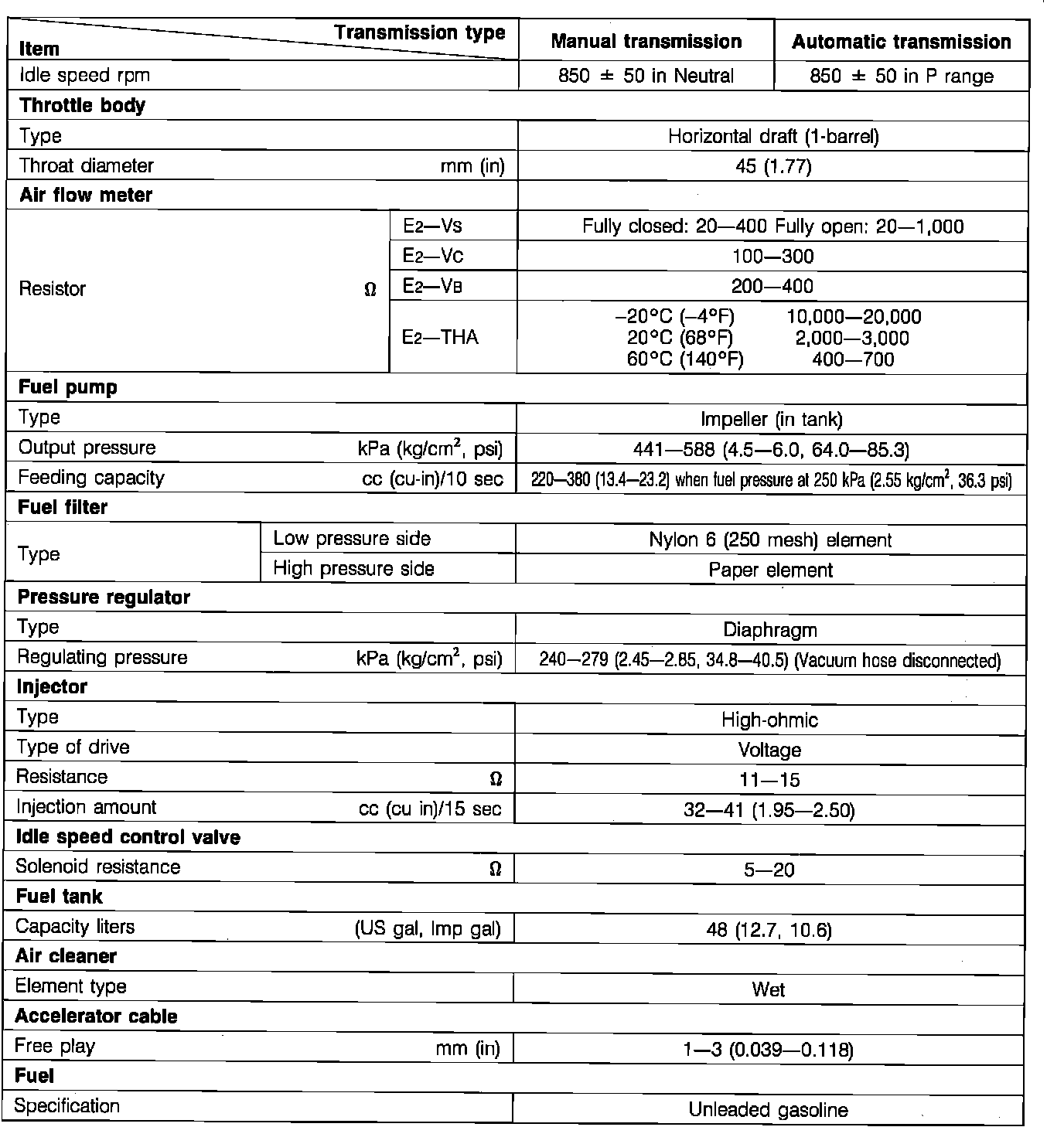

Fig. 10 Specifications.:
