Parking Brake Lever: Service and Repair
PARKING BRAKE REMOVAL/INSTALLATION [AWD]
CAUTION:
- Performing the following procedures without first removing the ABS wheel-speed sensor may possibly cause an open circuit in the harness if it is pulled by mistake. Before performing the following procedures, remove the ABS wheel-speed sensor (axle side) and fix it to an appropriate place where the sensor will not be pulled by mistake while servicing the vehicle.
1. Perform the following procedure and remove the parking brake pedal.
a. Remove the dashboard under cover (LH). Dashboard Under Cover Removal/Installation
2. Perform the following procedure and remove the front parking brake cable.
a. Remove the front seat (Driver side). Front Seat Removal/Installation
b. Remove the decoration panel. Decoration Panel Removal/Installation
c. Remove the front console box mat. Front Console Box Mat Removal/Installation
d. Remove the indicator panel. Indicator Panel Removal/Installation
e. Remove the front console box. Front Console Box Removal/Installation
f. Remove the dashboard under cover (LH). Dashboard Under Cover Removal/Installation
g. Remove the side wall. Side Wall Removal/Installation
h. Remove the console panel. Console Panel Removal/Installation
i. Remove the console cover. Console Cover Removal/Installation
j. Remove the console. Console Removal/Installation
k. Remove the dust cover.
l. Remove the front side trim (LH). Front Side Trim Removal/Installation
m. Remove the front scuff plate (LH). Front Scuff Plate Removal/Installation
n. Remove the fuel-filler lid release lever cover.
o. Turn the floor covering over until the front parking brake cable cover appears.
p. Remove the rear heat duct (LH). Rear Heat Duct Component Removal/Installation
q. Remove the under guard (LH). Service and Repair
3. Perform the following procedure and remove the rear parking brake cable.
a. Remove the under guard. Service and Repair
4. Perform the following procedure and remove the parking brake plate, back plate and wheel hub.
a. Remove the rear ABS wheel-speed sensor from the trailing link. Rear
b. Remove the rear lateral link. Service and Repair
c. Remove the rear coil spring. Rear Suspension - Coil Spring Removal/Installation
d. Remove the trailing link component. Service and Repair

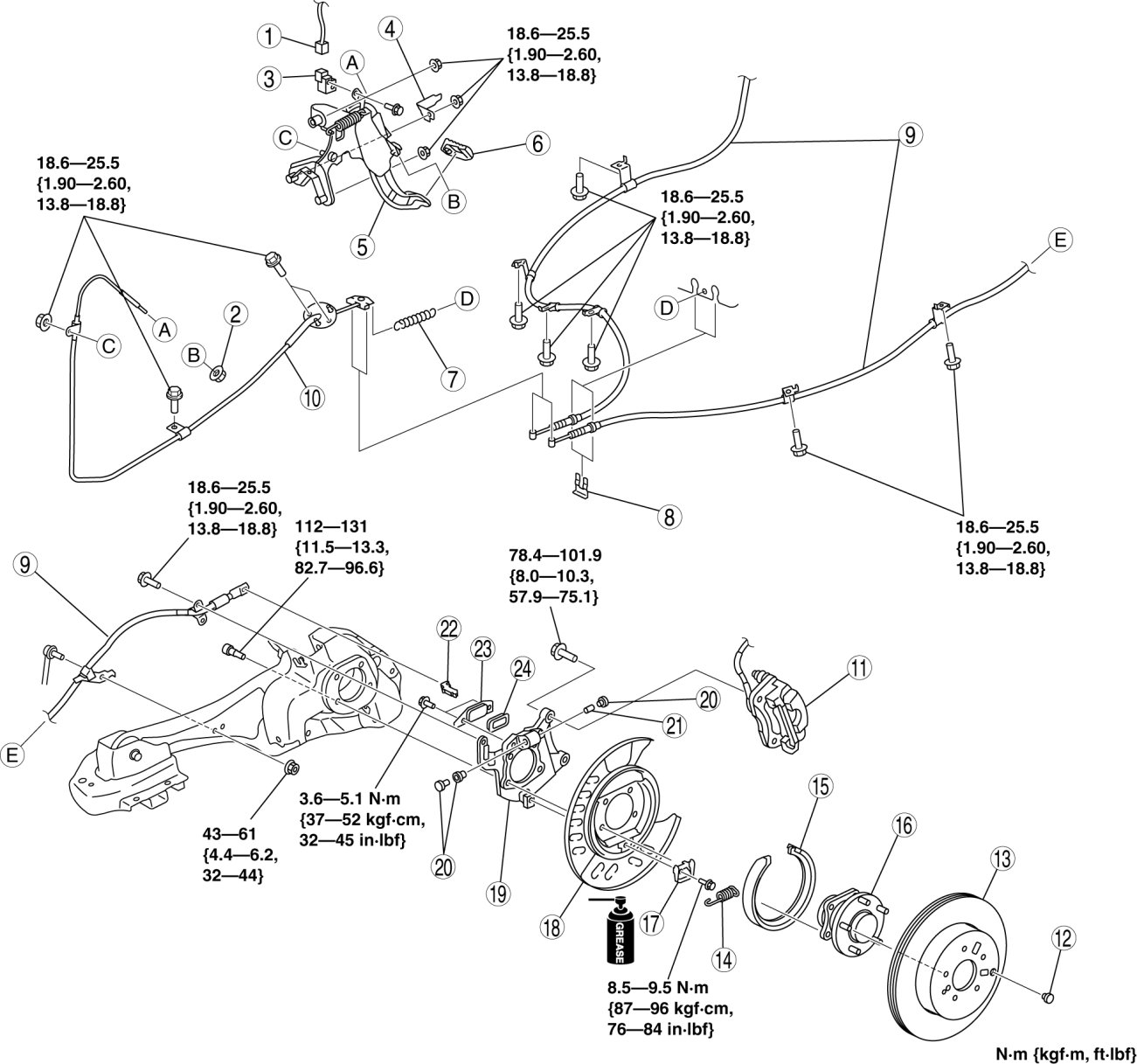

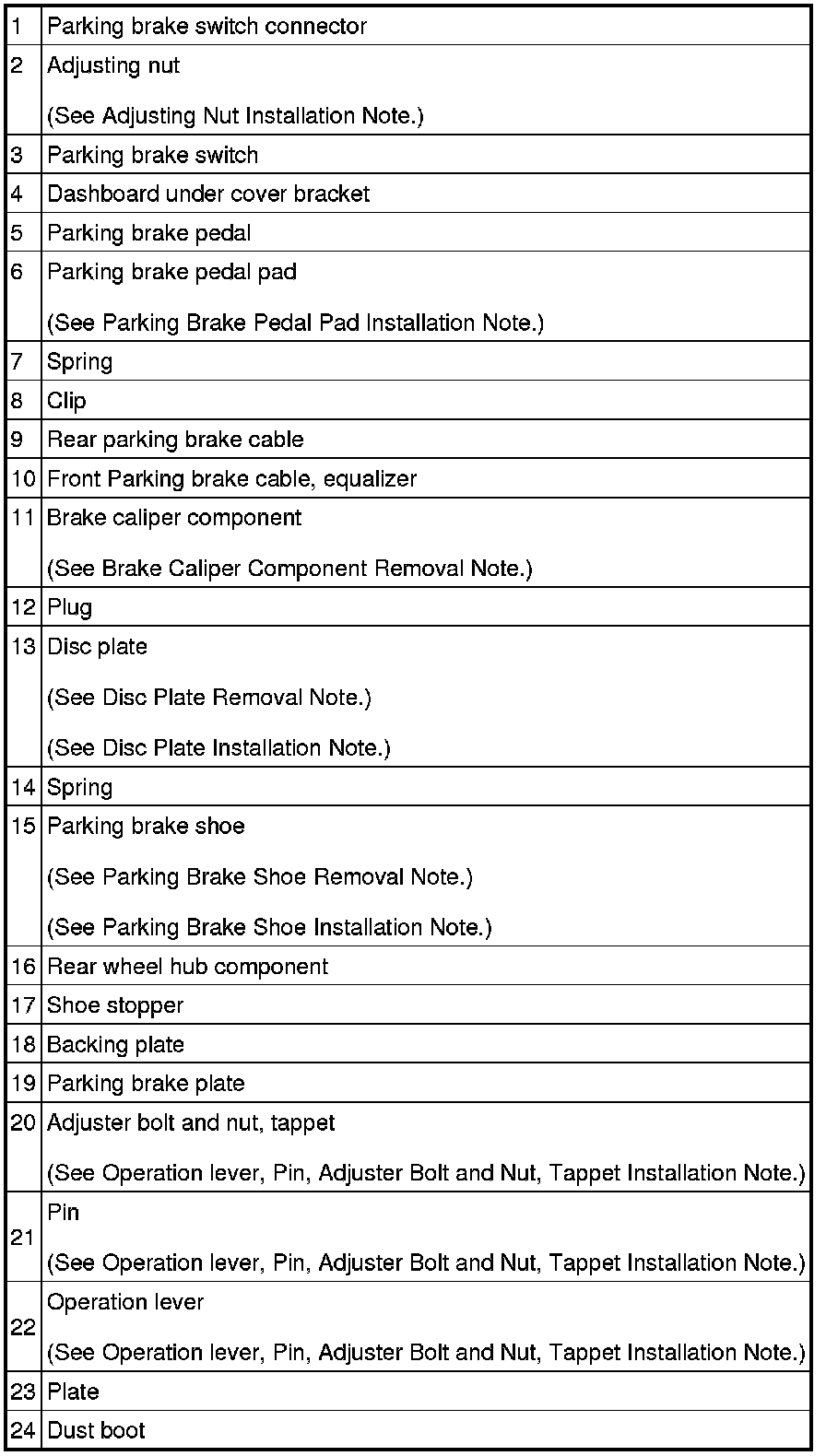

5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.
7. Adjust the parking brake stroke. Adjustments
8. Inspect the rear wheel alignment. Rear Wheel Alignment
Brake Caliper Component Removal Note
1. Remove the brake caliper assembly from the trailing link and suspend it with a cable so it does not interfere.
Disc Plate Removal Note
1. If any disc plate is difficult to remove, perform the following steps to remove it.

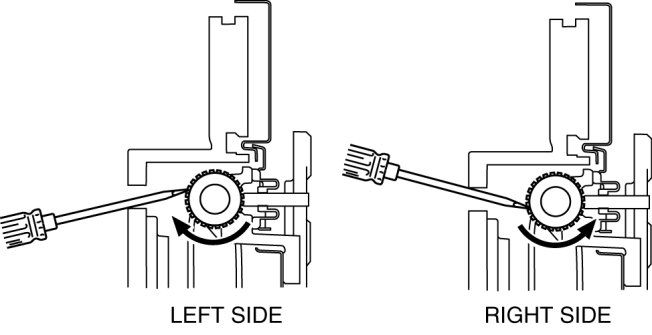

a. Insert a flathead screwdriver into the service hole and turn the adjuster in the direction of the arrow to compress the parking brake shoe.
b. Remove the disc plate.
Parking Brake Shoe Removal Note

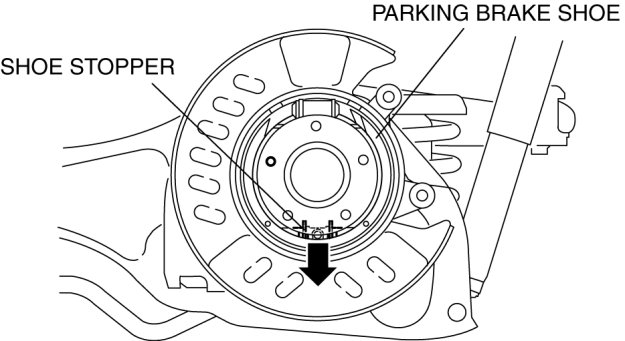

1. Pull the parking brake shoe downward and disengage it from the shoe stopper.
2. Press the adjuster bolt and tappet by hand, and slowly remove the parking brake shoe.
NOTE:
- When removing the parking brake shoe, firmly press the adjuster bolt and tappet by hand and slowly remove the parking brake shoe to prevent the adjuster bolt, tappet, operation lever and other parts from flying off.
Operation lever, Pin, Adjuster Bolt and Nut, Tappet Installation Note

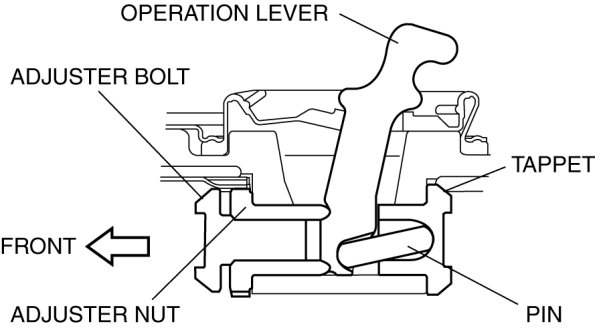

1. Install the operation lever, pin, adjuster bolt and nut, and tappet so that the adjuster nut is facing toward the vehicle front.
2. Completely tighten the adjuster bolt and nut.
3. Move the operation lever by hand and verify that it operates properly.
- If proper operation cannot be verified, reinstall.
Parking Brake Shoe Installation Note
1. Measure the parking brake lining thickness with a vernier caliper or measuring scale.
- If it is less than the minimum thickness, install a new parking brake shoe.
Minimum parking brake shoe thickness
- 1.0 mm {0.04 in}
2. Apply grease to the contact surface of the parking brake shoe and shoe stopper.

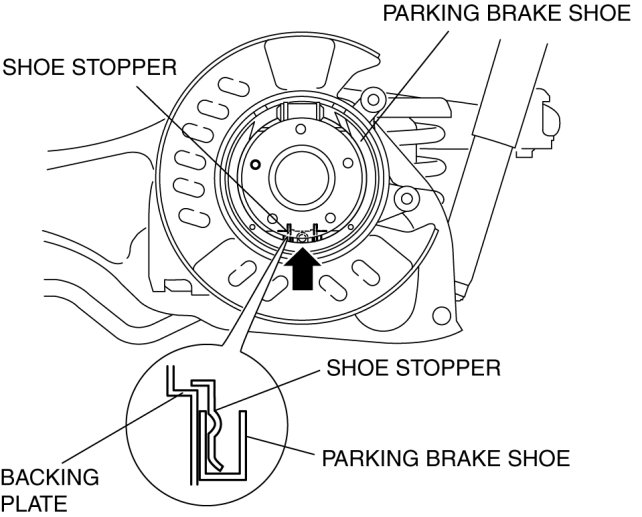

3. After installing the opening of the parking brake shoe to the adjuster bolt and tappet, push the brake shoe upward and attach it to the shoe stopper.
Disc Plate Installation Note

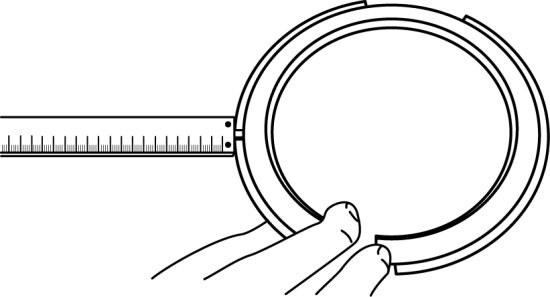

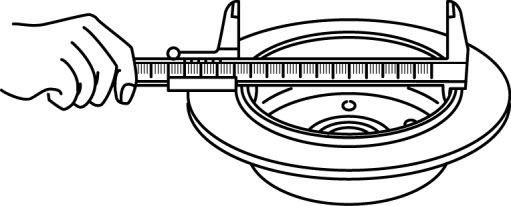

1. Measure the inner diameter of the disc plate with a vernier caliper.
- If it exceeds the maximum diameter, install the new disc plate.
Maximum rear disc plate inner diameter
- 191.0 mm {7.52 in}
2. Install the disc plate.
3. Perform the following steps to adjust the shoe clearance after installing the disc plate.

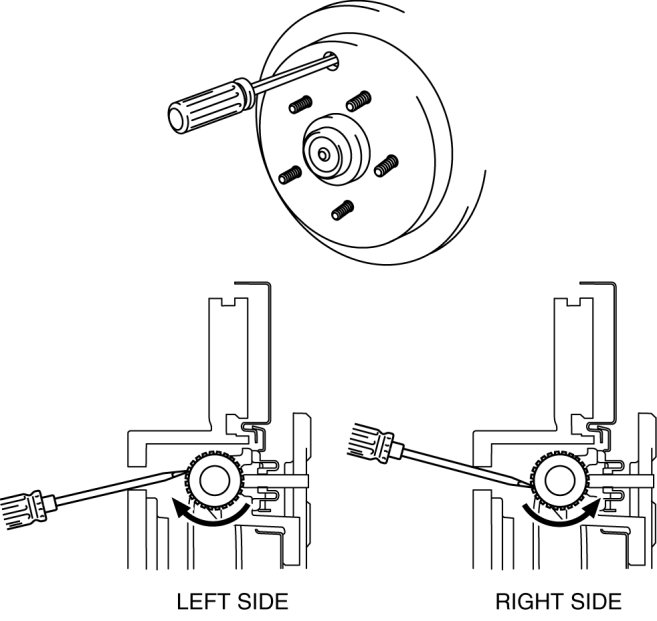

a. Insert a flathead screwdriver into the service hole and turn the adjuster in the direction of the arrow to expand the parking brake shoe until the disc plate cannot rotate.
b. Return the adjuster 13-25 notches in the direction of the arrow.
NOTE:
- Shoe clearance can be adjusted to 0.15 mm {0.006 in} by returning the adjuster 15 notches.
c. Rotate the disc plate and make sure it does not drag.
Front Parking Brake Cable Installation Note

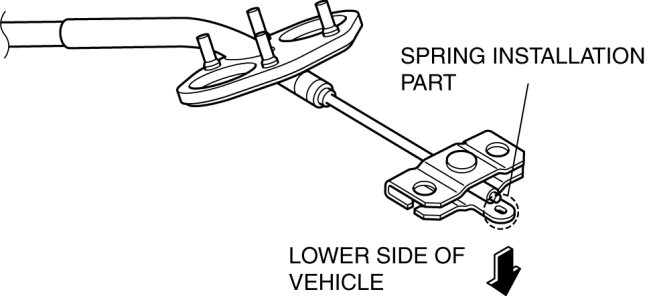

1. Install the front parking brake cable and equalizer so that the installation area of the equalizer spring is on the underside of the vehicle as shown in the vehicle.
Parking Brake Pedal Pad Installation Note
1. Degrease the parking brake pedal pad installation surface of the parking brake pedal.

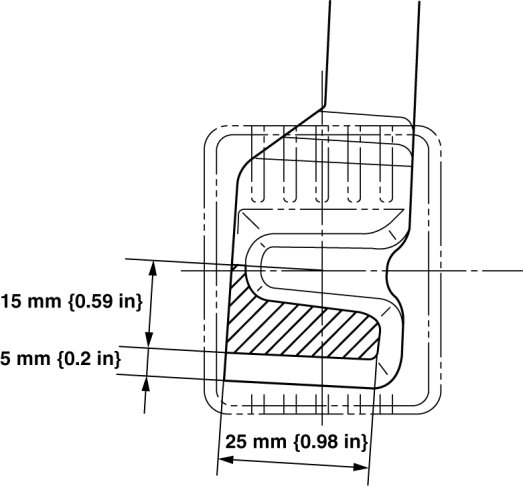

2. Apply commercially available instant adhesive to the area (shaded area) shown in the figure of the parking brake pedal and install the parking brake pedal pad.
Adjusting Nut Installation Note

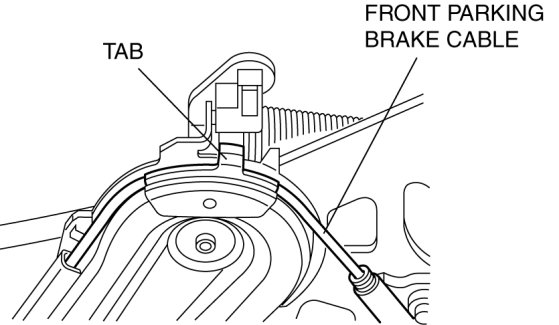

1. Verify that the front parking brake cable is installed below the cable deviation prevention tab of the brake cable.
2. Install the adjusting nut.
