Amplifier: Service and Repair

AUDIO AMPLIFIER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Trunk box

b. Seat side box (RH) Seat Side Box Removal/Installation

c. Trunk end trim Service and Repair

d. Third-row seat (RH) Rear - Third-Row Seat Removal/Installation

e. Rear scuff plate inner (RH) Rear Scuff Plate Removal/Installation

f. Third-row seat belt lower anchor installation bolt (RH) Third-Row Seat Belt Removal/Installation

g. Trunk side trim (RH)

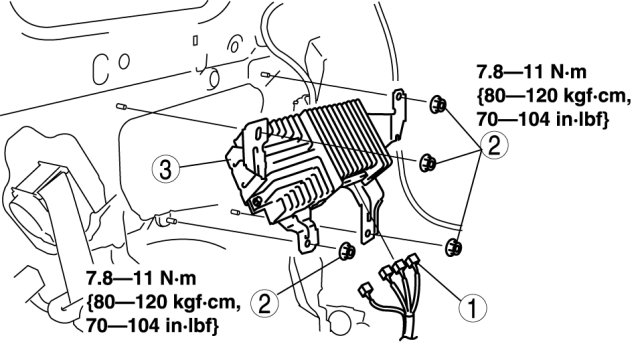

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.

5. Perform the audio amplifier configuration after replacing the audio amplifier. Programming and Relearning

CAUTION:
- Perform the audio amplifier configuration after replacing the audio amplifier to assure that the audio system operates correctly.
