Mazda Truck
>>
2010
>>
CX-9 AWD V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Front Climate Control Unit
Front Climate Control Unit

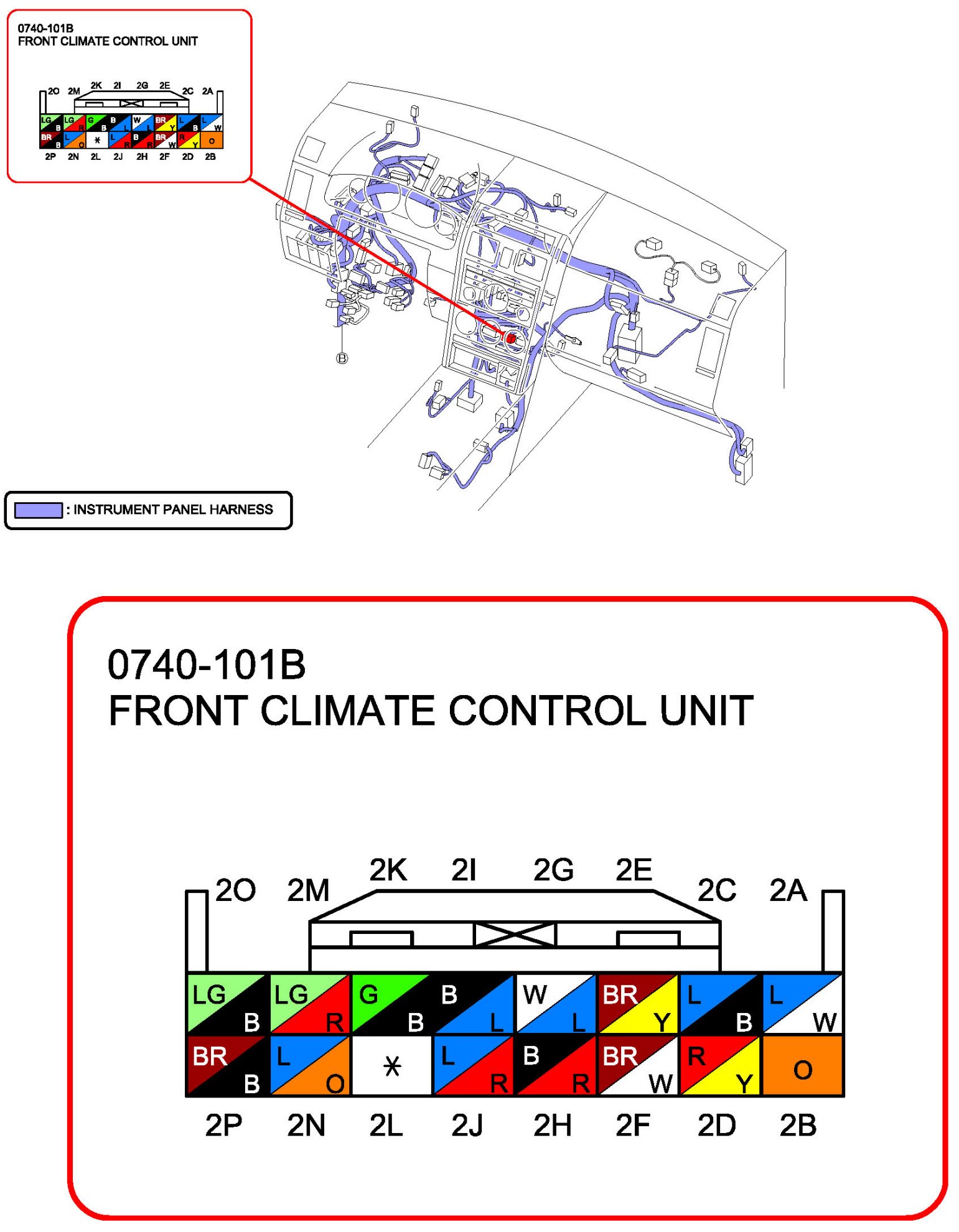

Front Climate Control Unit:

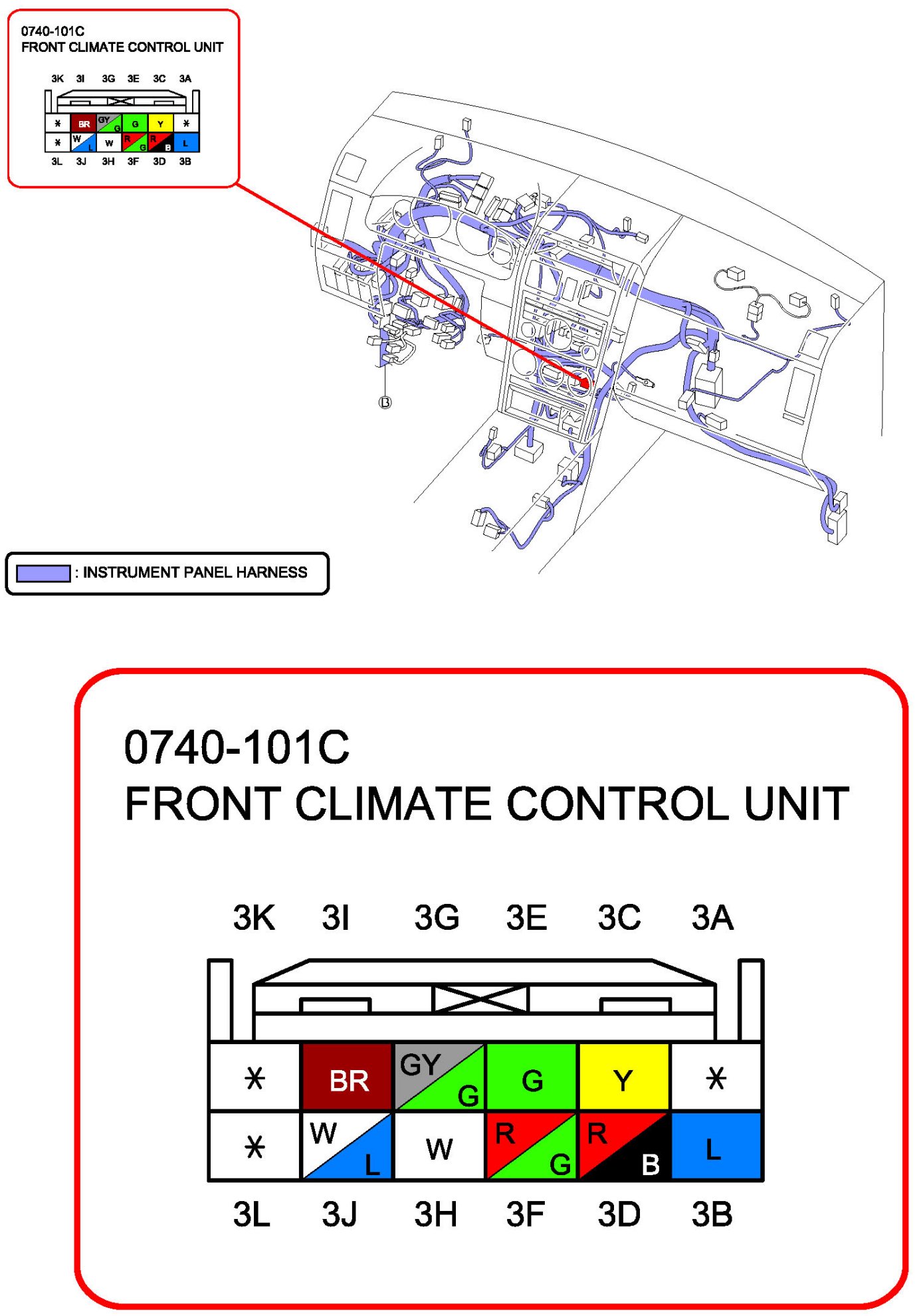

Front Climate Control Unit:

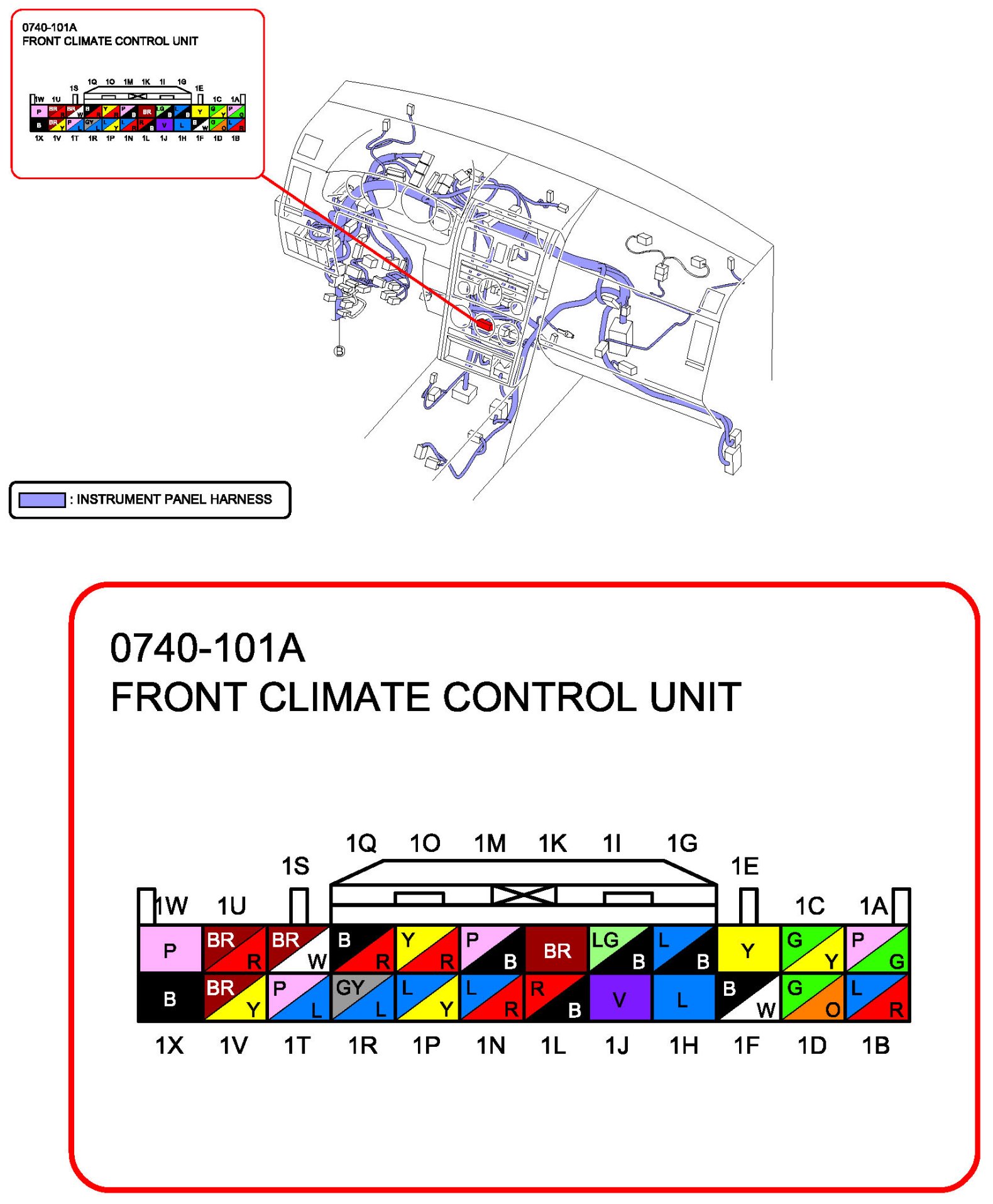

Front Climate Control Unit:
