Trunk / Liftgate



-

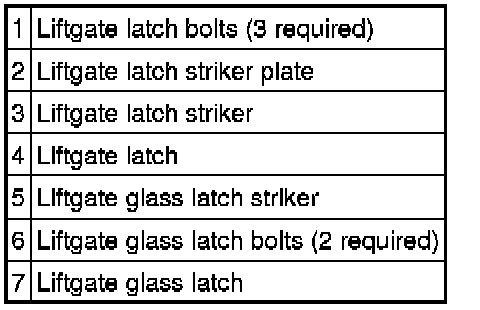

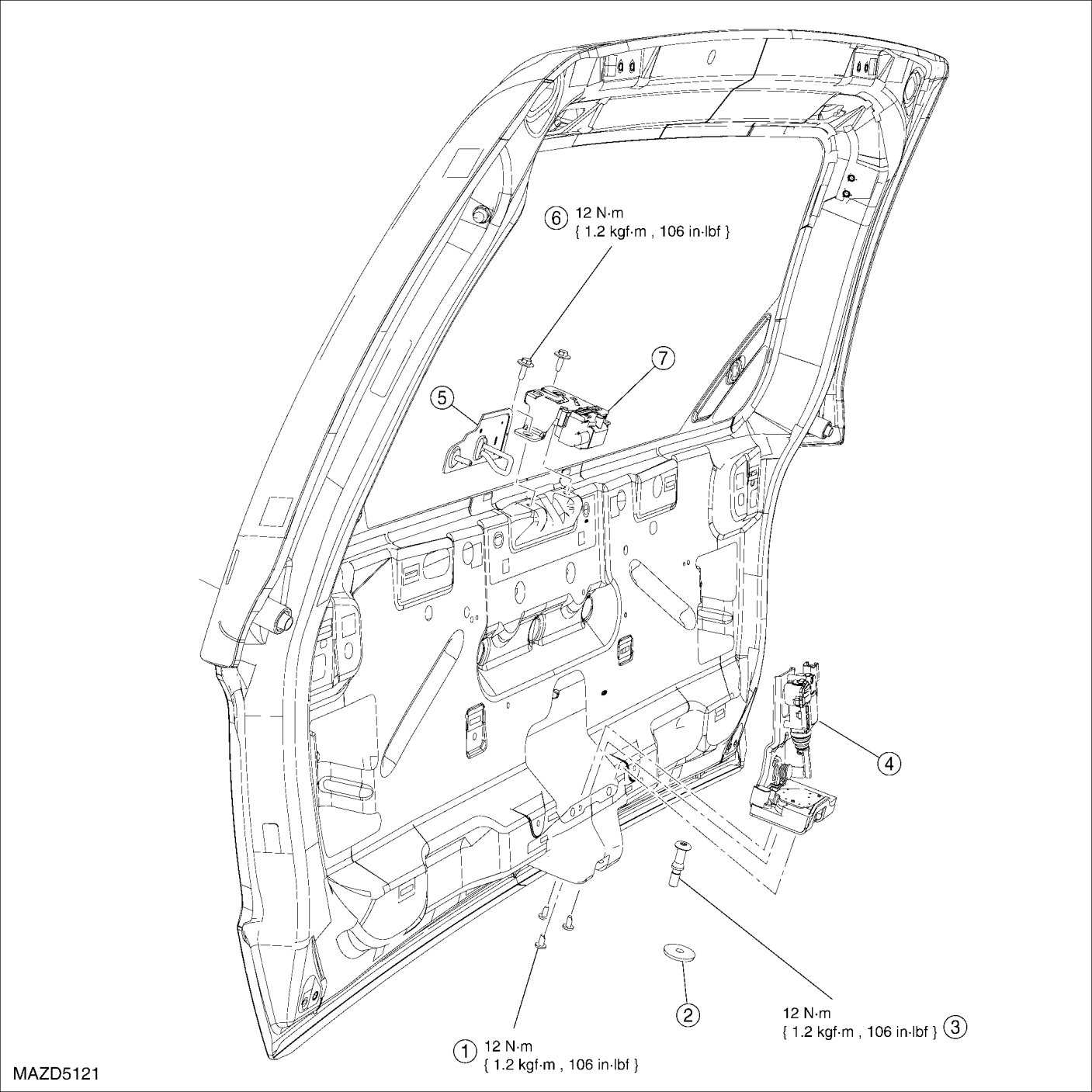

LIFTGATE HANDLE, LOCK AND LATCH - EXPLODED VIEW










1. For additional information, see the procedures.
