Connector End Views - Climate Control
Connector End Views - Climate Control
-

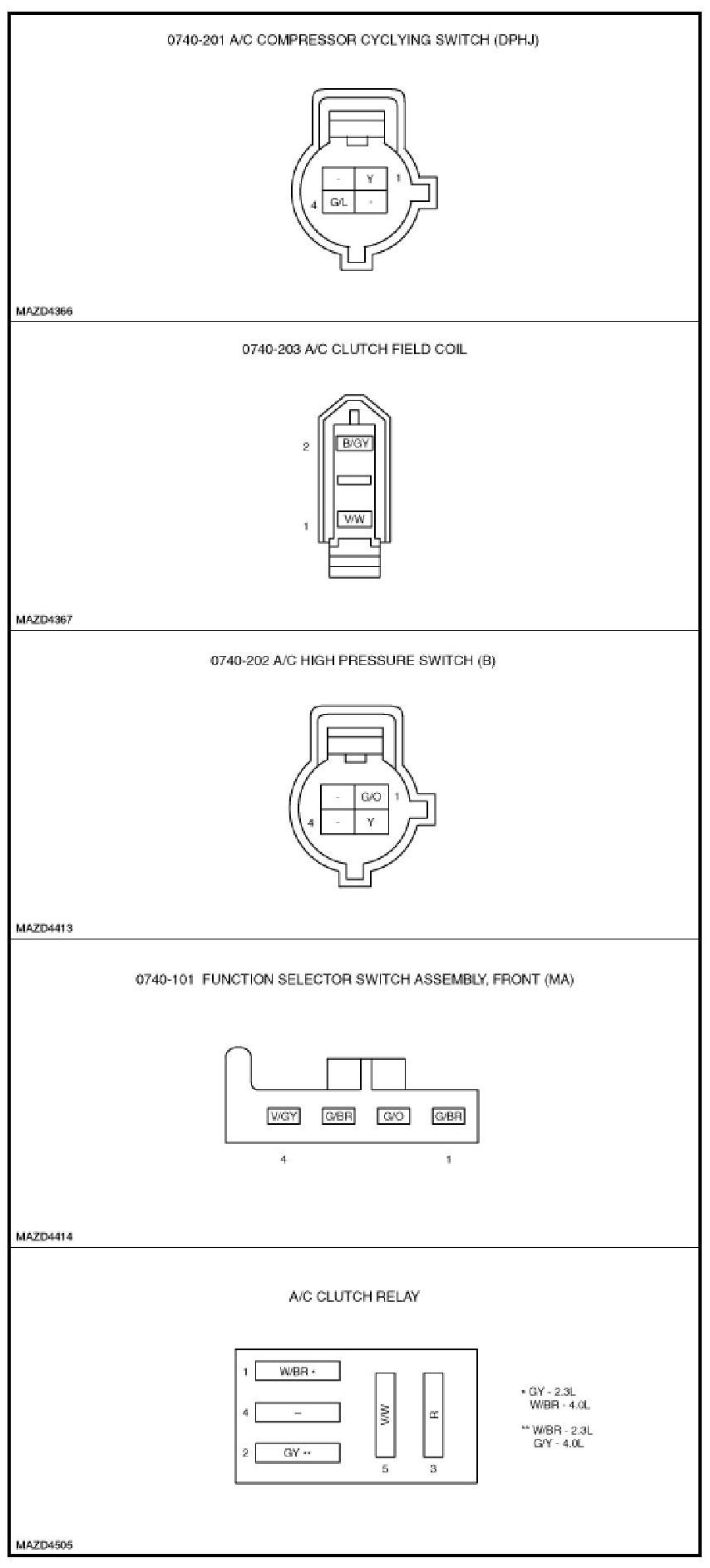

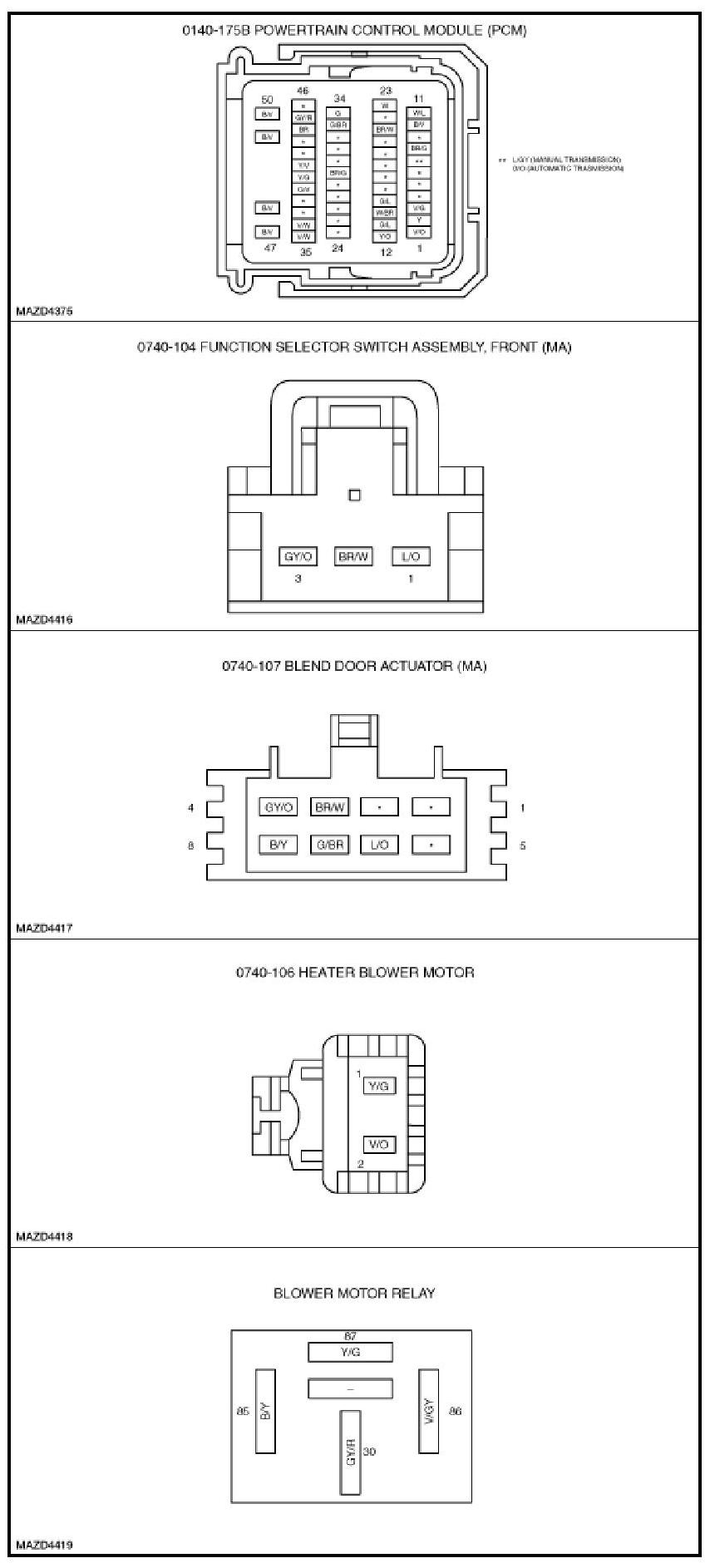

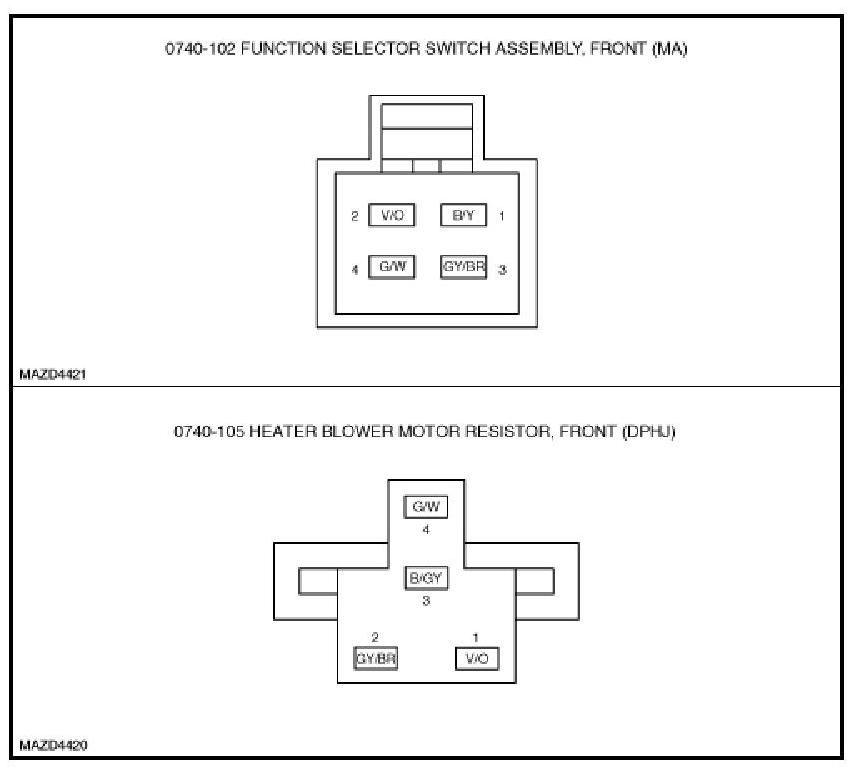

CONNECTOR END VIEWS - CLIMATE CONTROL
