Drive/Propeller Shaft




PROPELLER SHAFT STRUCTURAL VIEW

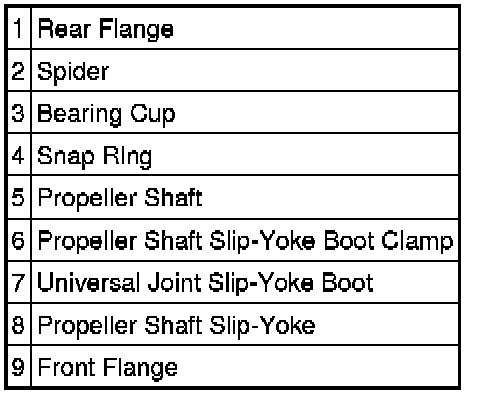

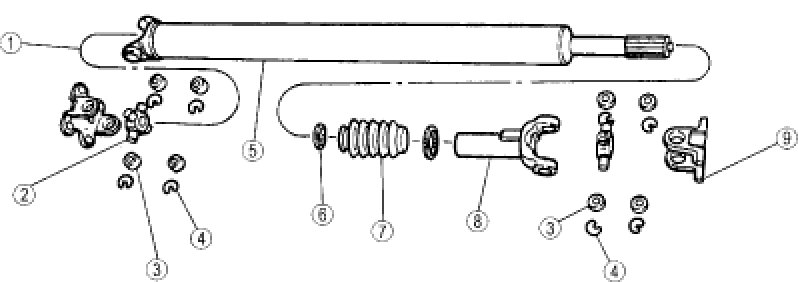

Front Propeller Shaft (4WD)

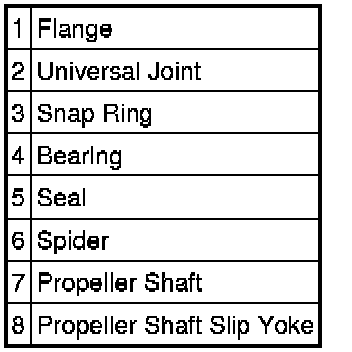

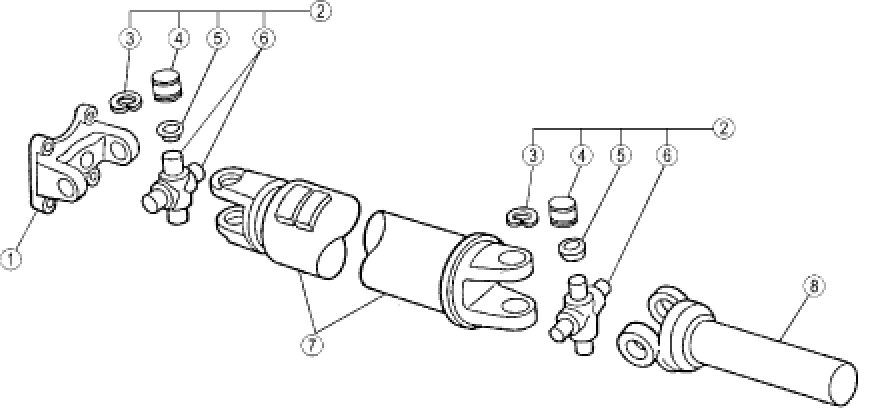

Rear Propeller Shaft (4WD)

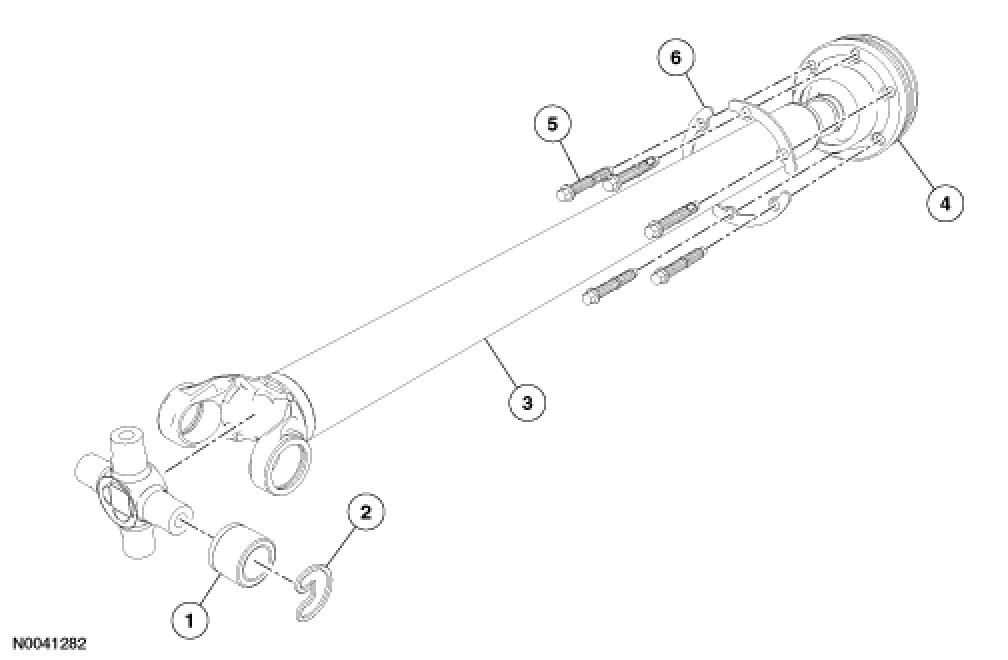

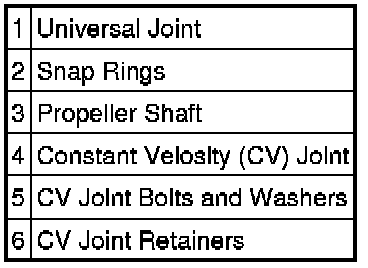

Rear Propeller Shaft (4x2)
