Axle Structural View Rear (Limited Slip)
Axle Structural View Rear (Limited Slip)

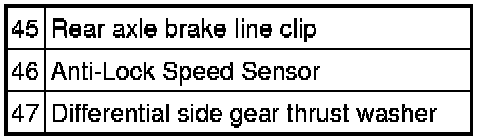

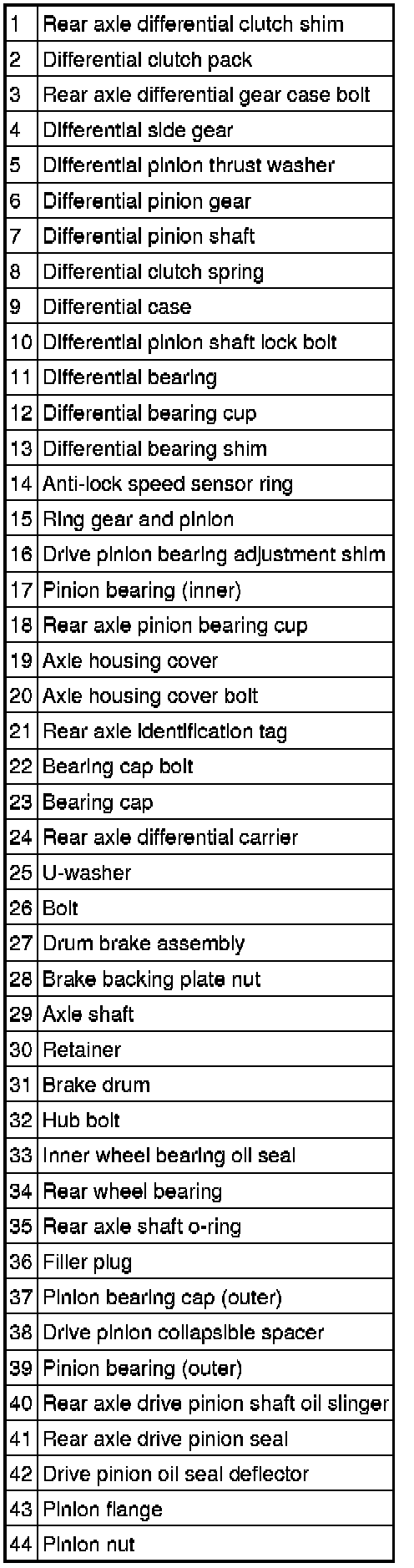

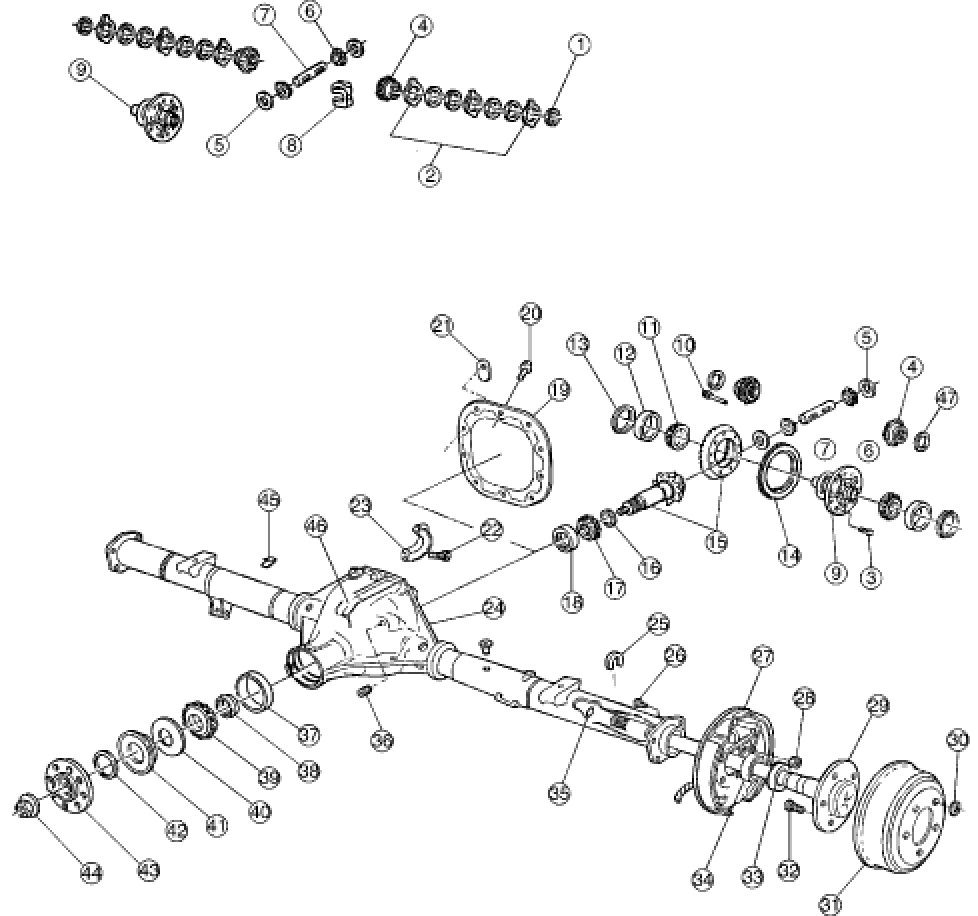

AXLE STRUCTURAL VIEW REAR (LIMITED SLIP)
