Mazda Truck
>>
2008
>>
Tribute 2WD L4-2.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Disc Brake System
>>
Rear
Rear

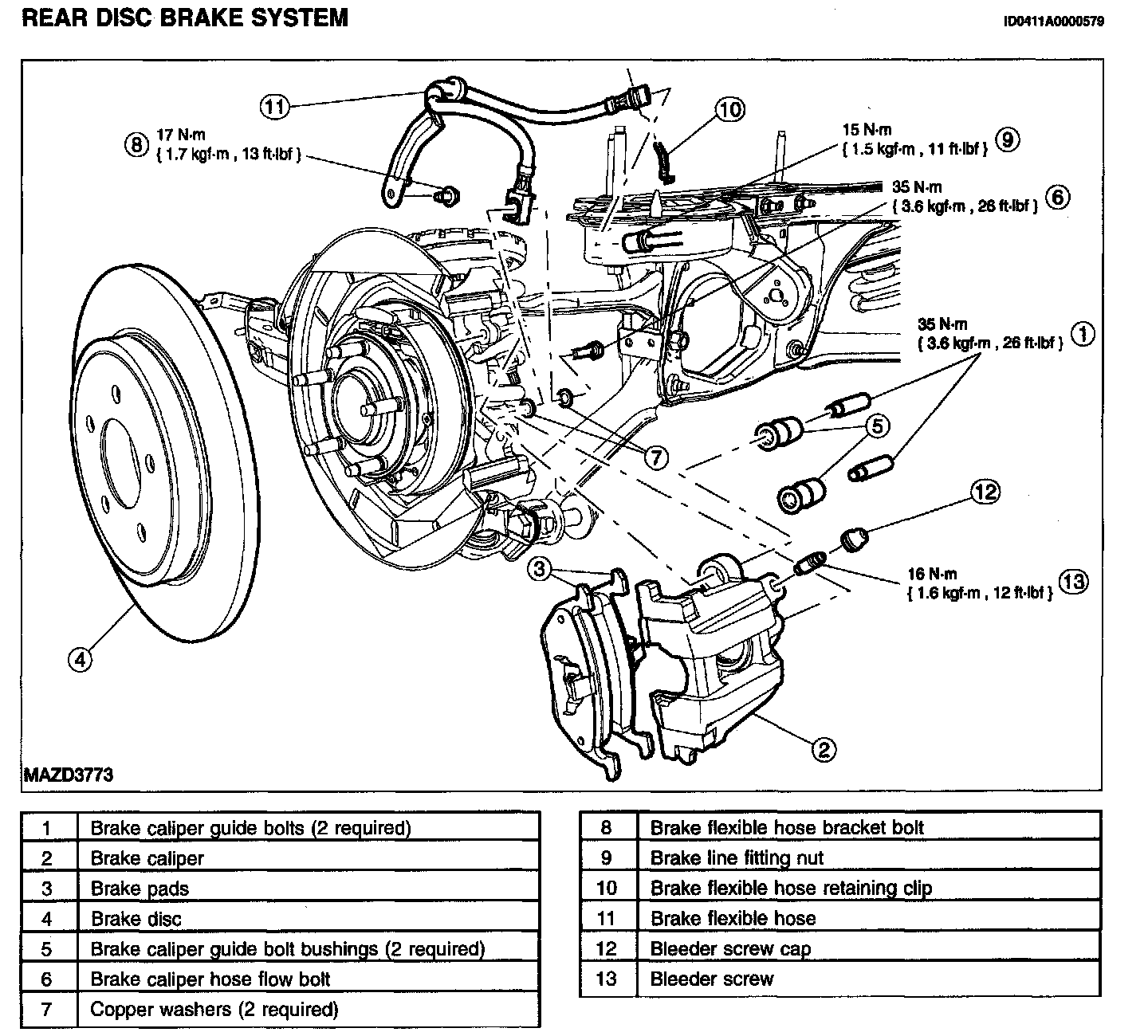

REAR
DISC BRAKE SYSTEM
- EXPLODED VIEW
Rear Disc Brake System:
