Connector End Views - Control Systems
Connector End Views - Control Systems
--

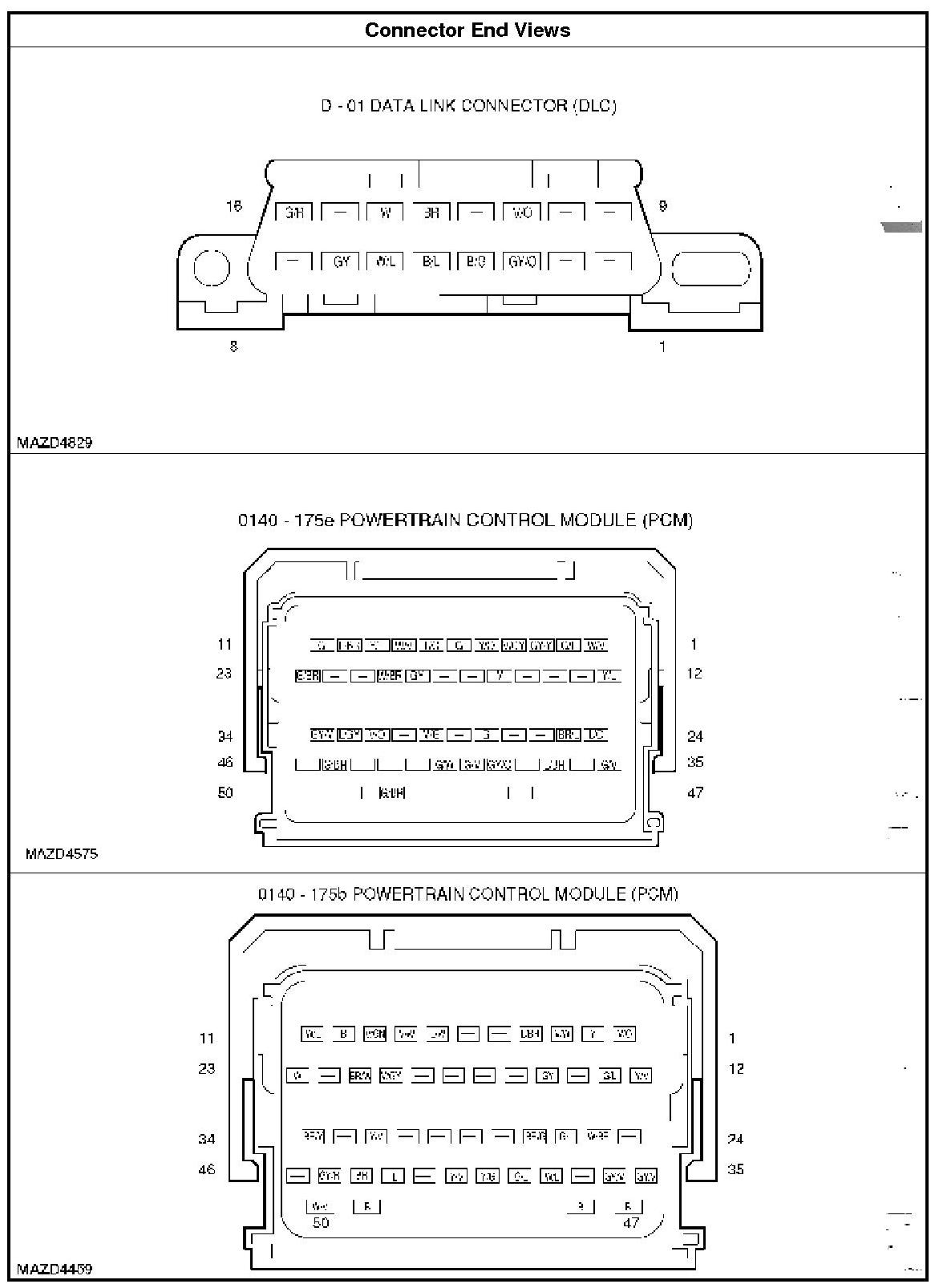

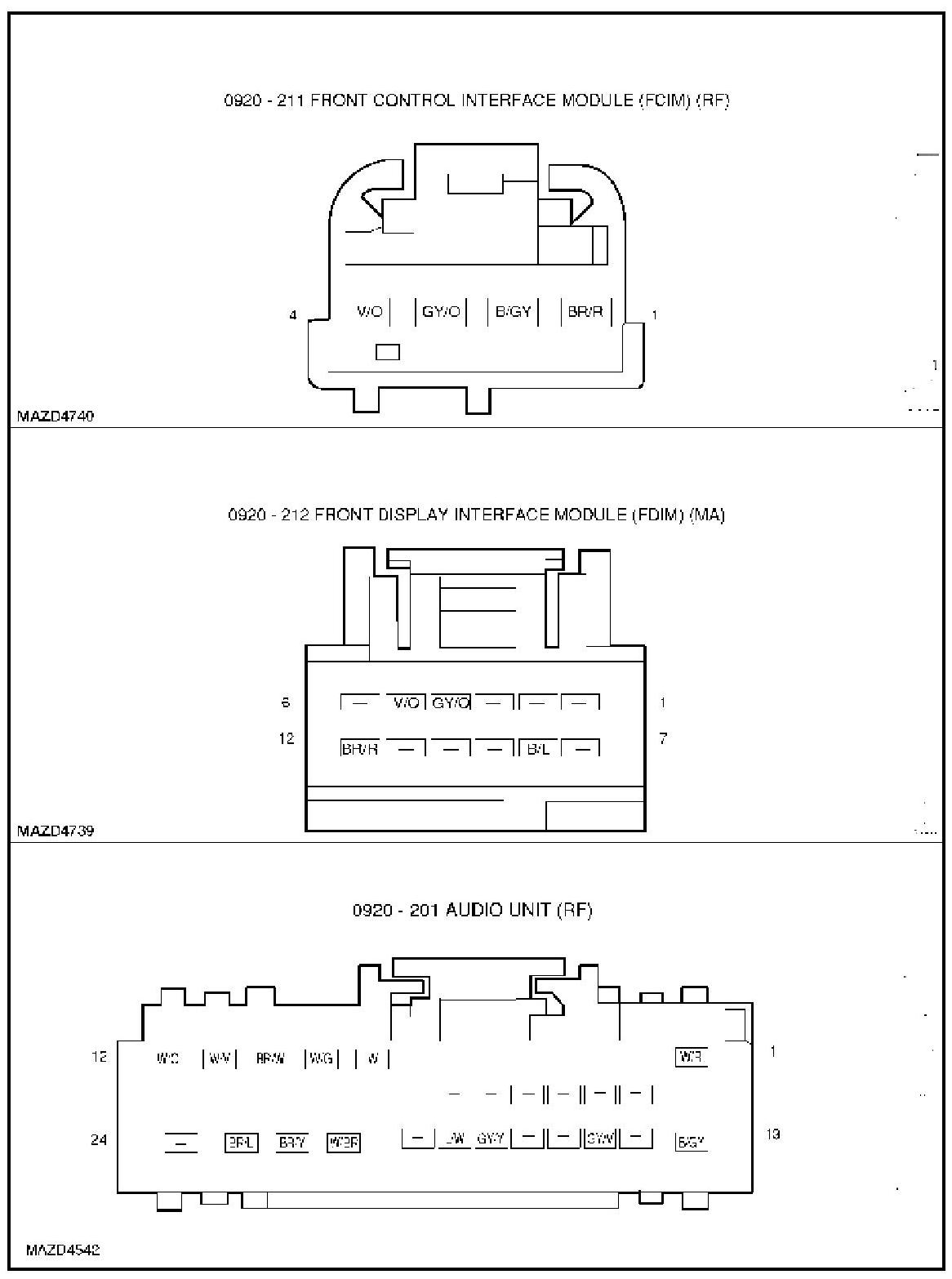

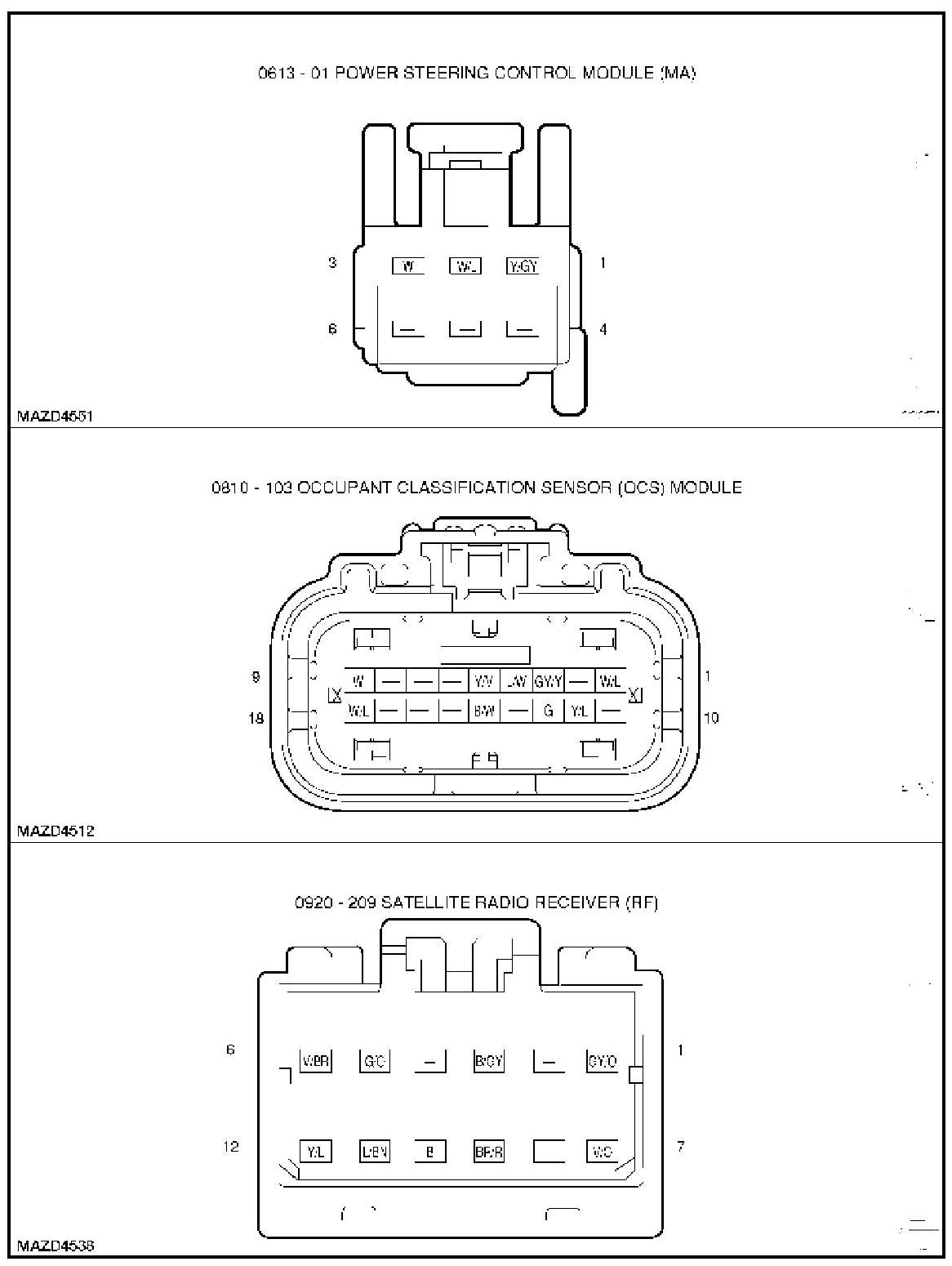

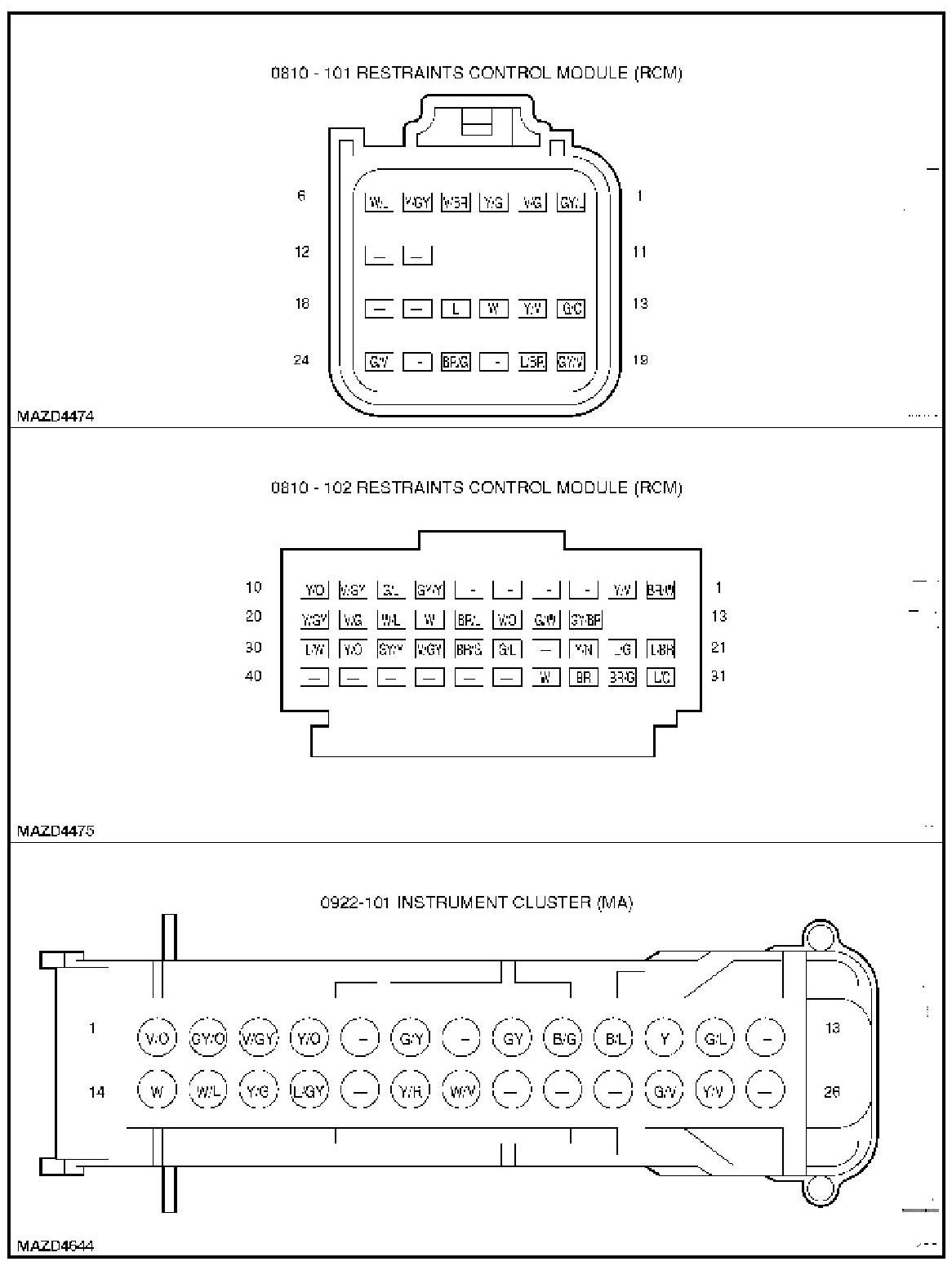

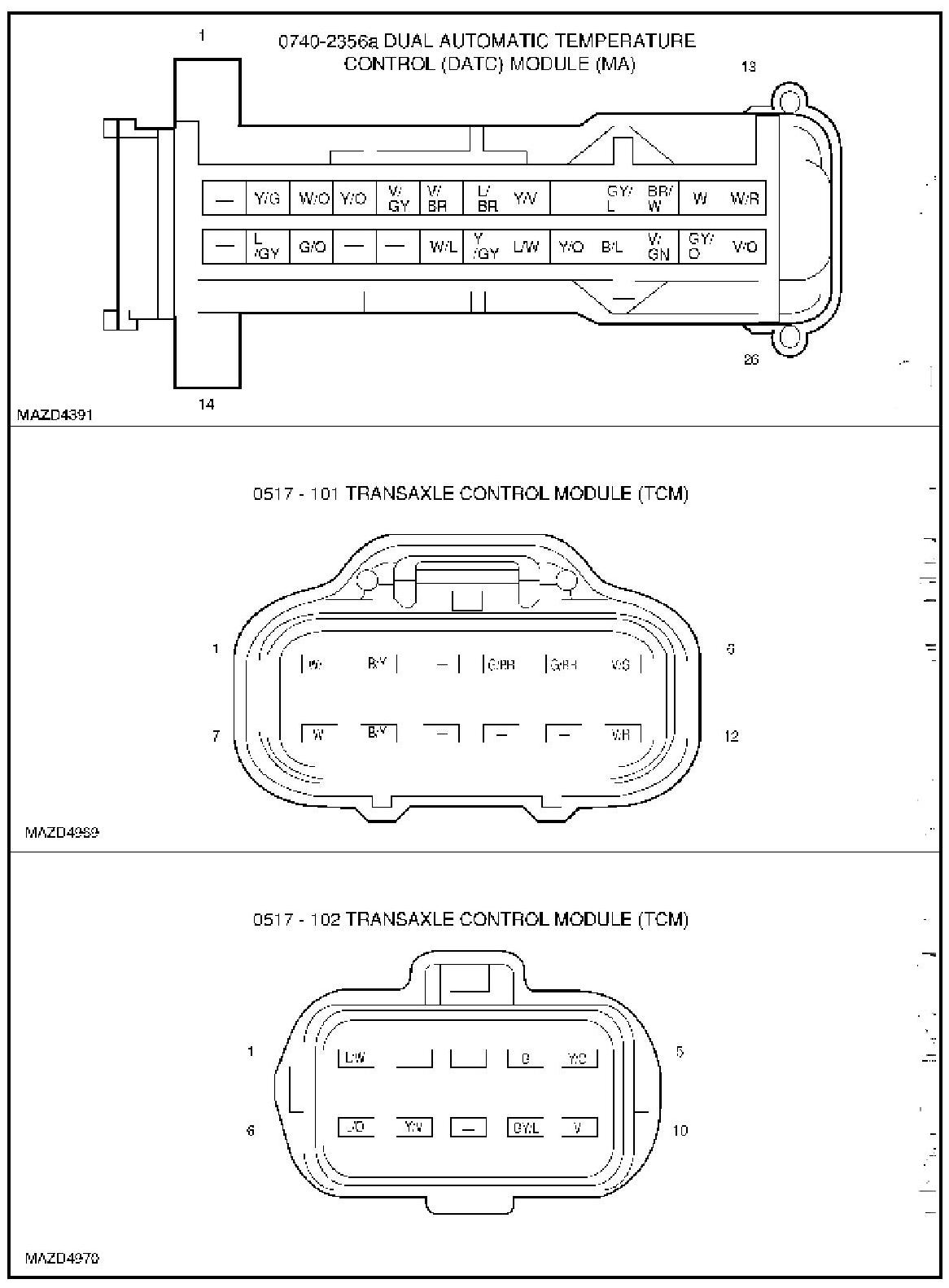

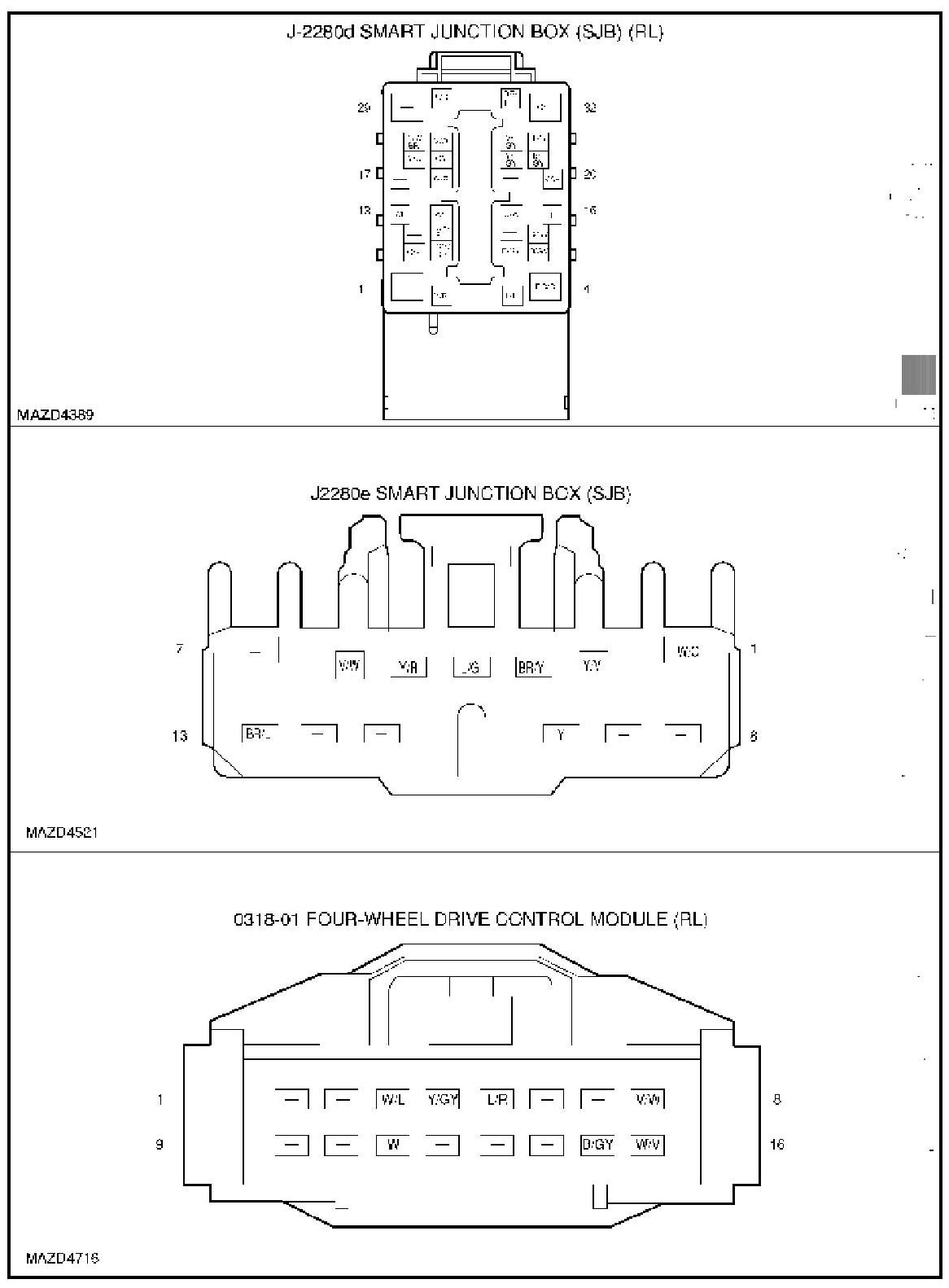

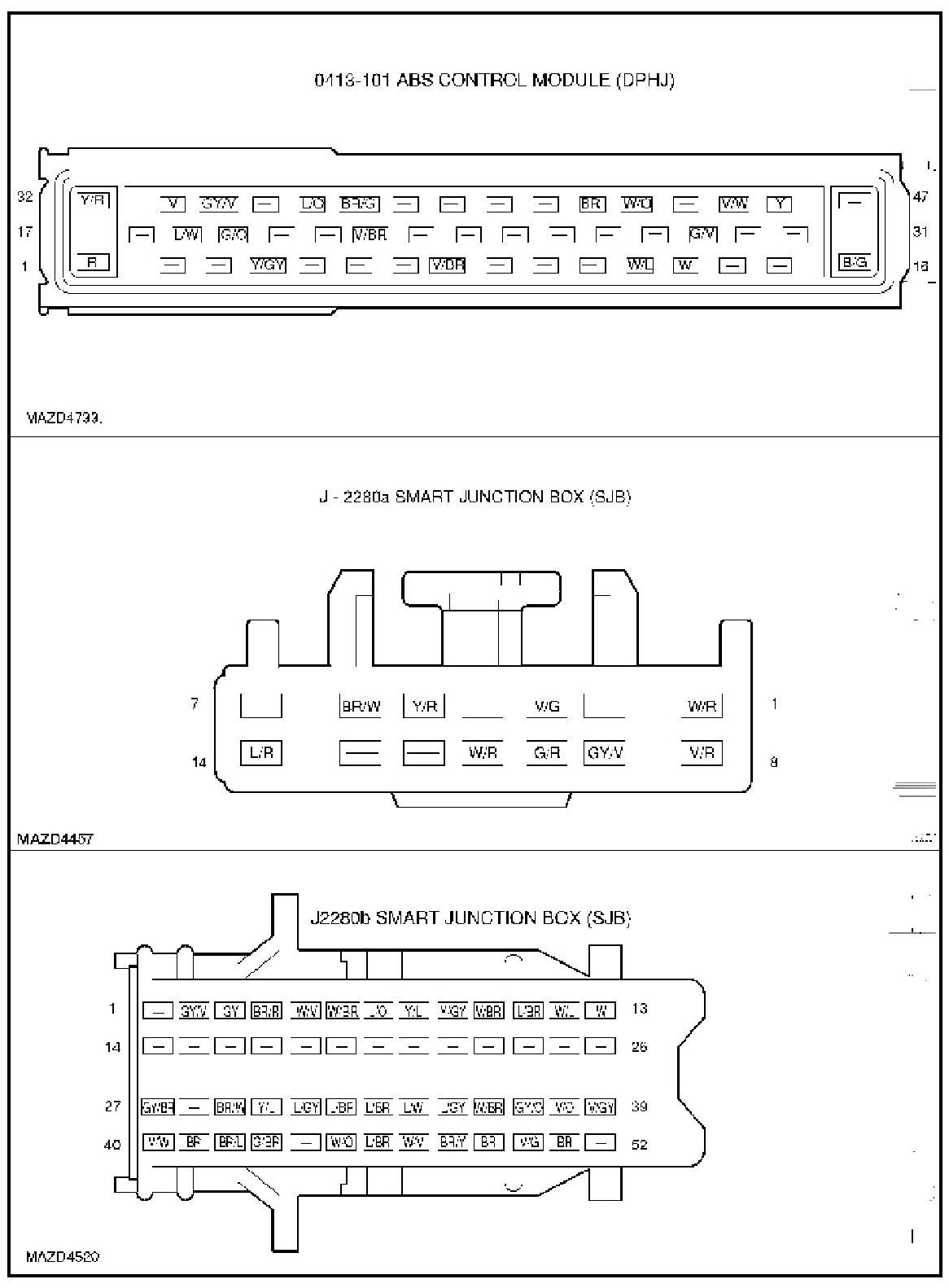

CONNECTOR END VIEWS - CONTROL SYSTEMS - HYBRID
