Transmission Position Sensor/Switch: Diagrams

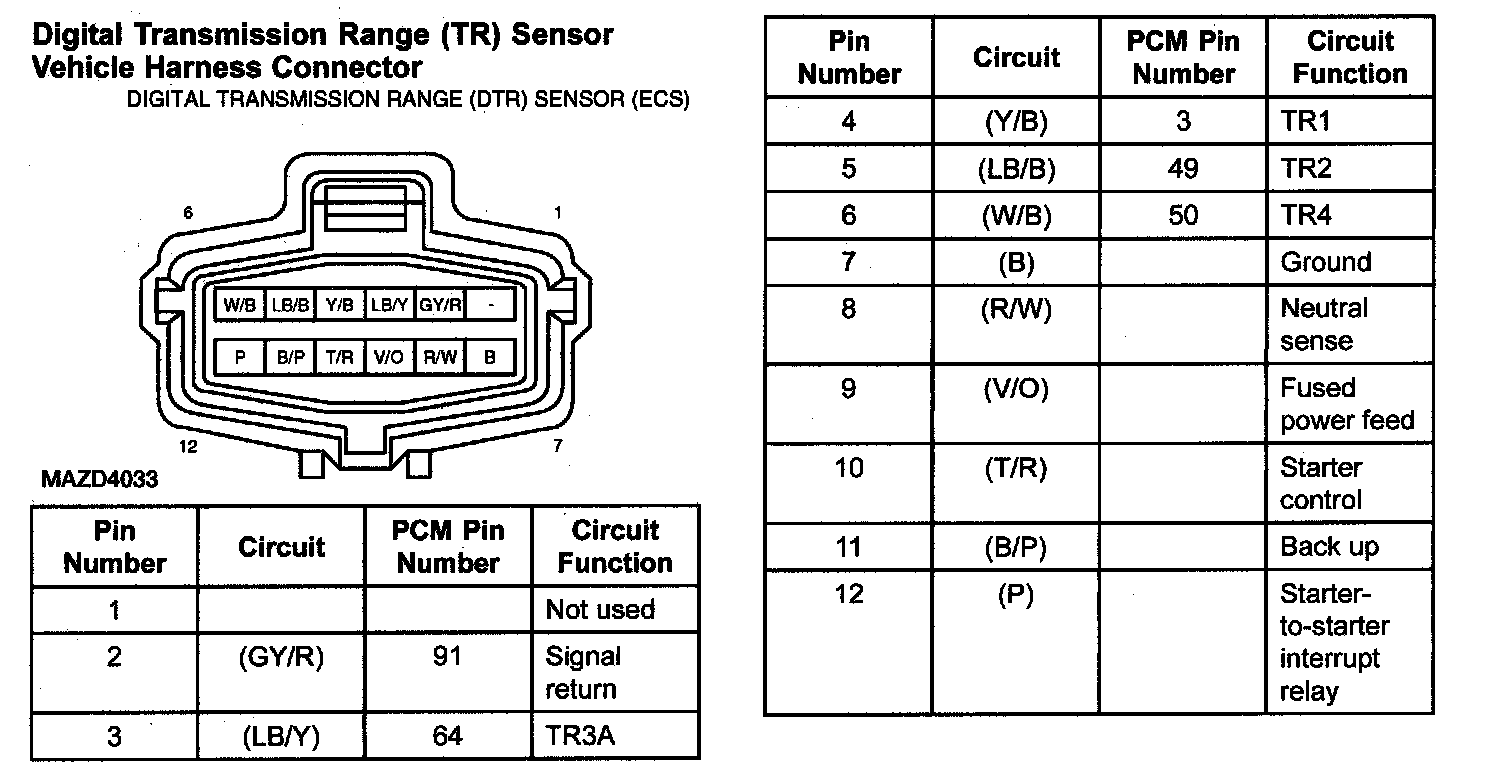

Digital Transmission Range (TR) Sensor Vehicle Harness Connector
Digital Transmission Range (TR) Sensor Vehicle Harness Connector:
