Basic Power Window System Inspection

BASIC POWER WINDOW SYSTEM INSPECTION [POWER WINDOW SYSTEMS (AUTO-OPEN/CLOSE FUNCTION)]

Step 1-Step 4:

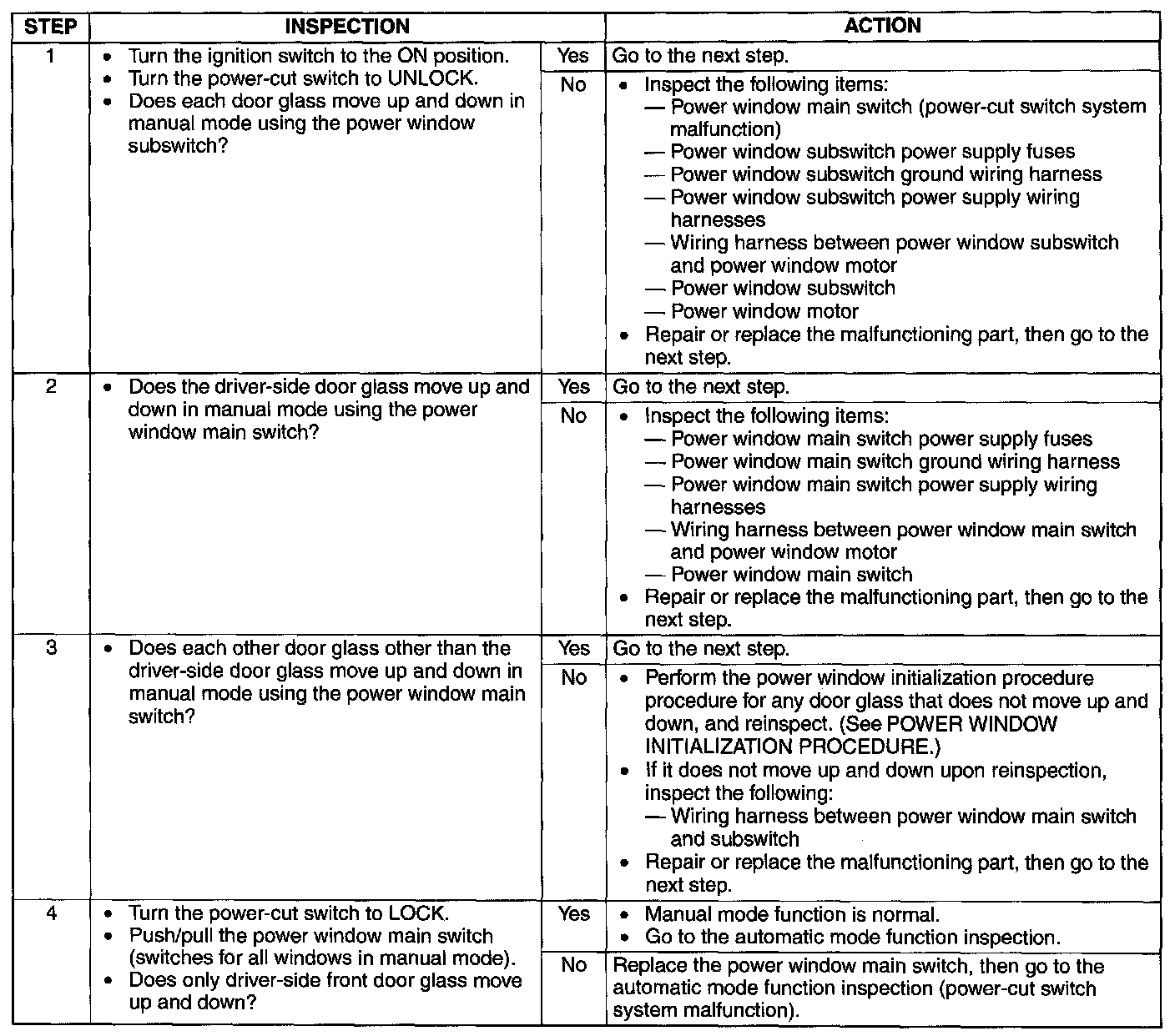

Manual Mode Function Inspection

Step 1-Step 3:

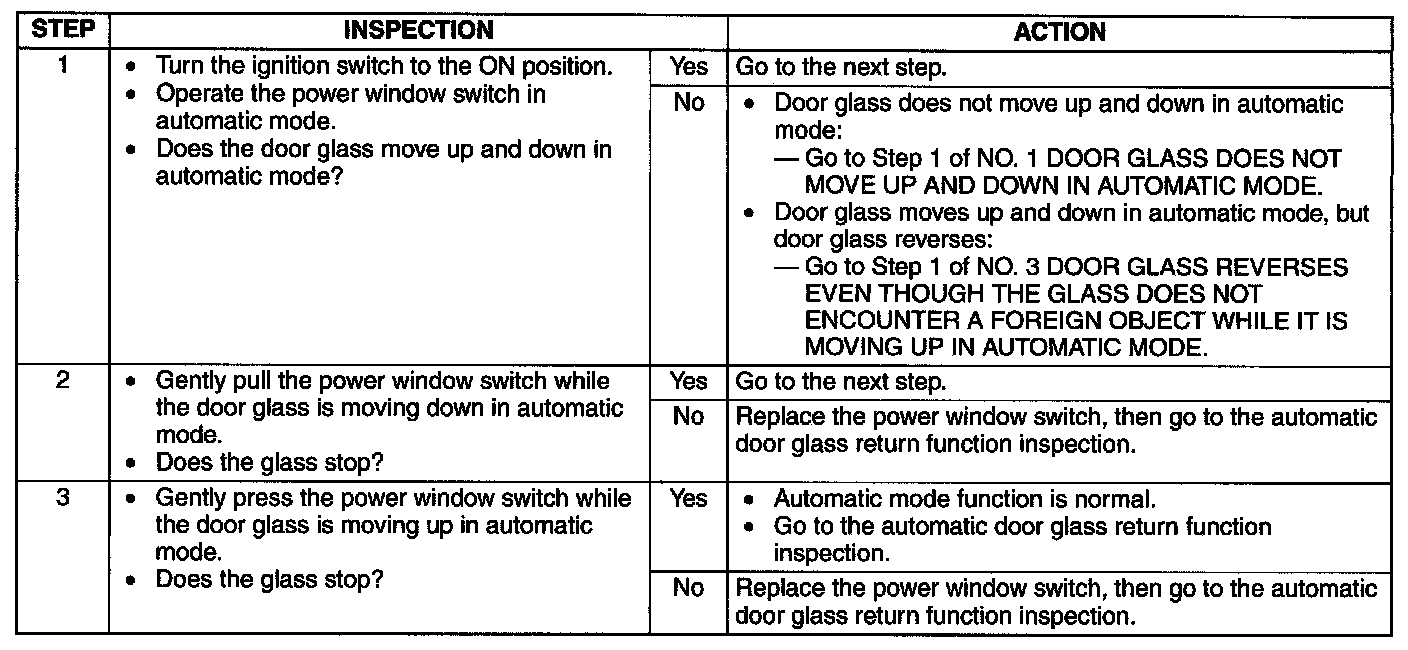

Automatic Mode Function Inspection

NOTE: Perform the following inspection for the power window main switch and the power window subswitches for each window.

Step 1-Step 2:

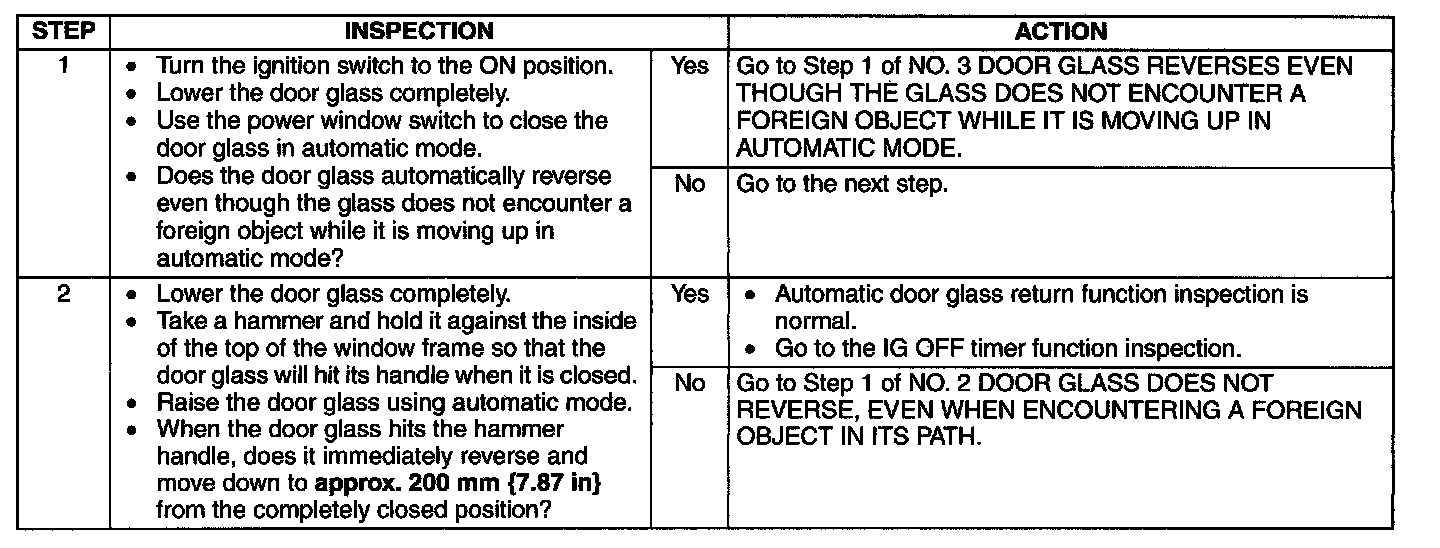

Automatic Door Glass Return Function Inspection

NOTE:
- Perform the following inspection for the power window main switch and the power window subswitches for each front door window.
- With the switch held at auto-up, the front door glass does not automatically reverse even when a foreign object is encountered.

Step 1-Step 5:

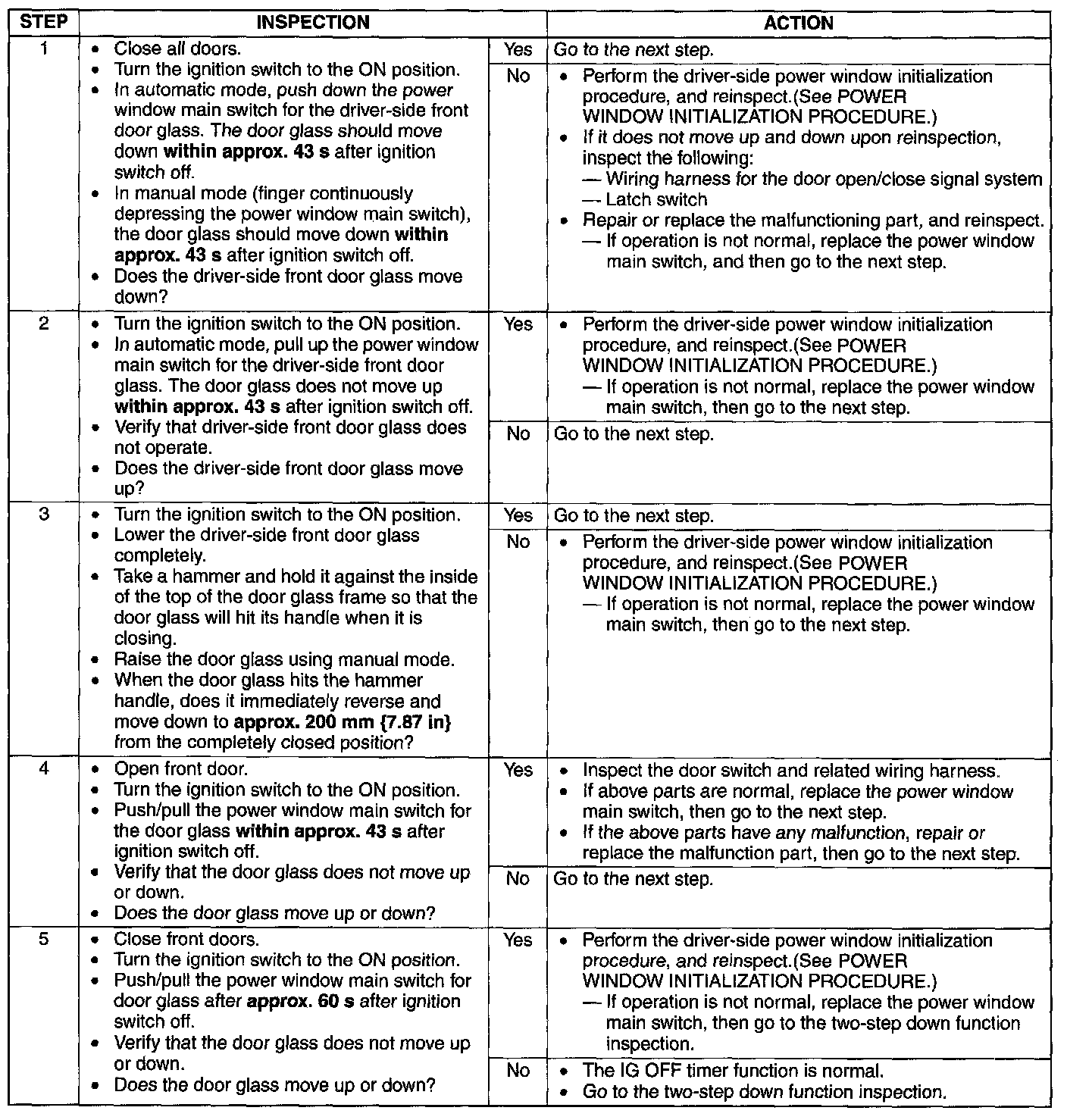

IG OFF Timer Function Inspection

Step 1:

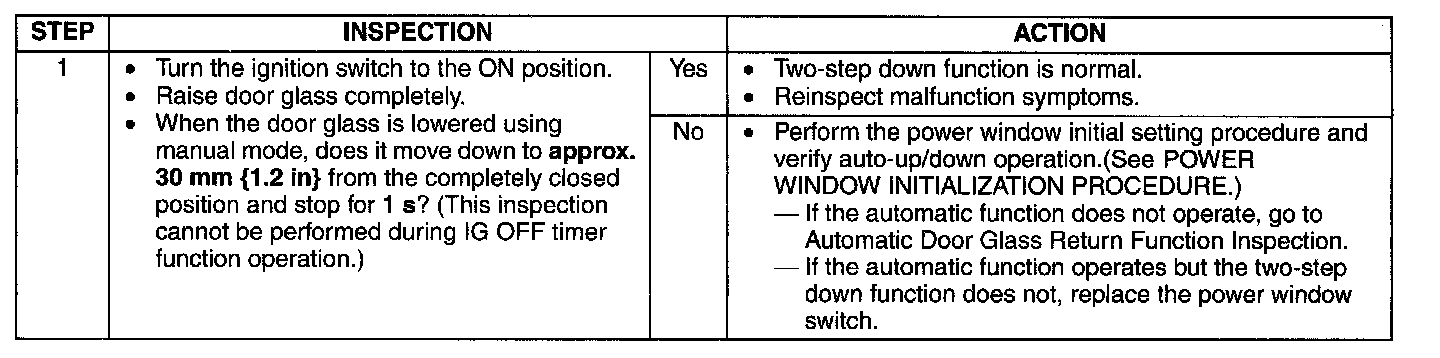

Two-step Down Function Inspection
- The distance the door glass opens can be changed using the two-step down function (approx. 20-100 mm {0.79-3.93 in}).
- The two-step down function can be made inoperative. (The function is operative at the initial setting.)
- The two-step down function does not function during IG OFF timer.

NOTE: Perform the following inspection for the power window main switch and the power window subswitches for each front window.
