Procedures

BATTERY RECHARGING [MZI-3.5]

WARNING:
- Keep all flames away from the battery, otherwise evaporated gas from the battery fluid may catch fire, and cause serious injury.
- Remove the battery filler caps when recharging to prevent battery deformation or damage.

CAUTION: Do not quick charge for more than 30 mm. It will damage the battery.

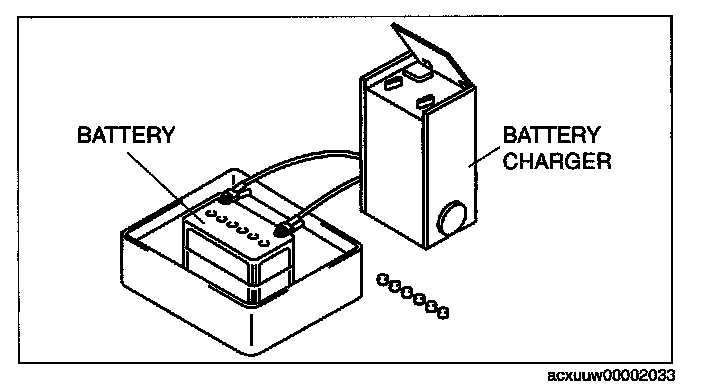

1. Remove the battery and then place it in a pan of water.
2. Remove the battery tiller caps.
3. Connect a battery charger to the battery and adjust the charging current as follows.

Battery slow charge current 80D26L (55): 5.5-6.5 A

Battery quick charge current [30 min] 80D26L (55) : 35 A

4. After the battery is recharged, verify that the voltage is within the specification and remains at the same value for 1 h or more after the recharging has been completed.
- If not within the specification, replace the battery.

Standard voltage : 12.4 V or more
