Transmission/Transaxle Technical Data

TRANSMISSION/TRANSAXLE TECHNICAL DATA

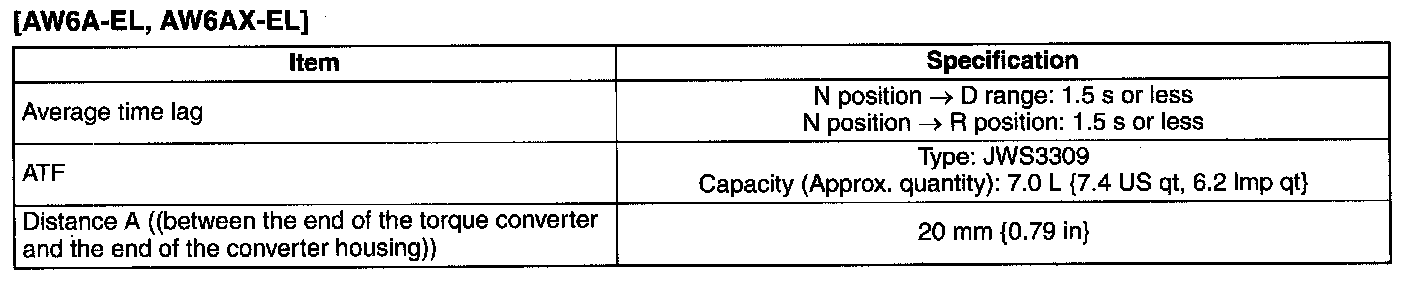

(AW6A-EL, AW6AX-EL):

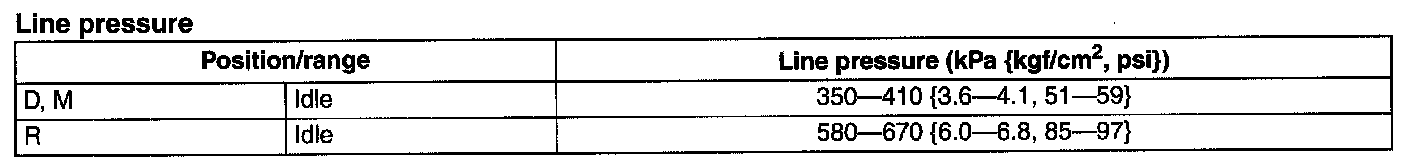

Line Pressure:

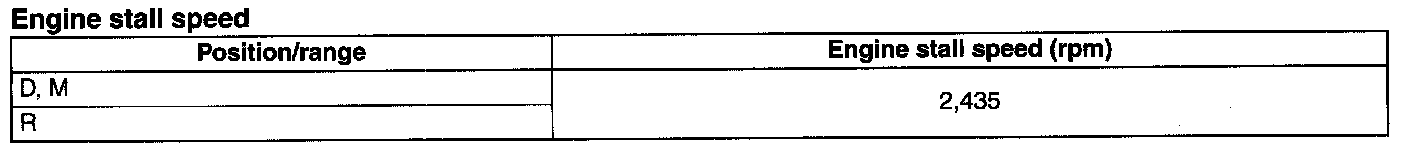

Engine Stall Speed:

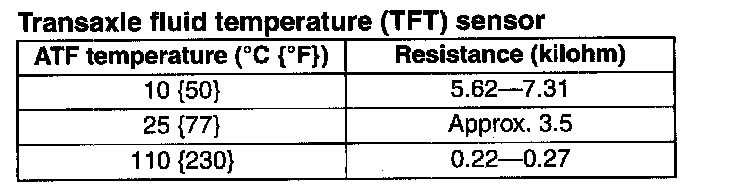

Transaxle Fluid Temperature (TFT) Sensor:

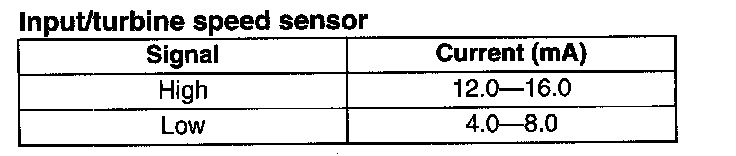

Input/turbine Speed Sensor:

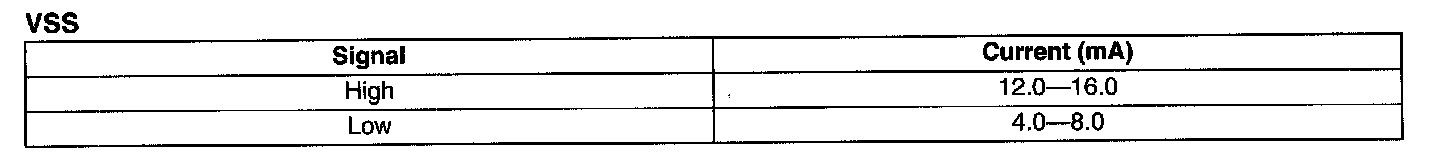

VSS:

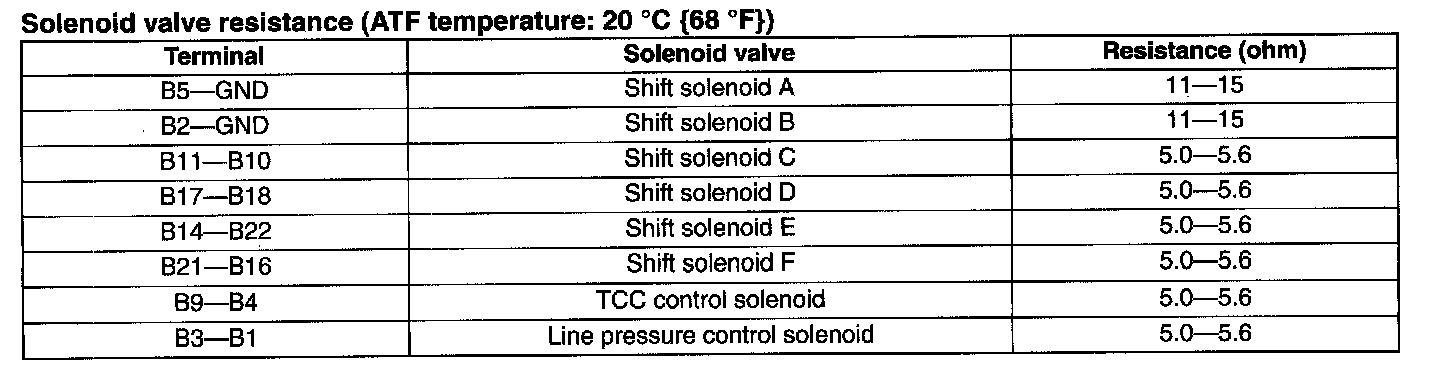

Solenoid Valve Resistance:

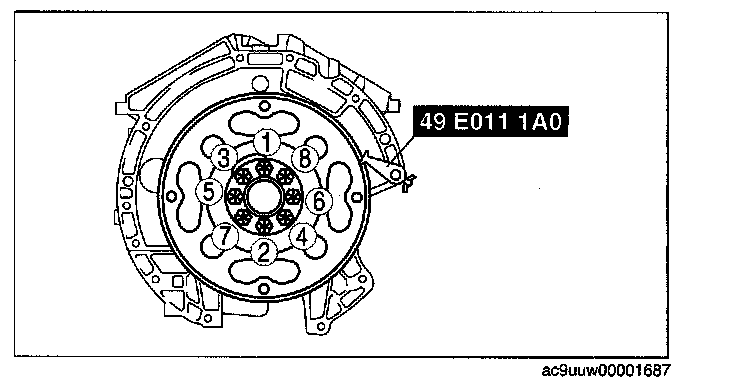

DRIVE PLATE





Tighten the new drive plate mounting bolts in two or three steps in the order shown.
Tightening torque 73 - 87 Nm (7.5 - 8.8 kgf-m, 53.9 - 64.1 ft-lbf)
