Radiator Cooling Fan Control Module: Testing and Inspection

FAN CONTROL MODULE INSPECTION [MZI-3.5]

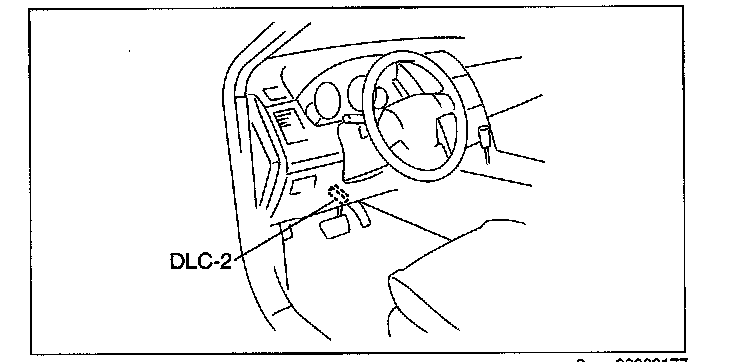

1. Connect the M-MDS to the DLC-2.
2. Start and warm up the engine.
3. Monitor the engine coolant temperature with the M-MDS.

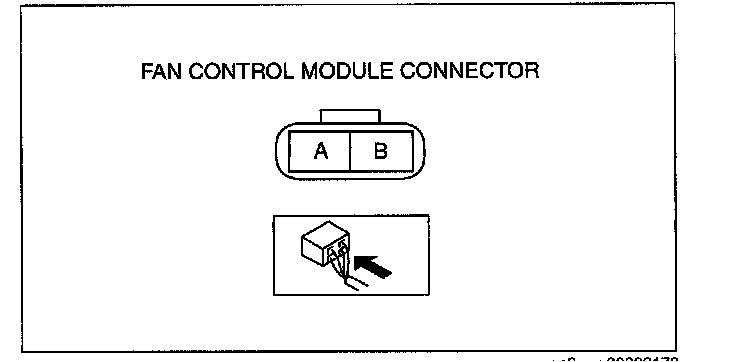

4. Measure the voltage at terminal A of the fan control module connector (2 terminal) as shown in the table.
^ If not within the specification, inspect the input signals from the following parts.
^ Cylinder Head Temperature (CHT) sensor
^ Refrigerant pressure switch (middle)

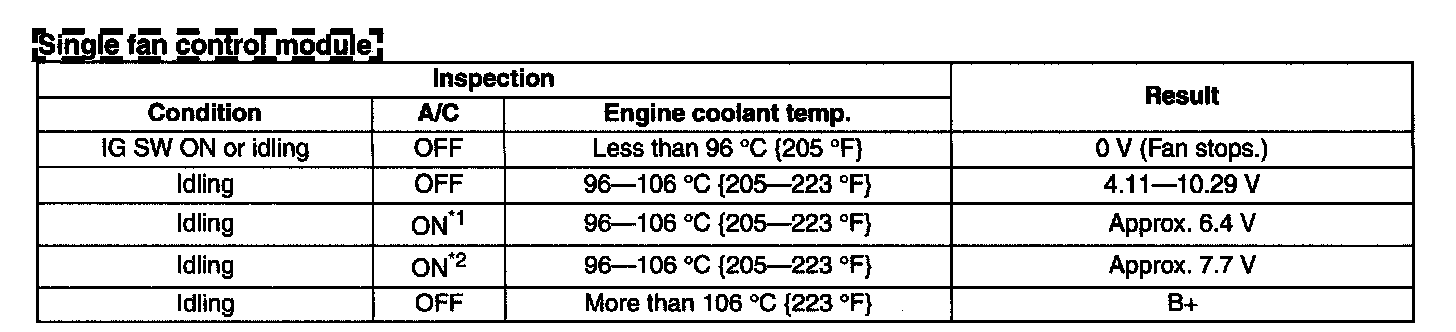

Single Fan Control Module:

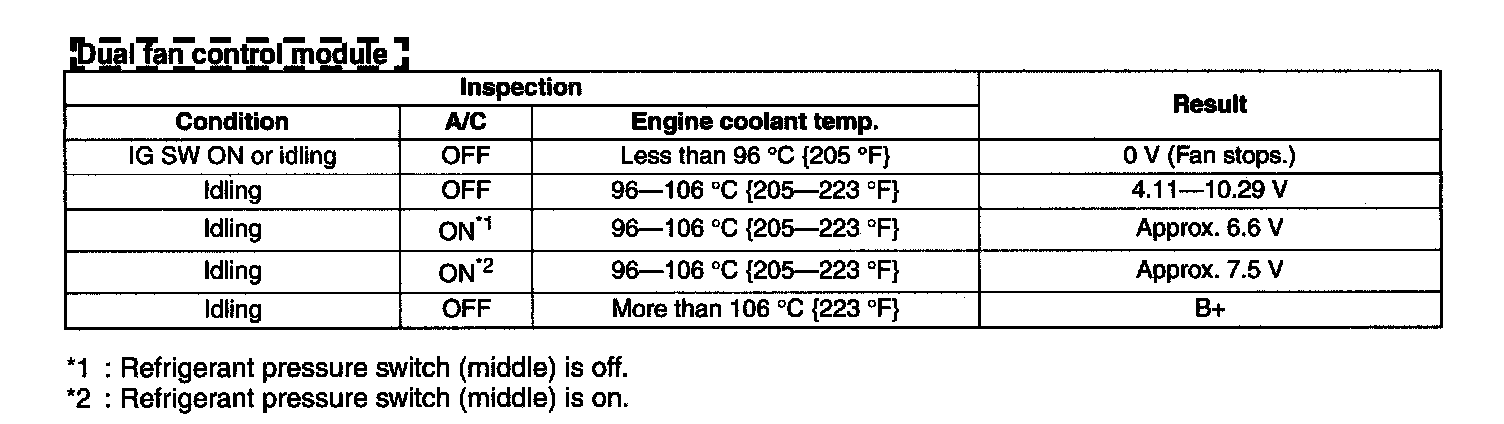

Dual Fan Control Module:

*1 : Refrigerant pressure switch (middle) is off.
*2 : Refrigerant pressure switch (middle) is on.
5. If all the above parts are normal, replace the fan control module.
